Process Thermodynamic Steam Trap Pdf Pdf Valve Hvac Steam trap shall be all stainless steel thermodynamic disc type with connections on a common center line, which will operate in any position. integral seat design with hardened disc and seating surfaces. The flash steam pressure in the steam chamber acting on the top area of the disc, forces it downwards against the pressure of the incoming fluid, closing the inlet and trapping pressure in the steam chamber.

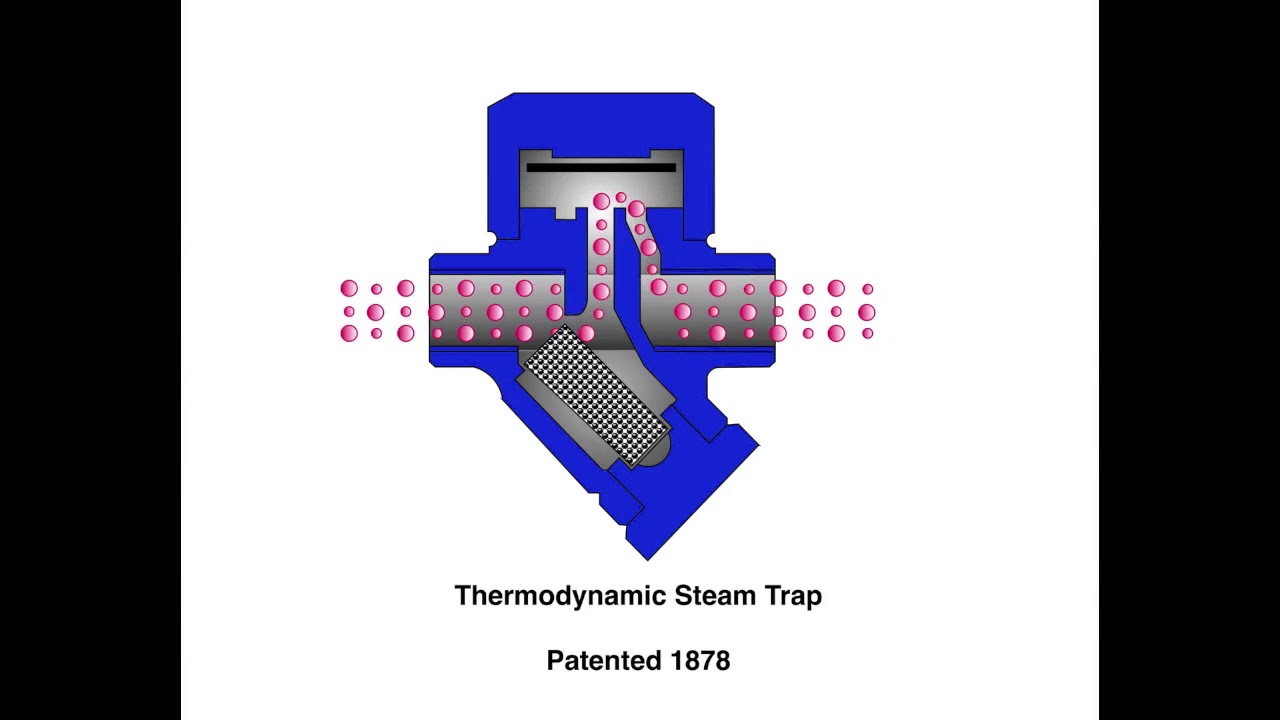

Thermodynamic Steam Trap Pdf Thermodynamic steam trap with replaceable controller unit and cap with heat chamber wich minimize the effects from the weather conditions to the function of the trap such as low ambient temperatures, rain, wind, etc. This manual describes the principle of operation, instructions for installation, operation & maintenance of rifox thermodynamic steam trap rd 321 & rd 323 supplied by thermax ltd. When the steam enters the trap, it passes through the reduced area at the face of the disc, increasing in velocity and, therefore, decreasing in pressure. some of the steam is discharged directly into the outlet stream, but a portion of it passes to a control chamber above the disc. Thermodynamic steam traps are ideal for removal of condensate from steam main lines, moisture separators and are also recommended on critical steam tracing applications. why steam traps ? a steam trap is an automatic valve which closes to trap steam & opens to discharge condensate, air & non condensable gases from the steam system.
Thermodynamic Steam Trap Pdf When the steam enters the trap, it passes through the reduced area at the face of the disc, increasing in velocity and, therefore, decreasing in pressure. some of the steam is discharged directly into the outlet stream, but a portion of it passes to a control chamber above the disc. Thermodynamic steam traps are ideal for removal of condensate from steam main lines, moisture separators and are also recommended on critical steam tracing applications. why steam traps ? a steam trap is an automatic valve which closes to trap steam & opens to discharge condensate, air & non condensable gases from the steam system. The trap shall be thermodynamic lever valve type requiring neither bucket, float, bellows, nor bimetallic element, with stainless steel internals and chrome moly body and bonnet. Thermodynamic traps use only one moving part, the valve disc, which allows condensate to be discharged when present and closes tightly upon the arrival of steam. these traps have an inherently rugged design and are commonly used as drip traps on steam mains and supply lines. Thermodynamic steam trap free download as word doc (.doc .docx), pdf file (.pdf), text file (.txt) or read online for free. Steam traps are devices that automatically discharge condensate and non condensable gases from steam lines and heat exchangers while retaining live steam. they can be located before and or after heat exchange processes, on the main steam header, and along horizontal runs of steam lines.
Ball Float Steam Trap And Thermodynamic Steam Trap Pdf Plumbing The trap shall be thermodynamic lever valve type requiring neither bucket, float, bellows, nor bimetallic element, with stainless steel internals and chrome moly body and bonnet. Thermodynamic traps use only one moving part, the valve disc, which allows condensate to be discharged when present and closes tightly upon the arrival of steam. these traps have an inherently rugged design and are commonly used as drip traps on steam mains and supply lines. Thermodynamic steam trap free download as word doc (.doc .docx), pdf file (.pdf), text file (.txt) or read online for free. Steam traps are devices that automatically discharge condensate and non condensable gases from steam lines and heat exchangers while retaining live steam. they can be located before and or after heat exchange processes, on the main steam header, and along horizontal runs of steam lines.
Steam Trap Pdf Steam Boiler Thermodynamic steam trap free download as word doc (.doc .docx), pdf file (.pdf), text file (.txt) or read online for free. Steam traps are devices that automatically discharge condensate and non condensable gases from steam lines and heat exchangers while retaining live steam. they can be located before and or after heat exchange processes, on the main steam header, and along horizontal runs of steam lines.
