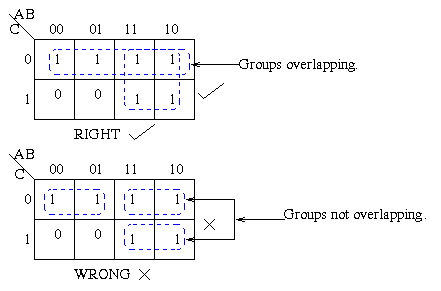

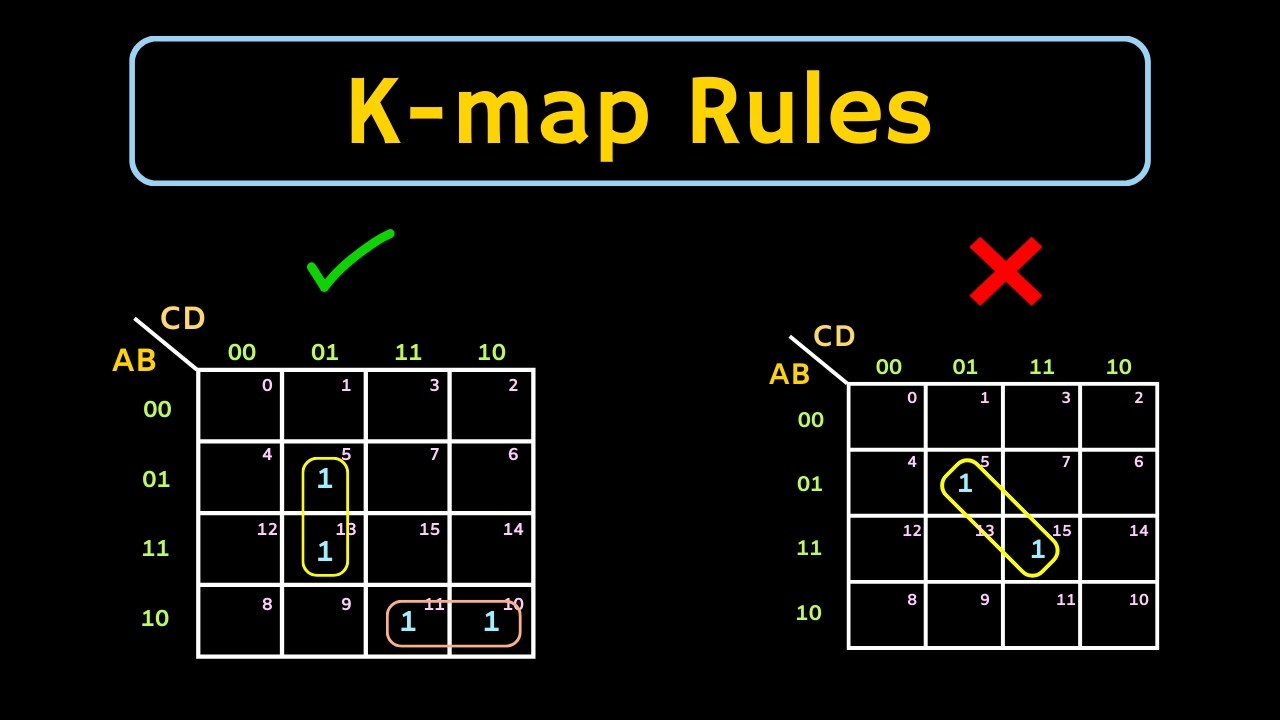

Karnaugh Map Simplification Pdf Theory Of Computation Arithmetic Each cell containing a one must be in at least one group. groups may overlap. groups may wrap around the table. the leftmost cell in a row may be grouped with the rightmost cell and the top cell in a column may be grouped with the bottom cell. there should be as few groups as possible, as long as this does not contradict any of the previous rules. So what is a karnaugh map? a karnaugh map provides a pictorial method of grouping together expressions with common factors and therefore eliminating unwanted variables. the karnaugh map can also be described as a special arrangement of a truth table.
Karnaugh Maps Rules Of Simplification In many digital circuits and practical problems, we need to find expressions with minimum variables. we can minimize boolean expressions of 3, 4 variables very easily using k map without using any boolean algebra theorems. it is a tool which is used in digital logic to simplify boolean expression. We show how to map the product terms of the unsimplified logic to the k map. we illustrate how to identify groups of adjacent cells which leads to a sum of products simplification of the digital logic. Mostly simplification of logic function is done using karnaugh map only. this article will let you know how to simplify the boolean expression using karnaugh maps with some solved examples. The article explains the karnaugh map (k map), a graphical method for simplifying boolean expressions in digital logic design.
Understanding Karnaugh Map Hackatronic Mostly simplification of logic function is done using karnaugh map only. this article will let you know how to simplify the boolean expression using karnaugh maps with some solved examples. The article explains the karnaugh map (k map), a graphical method for simplifying boolean expressions in digital logic design. Karnaugh maps are used to facilitate the simplification of boolean algebra functions. for example, consider the boolean function described by the following truth table. In this blog post, we will explore how karnaugh maps simplify boolean expressions and optimize digital circuits. this guide is not only an in depth introduction to the concept but also provides practical examples, advanced techniques, and best practices that can be applied in real world scenarios. What is karnaugh map (k map)? karnaugh map or k map is a map of a function used in a technique used for minimization or simplification of a boolean expression. it results in less number of logic gates and inputs to be used during the fabrication. 2 variable k map place 1s and 0s from the truth table in the k map. each square of 1s = minterms. minterms in adjacent squares can be combined since they differ in only one variable. use xy’ xy = x.
Solution Karnaugh Map Boolean Expression Simplification Studypool Karnaugh maps are used to facilitate the simplification of boolean algebra functions. for example, consider the boolean function described by the following truth table. In this blog post, we will explore how karnaugh maps simplify boolean expressions and optimize digital circuits. this guide is not only an in depth introduction to the concept but also provides practical examples, advanced techniques, and best practices that can be applied in real world scenarios. What is karnaugh map (k map)? karnaugh map or k map is a map of a function used in a technique used for minimization or simplification of a boolean expression. it results in less number of logic gates and inputs to be used during the fabrication. 2 variable k map place 1s and 0s from the truth table in the k map. each square of 1s = minterms. minterms in adjacent squares can be combined since they differ in only one variable. use xy’ xy = x.
