Testing Directional Overcurrent Relays From Valence Pdf Pdf Relay This paper describes how to test directional overcurrent protection elements. it contains an application example that will be used throughout the paper. the theoretical background of the directional overcurrent protection will be explained. The document discusses testing directional overcurrent relays. it explains that successful tests require the current to be above the pickup setting, in the correct direction, and with a polarizing signal.

Testing Directional Overcurrent Relays From Valence After finishing the test, click on the “present report” icon in the previous figure or using the “ctrl r” command to call up the report pre configuration screen. Now, with traditional overcurrent relays, a directional overcurrent relay can be visualized as a cascade connection of 'one directional unit' and one overcurrent unit. It focuses on directional overcurrent relays, which have three essential parts for successful testing: current above pickup setting, correct direction, and polarizing signal. This paper will provide a brief discussion on past polarization methods on em relays but will highlight newer, more reliable, directional functionality available in microprocessor relays.

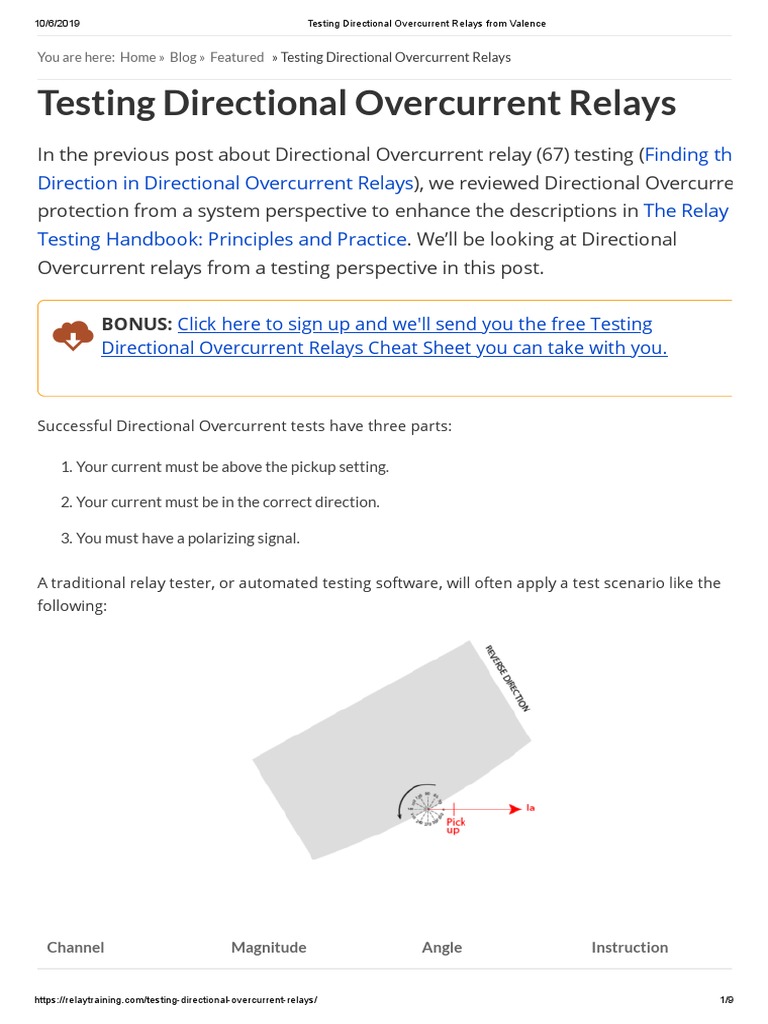

Maintenance And Testing Of Overcurrent Protection Relays Ansi Code 50 51 It focuses on directional overcurrent relays, which have three essential parts for successful testing: current above pickup setting, correct direction, and polarizing signal. This paper will provide a brief discussion on past polarization methods on em relays but will highlight newer, more reliable, directional functionality available in microprocessor relays. We’ll be looking at directional overcurrent relays from a testing perspective in this post. successful directional overcurrent tests have three parts: 1. your current must be above the pickup setting. 2. your current must be in the correct direction. 3. you must have a polarizing signal. It is shown that the influence of considering second zone distance relays and breaker failure relays impose important requirements for the determination of the time dial settings of directional overcurrent relays. This document provides an overview of directional overcurrent relaying and testing directional relays. it discusses the principles of directional relaying including that it determines the direction of fault current flow to protect systems. The present article describes in detail an alternative methodology for determining these settings, based on a characterization of the power system where the directional protection is to be.

Pdf User Defined Dual Setting Directional Overcurrent Relays With We’ll be looking at directional overcurrent relays from a testing perspective in this post. successful directional overcurrent tests have three parts: 1. your current must be above the pickup setting. 2. your current must be in the correct direction. 3. you must have a polarizing signal. It is shown that the influence of considering second zone distance relays and breaker failure relays impose important requirements for the determination of the time dial settings of directional overcurrent relays. This document provides an overview of directional overcurrent relaying and testing directional relays. it discusses the principles of directional relaying including that it determines the direction of fault current flow to protect systems. The present article describes in detail an alternative methodology for determining these settings, based on a characterization of the power system where the directional protection is to be.

Testing Directional Overcurrent Relays Pdf Relay Engineering This document provides an overview of directional overcurrent relaying and testing directional relays. it discusses the principles of directional relaying including that it determines the direction of fault current flow to protect systems. The present article describes in detail an alternative methodology for determining these settings, based on a characterization of the power system where the directional protection is to be.
