Strength Of Materials Engineering Mechanics Stress Strain Graph Pdf To plot stress and strain diagram, nominal stresses are calculated by dividing the loads by the original cross section and the corresponding the stress and strain are plotted on the graph paper by taking strain along x axis and stresses along y axis. Download as a pdf, pptx or view online for free.
Strength Of Materials Engineering Mechanics Stress Strain Graph Pdf Stress strain curves are an extremely important graphical measure of a material’s mechanical properties, and all students of mechanics of materials will encounter them often. In order to exploit the valuable components of mango stone, continuous mechanical equipment for mango stone decortication was designed, developed and evaluated for its performance. In strength of materials, we explore the mechanics of deformable bodies, learning about the effects of both external and internal loads on non rigid bodies in equilibrium. Classify the stresses into various categories and define elastic properties of materials and compute stress and strain intensities caused by applied loads in simple and compound sections and temperature changes.

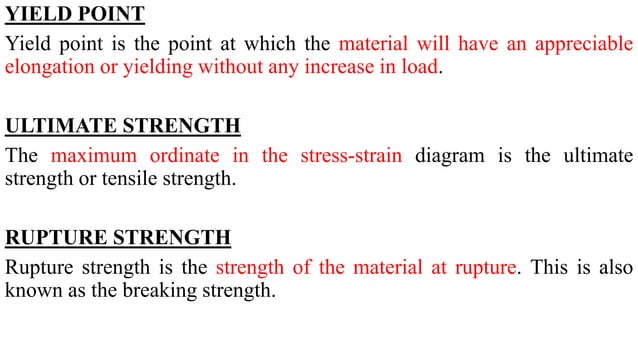

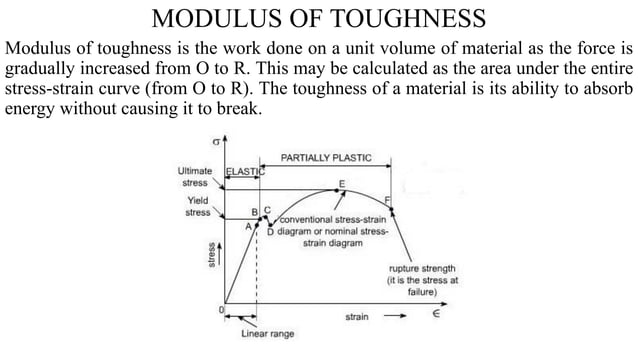

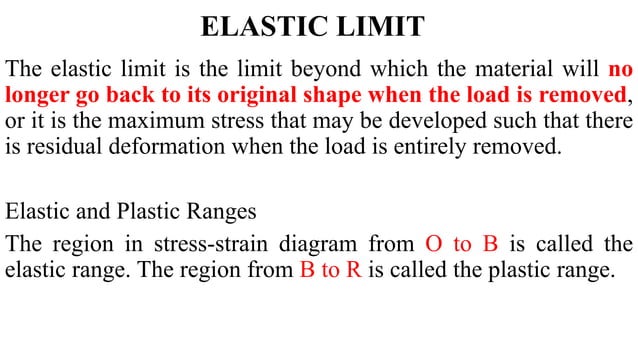

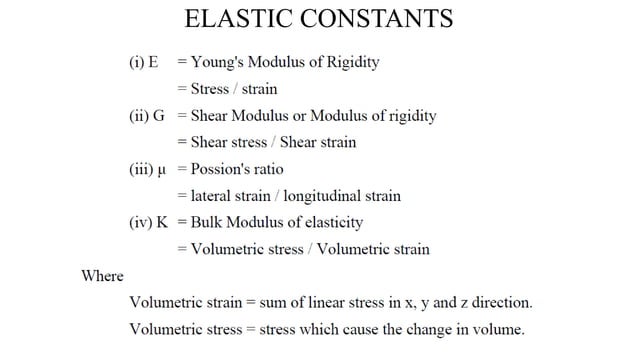

Strength Of Materials Engineering Mechanics Stress Strain Graph Pdf In strength of materials, we explore the mechanics of deformable bodies, learning about the effects of both external and internal loads on non rigid bodies in equilibrium. Classify the stresses into various categories and define elastic properties of materials and compute stress and strain intensities caused by applied loads in simple and compound sections and temperature changes. Assume both the materials to be homogeneous and isotropic and the axial force causes the same amount of uniform stress in both the rods. the stresses developed are within the proportional limit of the respective materials. The stresses and strains that develop within a structural member must be calculated in order to assess its strength, deformations and stability. this requires a complete description of the geometry, constraints, applied loads and the material properties of the member. The graph of these quantities with the stress σ along the y axis and the strain ε along the x axis is called the stress strain diagram. the stress strain diagram differs in form for various materials. The document is a lecture on strength of materials for 2nd year industrial engineering students, focusing on concepts such as stress, strain, and the mechanics of materials.
Strength Of Materials Engineering Mechanics Stress Strain Graph Pdf Assume both the materials to be homogeneous and isotropic and the axial force causes the same amount of uniform stress in both the rods. the stresses developed are within the proportional limit of the respective materials. The stresses and strains that develop within a structural member must be calculated in order to assess its strength, deformations and stability. this requires a complete description of the geometry, constraints, applied loads and the material properties of the member. The graph of these quantities with the stress σ along the y axis and the strain ε along the x axis is called the stress strain diagram. the stress strain diagram differs in form for various materials. The document is a lecture on strength of materials for 2nd year industrial engineering students, focusing on concepts such as stress, strain, and the mechanics of materials.
Strength Of Materials Engineering Mechanics Stress Strain Graph Pdf The graph of these quantities with the stress σ along the y axis and the strain ε along the x axis is called the stress strain diagram. the stress strain diagram differs in form for various materials. The document is a lecture on strength of materials for 2nd year industrial engineering students, focusing on concepts such as stress, strain, and the mechanics of materials.
