Lecture 15 Deformation Of Axially Loaded Members Pdf This document discusses deformation and strain in axially loaded structural members. it defines normal strain and describes how stress strain diagrams are obtained from tensile tests. In this course, we will limit ourselves to axial loaded members that primarily deform in a 1 dimensional manner (ie: change in length). this necessitates that the cross sectional dimensions of the member are small compared to the overall length.
01 Axially Loaded Members Pdf Young S Modulus Deformation Sometimes a structure has more than one axially loaded member. in such cases multiple bars will experience a change in length and the amount of deformation won’t necessarily be the same in each member. It explores various types of axial loading, material properties, and deformation analysis techniques. stress strain diagrams and problem solving methods are also discussed, along with real world applications in structural, mechanical, and aerospace engineering. We’ll look at axial loads and their measurable effects, learn how to calculate deformation using a simple but powerful formula, and see how to handle bars with varying cross sections or materials — a common situation in real world structures. This video is for civil engineering students who are having a hard time understanding strength of materials. this is a raw video and unedited due to time constraints.
Chapter 2 Stress And Strain Of Axially Loaded Members Pdf We’ll look at axial loads and their measurable effects, learn how to calculate deformation using a simple but powerful formula, and see how to handle bars with varying cross sections or materials — a common situation in real world structures. This video is for civil engineering students who are having a hard time understanding strength of materials. this is a raw video and unedited due to time constraints. Engineering lecture notes on axially loaded members, covering stress, strain, hooke's law, deformation, and poisson's ratio with examples. It discusses the deformation of uniform rods using hooke's law, as well as rods with multiple loads or non uniform cross sections. formulas are provided to calculate the deformation based on the loads, lengths, areas, and moduli of the various sections. To use this formula, the load must be axial, the bar must have a uniform cross sectional area, and the stress must not exceed the proportional limit. if however, the cross sectional area is not uniform, the axial deformation can be determined by considering a differential length and applying integration. Using hooke’s law and the definitions of stress and strain, we will now develop an equation that can be used to determine the elastic displacement of a member subjected to axial loads.
Solved Elastic Deformation Of Axially Loaded Members 3 Chegg Engineering lecture notes on axially loaded members, covering stress, strain, hooke's law, deformation, and poisson's ratio with examples. It discusses the deformation of uniform rods using hooke's law, as well as rods with multiple loads or non uniform cross sections. formulas are provided to calculate the deformation based on the loads, lengths, areas, and moduli of the various sections. To use this formula, the load must be axial, the bar must have a uniform cross sectional area, and the stress must not exceed the proportional limit. if however, the cross sectional area is not uniform, the axial deformation can be determined by considering a differential length and applying integration. Using hooke’s law and the definitions of stress and strain, we will now develop an equation that can be used to determine the elastic displacement of a member subjected to axial loads.
Solved Hw 1 ï Axially Loaded Membersfor The Problems Given Chegg To use this formula, the load must be axial, the bar must have a uniform cross sectional area, and the stress must not exceed the proportional limit. if however, the cross sectional area is not uniform, the axial deformation can be determined by considering a differential length and applying integration. Using hooke’s law and the definitions of stress and strain, we will now develop an equation that can be used to determine the elastic displacement of a member subjected to axial loads.

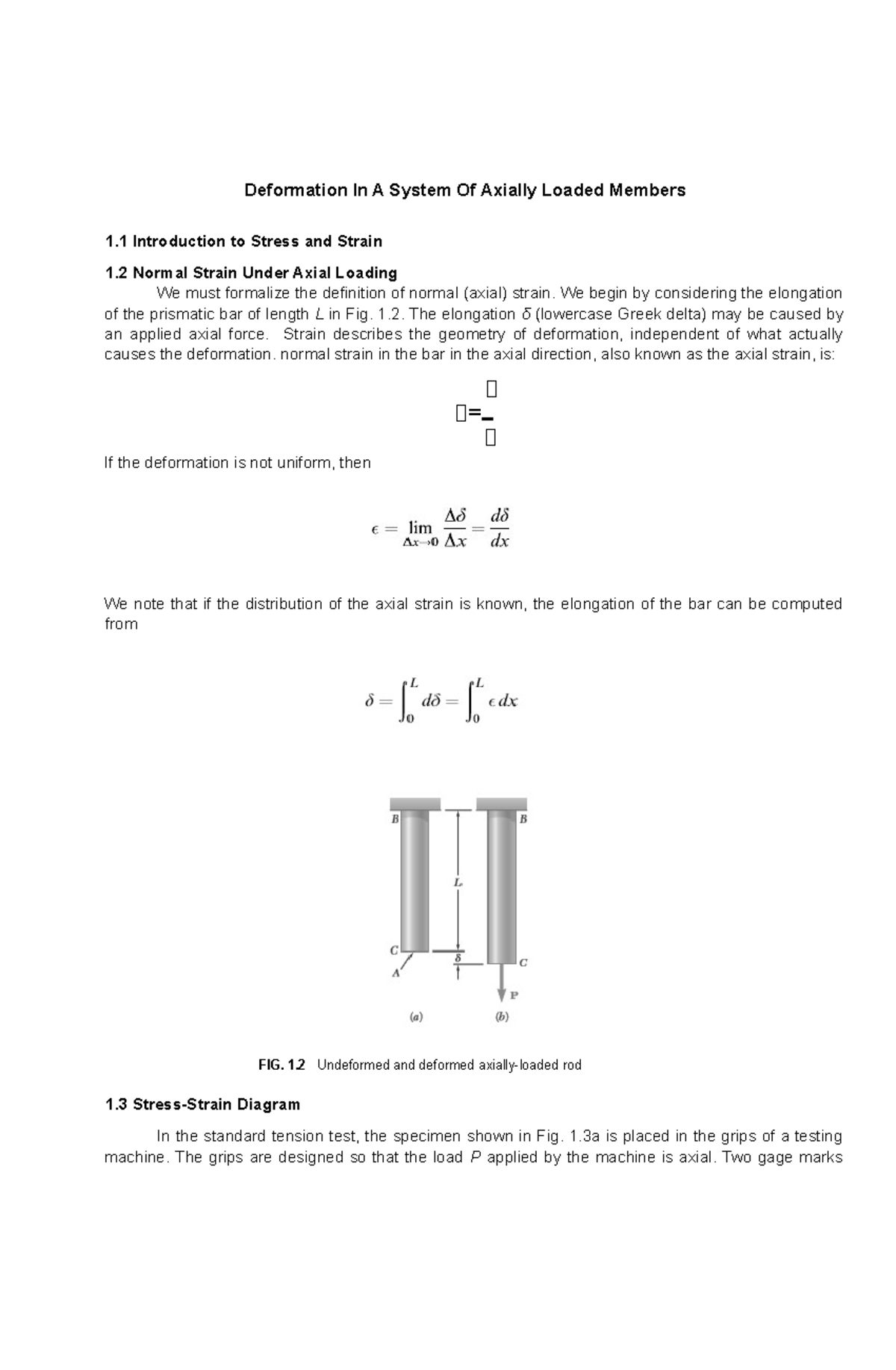

Deformation In A System Of Axially Loaded Members We Begin By
