Steam Condenser Cooling Tower Pptx This document provides an overview of condensers and cooling towers used in steam power plants. it discusses the different types of condensers including jet condensers, surface condensers, and evaporative condensers. The minimum absolute pressure (also called as ideal pressure) at the steam inlet of a condenser is the pressure corresponding to the temperature of the condensed steam.

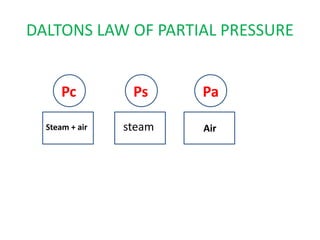

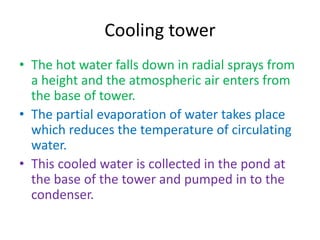

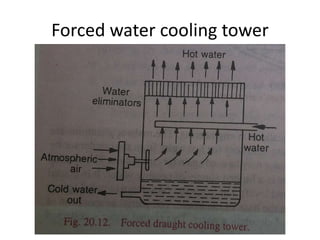

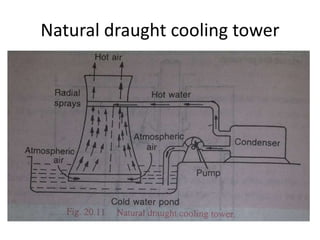

Steam Condenser Cooling Tower Pptx Condenser lect free download as powerpoint presentation (.ppt .pptx), pdf file (.pdf), text file (.txt) or view presentation slides online. this document discusses steam condensers, dalton's law of partial pressures, and cooling towers. The heat transfer device in which the exhaust steam of a turbine or an engine is condensed by means of cooling water at pressure below atmospheric, is called steam condenser. The hot water is cooled by evaporative cooling in which heat is rejected to the atmospheric air. the use of cooling tower becomes essential when there is shortage of cooling water, and it has to be used over and over again in the condenser. Steam condensers condenser is a heat transfer device in which the exhaust steam of a turbine is condensed by means of cooling water at pressure below atmospheric pressure.

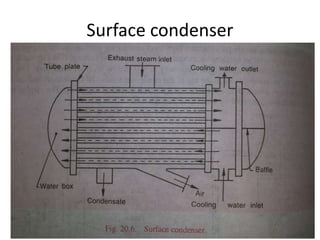

Steam Condenser Cooling Tower Pptx The hot water is cooled by evaporative cooling in which heat is rejected to the atmospheric air. the use of cooling tower becomes essential when there is shortage of cooling water, and it has to be used over and over again in the condenser. Steam condensers condenser is a heat transfer device in which the exhaust steam of a turbine is condensed by means of cooling water at pressure below atmospheric pressure. In surface condensers, the exhaust steam and water do not come into direct contact. the steam passes over the outer surface of tubes through which a supply of cooling water is maintained. “in addition to the electric energy savings, this chiller plant will have prevented the emissions of 1.1 million lb of co2 per year, 8,800 lb of so2 per year, and 3,100 lb of nox per year. 6.1 introduction to all power plants. in this cycle, water is heated in the steam generator to produce higher temperature an high pressure steam. this steam is then expanded in a tur ine to produce power. the steam from the turbine is then condensed back into w ter in the condenser. the pump then returns the water t. The research focuses on the operational mechanisms and components of steam power plants, specifically discussing air draught systems including natural, mechanical, and balanced draught systems, as well as different types and functions of air preheaters and cooling towers.
Steam Condenser Cooling Tower Pptx In surface condensers, the exhaust steam and water do not come into direct contact. the steam passes over the outer surface of tubes through which a supply of cooling water is maintained. “in addition to the electric energy savings, this chiller plant will have prevented the emissions of 1.1 million lb of co2 per year, 8,800 lb of so2 per year, and 3,100 lb of nox per year. 6.1 introduction to all power plants. in this cycle, water is heated in the steam generator to produce higher temperature an high pressure steam. this steam is then expanded in a tur ine to produce power. the steam from the turbine is then condensed back into w ter in the condenser. the pump then returns the water t. The research focuses on the operational mechanisms and components of steam power plants, specifically discussing air draught systems including natural, mechanical, and balanced draught systems, as well as different types and functions of air preheaters and cooling towers.
Steam Condenser Cooling Tower Pptx 6.1 introduction to all power plants. in this cycle, water is heated in the steam generator to produce higher temperature an high pressure steam. this steam is then expanded in a tur ine to produce power. the steam from the turbine is then condensed back into w ter in the condenser. the pump then returns the water t. The research focuses on the operational mechanisms and components of steam power plants, specifically discussing air draught systems including natural, mechanical, and balanced draught systems, as well as different types and functions of air preheaters and cooling towers.
