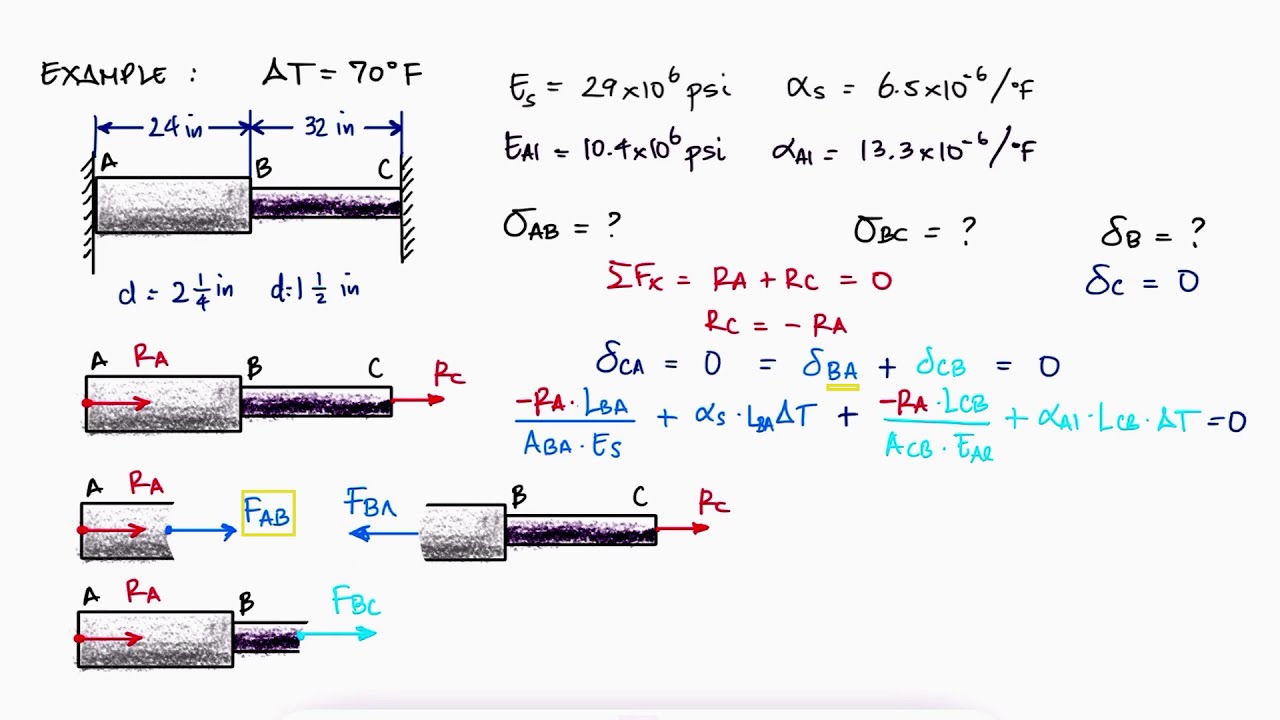

Statically Indeterminate Structures Pdf Truss Structural Engineering Do not use the superposition method instead do this! statically indeterminate problems. 0:00 statically indeterminate definition more. Statically indeterminate axial loading problems occur when there are more unknown forces than equilibrium equations. these situations require additional compatibility equations to solve, considering how connected parts deform together.
Es 103 Module 5 Statically Indeterminate Structures Pdf • when the equations of equilibrium alone are not sufficient for the determination of axial forces in the members and the reactions at the supports, such type of systems are called statically indeterminate structures. This document contains 20 statically indeterminate mechanics of materials problems involving axial loading of beams, rods, and structural elements. Master statically indeterminate problems in axial loading. determine internal forces and reactions in rod tube systems and restrained bars using equilibrium and deformation compatibility equations. Compatibility equation: how is the elongation of each element related? remember to pay attention to what the problem asks for!.
Statically Indeterminate Axial Loading S B A Invent Master statically indeterminate problems in axial loading. determine internal forces and reactions in rod tube systems and restrained bars using equilibrium and deformation compatibility equations. Compatibility equation: how is the elongation of each element related? remember to pay attention to what the problem asks for!. It is also possible to solve statically indeterminate problems by writing the compatibility equation using the superposition of the forces acting on the free body diagram. this method of solution is often referred to as the flexibility or force method of analysis. Ibrium equations and conditions that are discussed in statics. a structural system is termed statically indeterminate when there are more unknown external reactions. Explore a comprehensive set of problems on statically indeterminate structures, focusing on stress calculations in steel, concrete, and timber under axial. Use a very similar approach when solving statically indeterminate systems. objective: compute internal forces in bars and displacements of joints.
Statically Indeterminate Problem Axial Deformation Fusion Of It is also possible to solve statically indeterminate problems by writing the compatibility equation using the superposition of the forces acting on the free body diagram. this method of solution is often referred to as the flexibility or force method of analysis. Ibrium equations and conditions that are discussed in statics. a structural system is termed statically indeterminate when there are more unknown external reactions. Explore a comprehensive set of problems on statically indeterminate structures, focusing on stress calculations in steel, concrete, and timber under axial. Use a very similar approach when solving statically indeterminate systems. objective: compute internal forces in bars and displacements of joints.
Solved Problem 3 Statically Indeterminate Thermal Axial Chegg Explore a comprehensive set of problems on statically indeterminate structures, focusing on stress calculations in steel, concrete, and timber under axial. Use a very similar approach when solving statically indeterminate systems. objective: compute internal forces in bars and displacements of joints.
