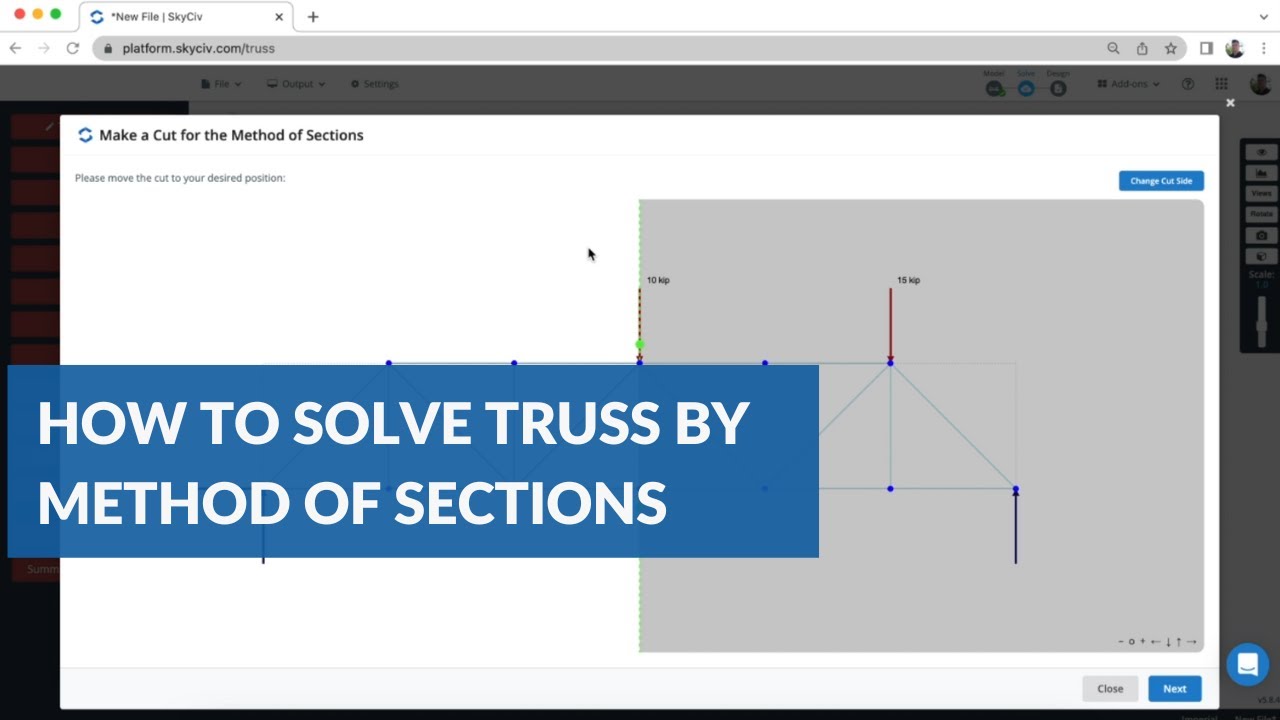

Solving Truss By Method Of Sections Skyciv Engineering In this tutorial we will explore the benefits of using method of sections to solve your truss structure and how to solve a truss structure using this method. In this video, sam will walk you through solving truss using the method by sections. the method of sections is used to solve larger truss structures in a fast, simple manner.

Solving Truss By Method Of Sections Skyciv Engineering Skyciv 2d truss also comes with full hand calculation features which clearly show the step by step calculations for both the method of joints and the method of sections. In the context of truss analysis, explain how solving for a member's force using the method of sections can indicate whether the member is under tension or compression. Truss hand calculations via the method of joints and method of sections are available in the results section of skyciv truss. reaction forces will first be attempted by analyzing the free body diagram (fbd) of the overall structure. Draw a free body diagram (fbd) of the entire truss cut loose from its supports and find the support reactions using the equations of equilibrium (we will see that for some truss structures this step is not always necessary).

Solving Truss By Method Of Sections Skyciv Engineering Truss hand calculations via the method of joints and method of sections are available in the results section of skyciv truss. reaction forces will first be attempted by analyzing the free body diagram (fbd) of the overall structure. Draw a free body diagram (fbd) of the entire truss cut loose from its supports and find the support reactions using the equations of equilibrium (we will see that for some truss structures this step is not always necessary). Here is a detailed explanation: the method of sections is a process used to solve for the unknown forces acting on members of a truss. the method involves breaking the truss down into individual sections and analyzing each section as a separate rigid body. The method of sections is a process used to solve for the unknown forces acting on members of a truss. the method involves breaking the truss down into individual sections and analyzing each section as a separate rigid body. The method of sections is used to solve for the unknown forces within specific members of a truss without solving for them all. the method involves dividing the truss into sections by cutting through the selected members and analyzing the section as a rigid body. The method of sections is used to solve larger truss structures in a fast and simple manner. it involves taking a ‘cut’ through a number of members to evaluate their axial forces and use.
