Solved Problems Stress Strain Diagram Pdf The stress strain diagram of a material is shown in the figure below. calculate modulus of elasticity, modulus of resilience and modulus of toughness of the material. This document provides two example problems for plotting stress strain diagrams and determining mechanical properties from tensile test data. the first problem provides tensile test data for a mild steel rod, including load and elongation values.
Solved The Stress Strain Diagram Of A Material Is Shown In Chegg Plot the stress strain diagram and determine the following mechanical properties: (a) proportional limits; (b) modulus of elasticity; (c) yield point; (d) ultimate strength; and (e) rupture strength. Question: the stress strain diagram of a material is shown in the figure. it is a bilinear stress strain curve. in the figure, the dot is corresponding to the elastic limit while the crossdenotes failure point. Consider the tensile stress strain diagram shown below. answer the following questions, and consider each part as a separate question that has no relationship to the others. Analyse the given stress strain diagram and recognise the sections that denote the lower yield point, plastic deformation region, and the upper yield point.

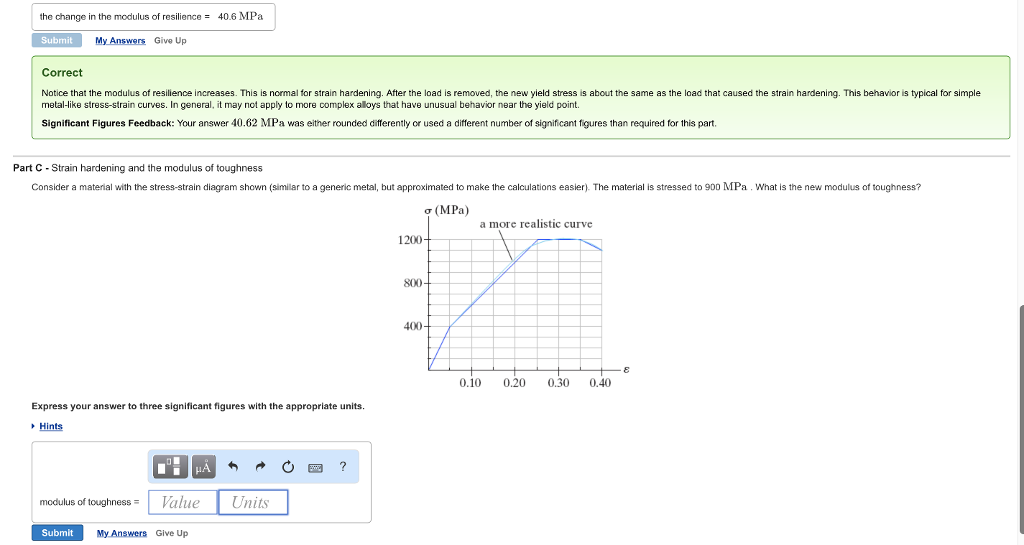

Solved Consider The Material With The Stress Strain Diagram Chegg Consider the tensile stress strain diagram shown below. answer the following questions, and consider each part as a separate question that has no relationship to the others. Analyse the given stress strain diagram and recognise the sections that denote the lower yield point, plastic deformation region, and the upper yield point. The two bars are made of a material that has the stress strain diagram shown. if the cross sectional area of bar $a b$ is 1.5 in $^ {2}$ and $b c$ is 4 in $^ {2}$, determine the largest force $p$ that can be supported before any member fractures. The stress strain diagram for a material can be approximated by the two line segments shown in (figure 1). a bar having a diameter of 9 0 mm and a length of 1. 2 m is made from this material. The stress strain diagram is a graphical representation of the relationship between the applied stress and the resulting strain in a material. it provides valuable insight into the mechanical behavior of the material, including its strength, ductility, and elastic properties. The stress strain diagram is a fundamental tool in material science and mechanical engineering that illustrates how a material responds to applied stress, showing the relationship between stress (force per unit area) and strain (relative deformation).
Refer To The Stress Vs ï Strain Diagram Shown Chegg The two bars are made of a material that has the stress strain diagram shown. if the cross sectional area of bar $a b$ is 1.5 in $^ {2}$ and $b c$ is 4 in $^ {2}$, determine the largest force $p$ that can be supported before any member fractures. The stress strain diagram for a material can be approximated by the two line segments shown in (figure 1). a bar having a diameter of 9 0 mm and a length of 1. 2 m is made from this material. The stress strain diagram is a graphical representation of the relationship between the applied stress and the resulting strain in a material. it provides valuable insight into the mechanical behavior of the material, including its strength, ductility, and elastic properties. The stress strain diagram is a fundamental tool in material science and mechanical engineering that illustrates how a material responds to applied stress, showing the relationship between stress (force per unit area) and strain (relative deformation).
Solved Consider A Material With The Stress Strain Diagram Chegg The stress strain diagram is a graphical representation of the relationship between the applied stress and the resulting strain in a material. it provides valuable insight into the mechanical behavior of the material, including its strength, ductility, and elastic properties. The stress strain diagram is a fundamental tool in material science and mechanical engineering that illustrates how a material responds to applied stress, showing the relationship between stress (force per unit area) and strain (relative deformation).

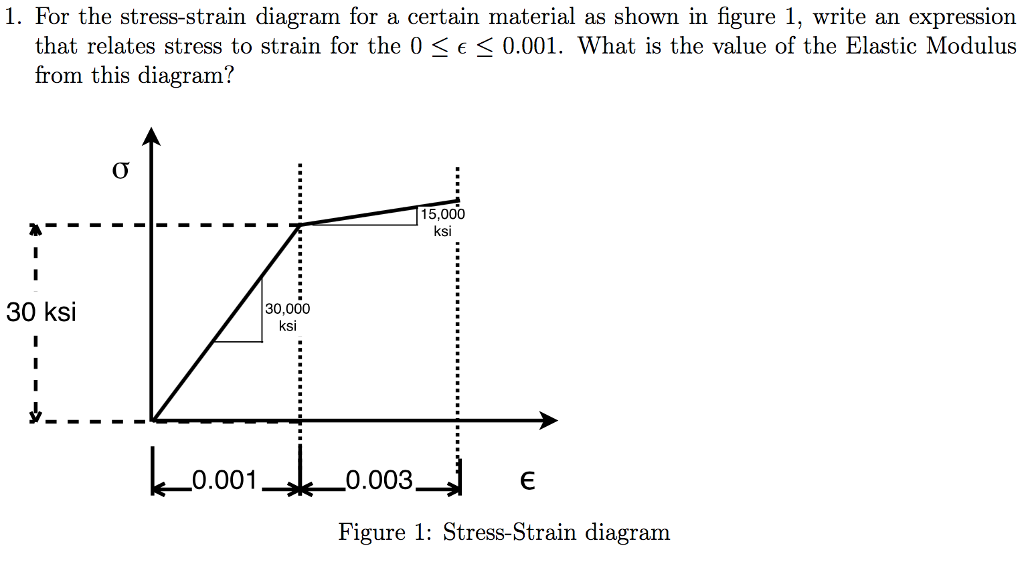

Solved For The Stress Strain Diagram For A Certain Material Chegg
