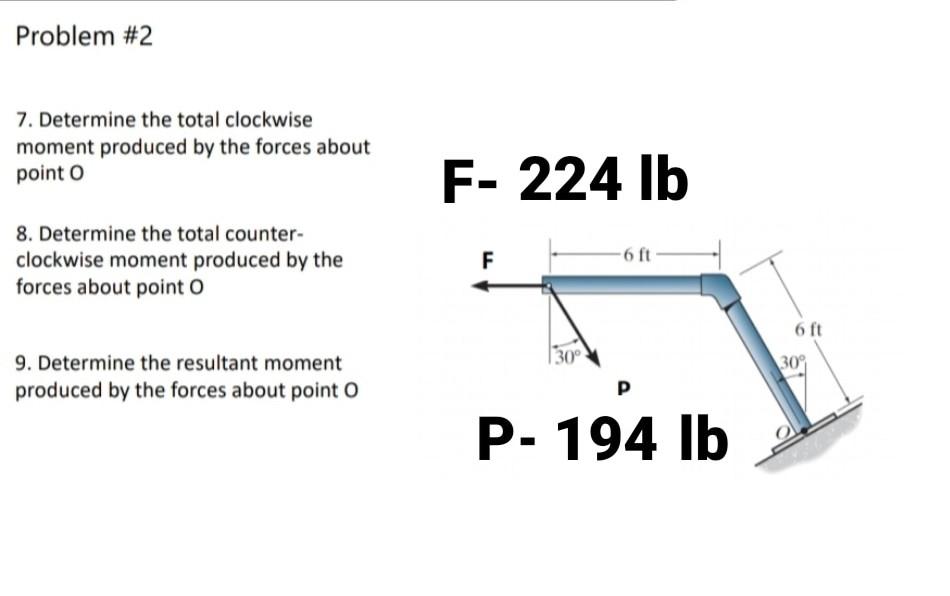

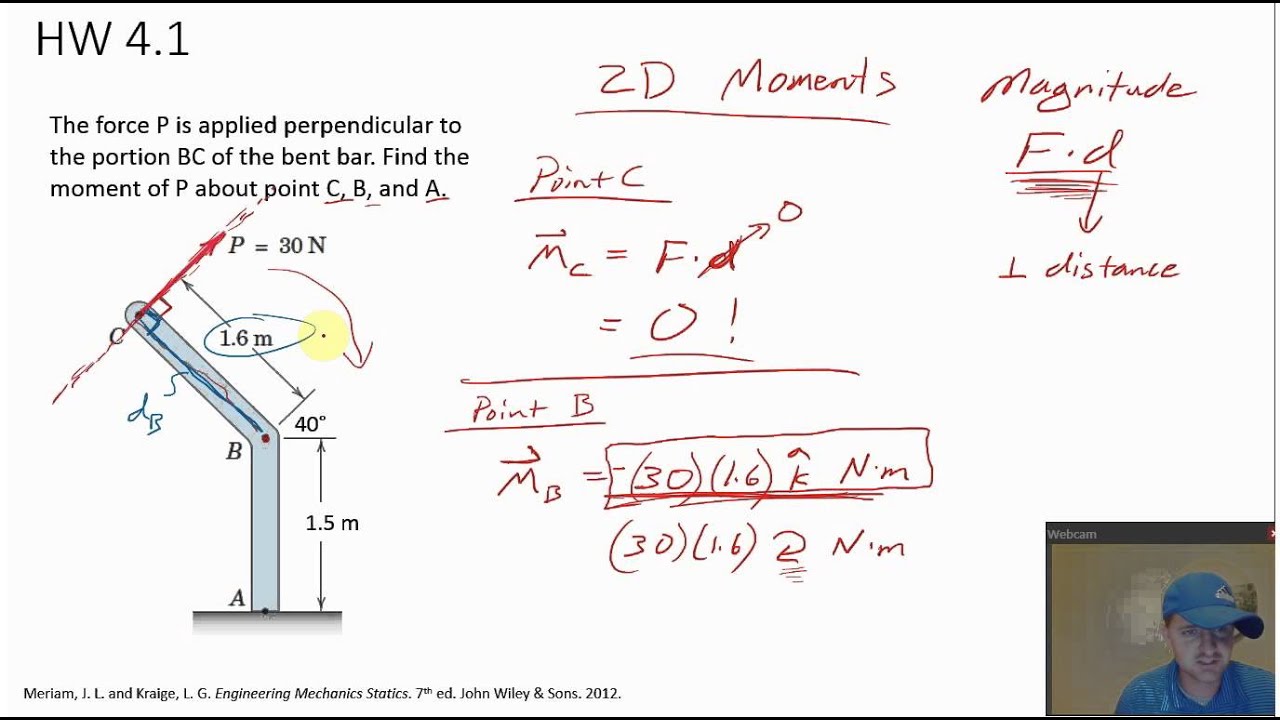

Solved Problem 2 7 Determine The Total Clockwise Moment Produced By Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. see answer. It includes examples of resolving forces into horizontal and vertical components, determining cable tensions, finding scalar and vector force components, calculating resultants using the parallelogram law and trigonometry, and determining moments about points using the principle of moments.
Solved Problem 2 7 Determine The Total Clockwise Moment Chegg Minus sign indicates that the moment of force rotates rod clockwise. plus sign indicates that the moment of force rotates rod counterclockwise. Calculate the resultant moment about point o.resultant moment = m600 m500 m300 = 1800 nm 883.9 nm 530.34 nm = 2153.56 nm round the final answer to the nearest whole number.resultant moment ≈ 2154 nm (clockwise). Resultant moment: the resultant moment is the algebraic sum of the moments produced by all forces about the point. decomposition of forces: we need to decompose f1 into its horizontal and vertical components to calculate the moment it produces about point o. Determine the resultant of the three forces acting on the dam shown in fig. 3.10.15 and locate its intersection with the base ab. for a good design, this intersection should occur within the middle third of the base.

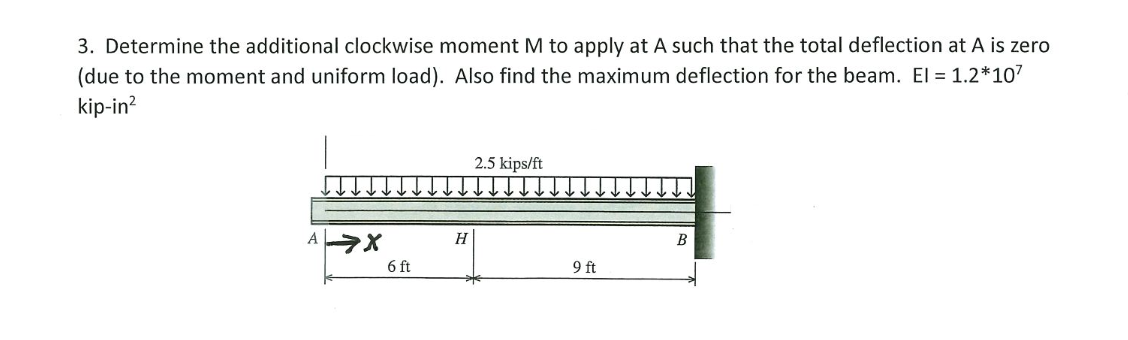

Solved 3 Determine The Additional Clockwise Moment M To Chegg Resultant moment: the resultant moment is the algebraic sum of the moments produced by all forces about the point. decomposition of forces: we need to decompose f1 into its horizontal and vertical components to calculate the moment it produces about point o. Determine the resultant of the three forces acting on the dam shown in fig. 3.10.15 and locate its intersection with the base ab. for a good design, this intersection should occur within the middle third of the base. Determine the moment produced by each force, f1and f2 , about the nut’s axis, passing through point o. Each force's moment is calculated as m = f ×d⊥, where d⊥ is the perpendicular distance from o to the force's line of action. the direction (clockwise or counterclockwise) is determined by the right hand rule. Determine the required mass of the counterweight $c$ so that the resultant moment produced by the load and the weight of the tower crane jibs about point $a$ is zero. If several couples (couples of forces) act on a body (fig. 3.25), the couple moments can be added together to determine the resultant couple moment. since the couple moments are free vectors (independent of location), their resultant is also a free vector.
