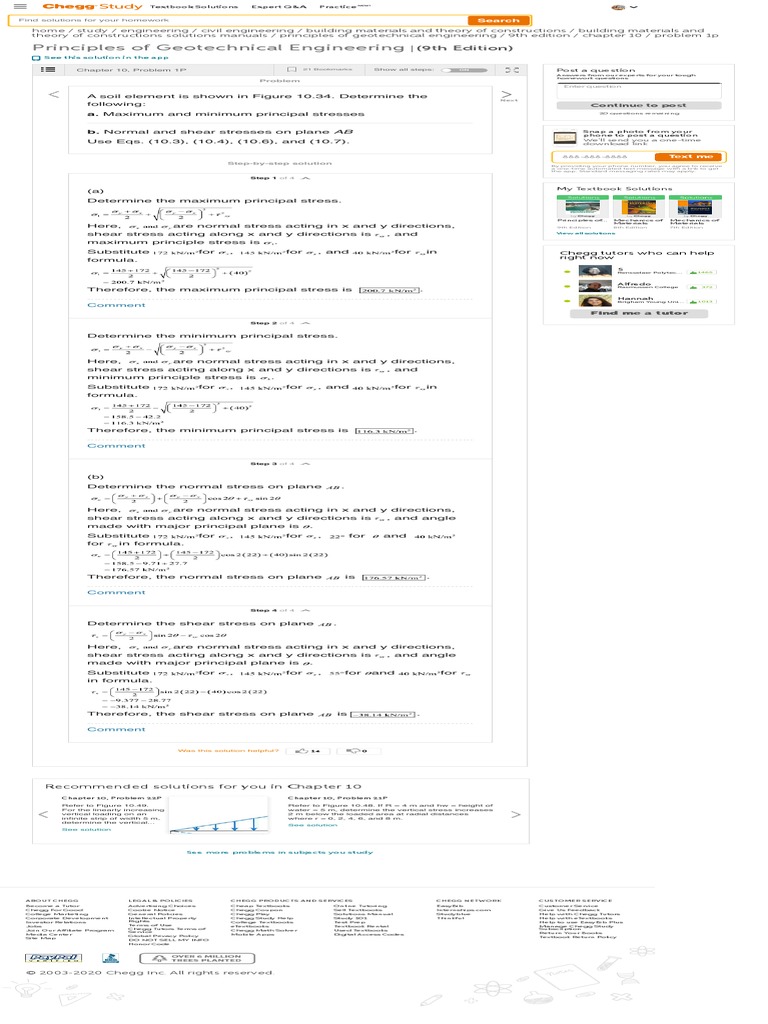

Solved A Soil Element Is Shown In Figure 10 34 Determine The Pdf Here’s the best way to solve it. to start, consider a standard soil element with given normal and shear stresses, and identify the given stresses as σ x = 50 kn m 2, σ y = 75 kn m 2, and τ x y = 30 kn m 2. problem 1. a soil element is shown in figure 1. It shows the work to solve problem 5p from chapter 10, which involves using the pole method to determine principal stresses and normal shear stresses on specific planes for a given soil element.

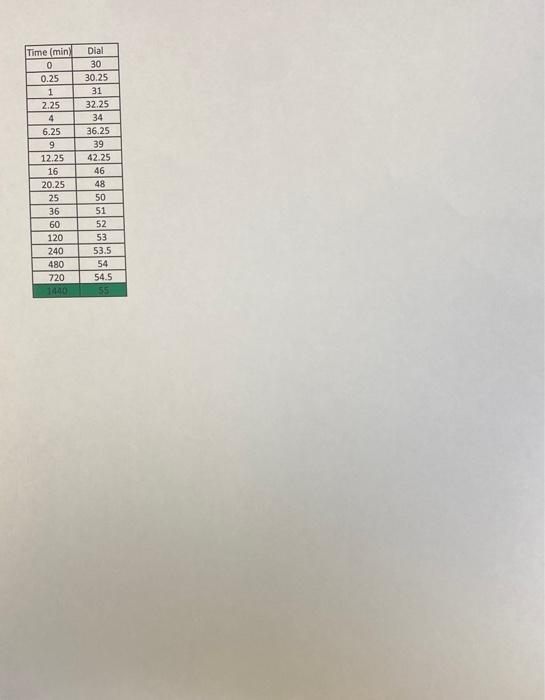

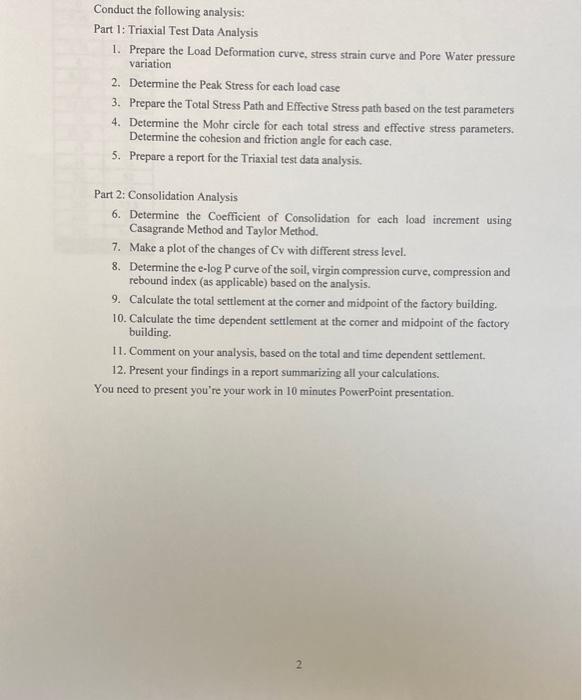

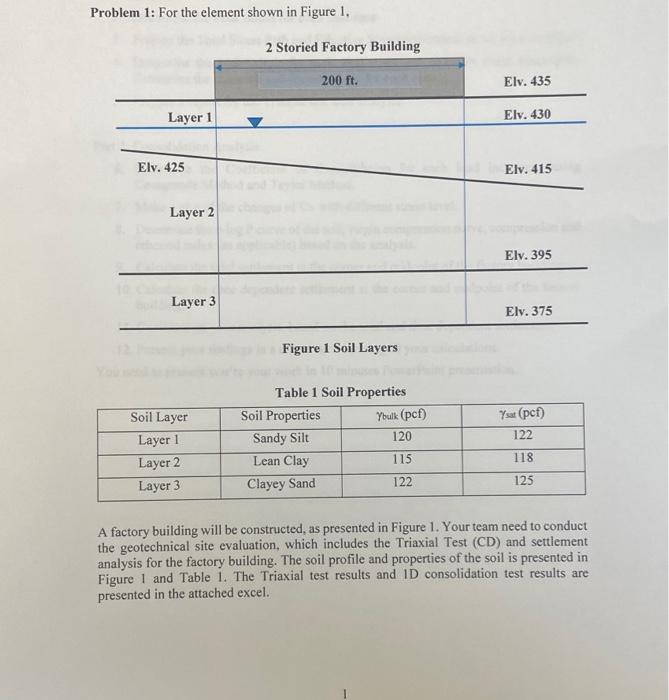

Problem 1 For The Element Shown In Figure 1 Figure Chegg To solve the problem of determining the maximum and minimum principal stresses, as well as the normal and shear stresses on the plane ab using the pole method, we will follow a systematic approach. At the first step, concrete is casted to form the trapezoidal gravity wall as shown in stage i (upper diagram).the water table is 5 m below the ground level. during the second stage, stage ii, material is removed via excavation (to get the lower diagram, with water remaining at the same level). Accurate calculation of principal stresses and shear stresses is essential for designing safe and effective soil structures. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on.

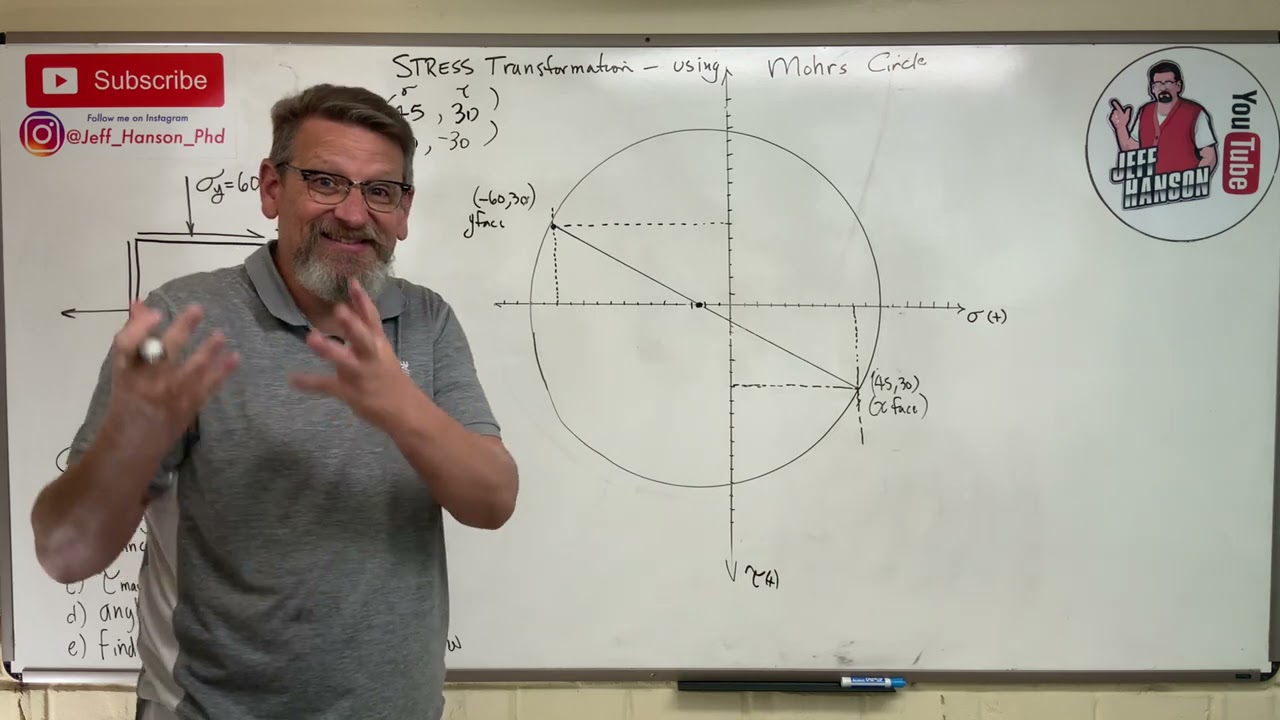

Problem 1 For The Element Shown In Figure 1 Figure Chegg Accurate calculation of principal stresses and shear stresses is essential for designing safe and effective soil structures. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. A soil element is shown in figure. using the mohr's circle concept, draw the mohr's circle indicating the given data and determine the following: a.) major and minor principal stresses and the inclination of the principal planes. b.) maximum shear stress c.) the normal and shear stresses on plane ab. d.) check your answers using the equations.

Problem 1 For The Element Shown In Figure 1 Figure Chegg Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. A soil element is shown in figure. using the mohr's circle concept, draw the mohr's circle indicating the given data and determine the following: a.) major and minor principal stresses and the inclination of the principal planes. b.) maximum shear stress c.) the normal and shear stresses on plane ab. d.) check your answers using the equations.
