Solved Printing Layers Autodesk Community Is it possible to change cad settings to print layers that are switched off? it would be great for large background images (such as ortophoto or maps) that are neccesary in the final drawings but make working in the model difficult. Start by saving the layer states within the layer dialog box. then, through the viewport, turn all on, thaw all, and the same for the vpfreeze, etc. easiest way is to ctrl a which would select all, then pick the icons to turn them on. try a print preview and see if your layers print now.
Printer Autodesk Community Gallery Find answers to autocad printing layers from the expert community at experts exchange. Set printing preferences: inside the layer properties, ensure that the layer is set to print. look for any attributes that may prevent printing and adjust them, if necessary. In this video, i’ll walk you through a simple step by step solution to ensure all block layers are visible and properly printed from your layouts. Occlude objects, but not actually print; half what i want it to do. if the layers are frozen, it's fine, none of the objects print or occlude. is there a way to stop "off" layers occluding items? cheers.

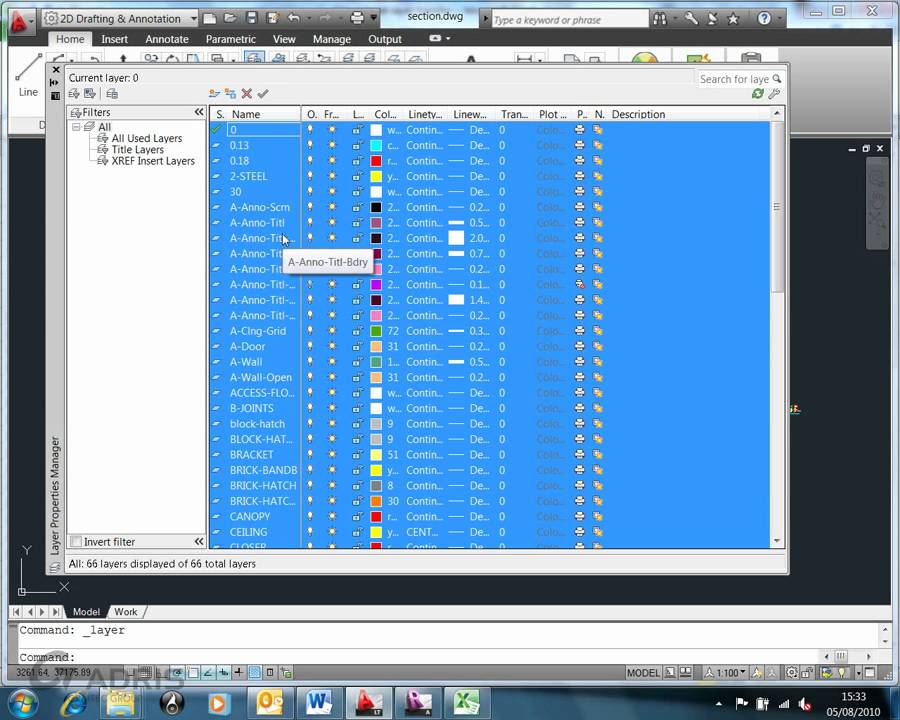

Solved Layers Printing Issue Autodesk Community In this video, i’ll walk you through a simple step by step solution to ensure all block layers are visible and properly printed from your layouts. Occlude objects, but not actually print; half what i want it to do. if the layers are frozen, it's fine, none of the objects print or occlude. is there a way to stop "off" layers occluding items? cheers. Subscribed 3 5.3k views 15 years ago this video will show you how to print layers from autocad more. When printing dwg files exported from inventor, objects, dimensions, or text that use a specific layer are printed lighter than expected. this issue does not occur when saving or plotting as pdf files. Users reported that when plotting from autocad products, some drawing objects do not appear or are incorrect in the preview or plot. this can occur with lines, notes, parts of blocks or external references (xrefs) and when exporting or publishing to pdf or hard copy. Here's a picture of what i want to print in cura, i just need those layers and then i'll glue them to the other print. but i don't think there is an option to print that part of the model in cura.
