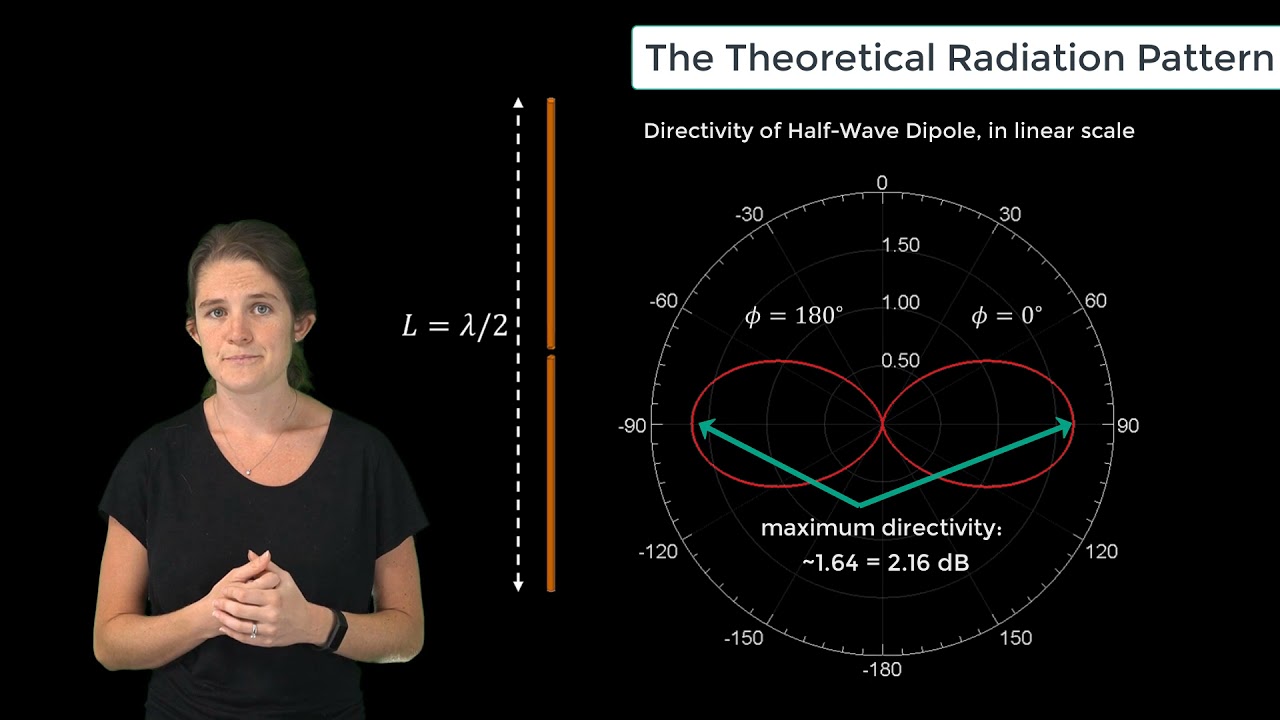

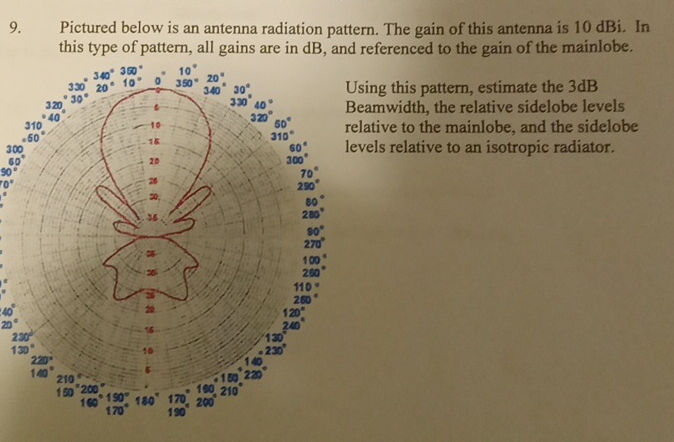

Solved Pictured Below Is An Antenna Radiation Pattern The Chegg Pictured below is an antenna radiation pattern. the gain of this antenna is 10dbi. in this type of pattern, all gains are in db, and referenced to the gain of the mainlobe. your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Using this pattern, estimate the 3db beamwidth, the relative sidelobe levels relative to the mainlobe, and the sidelobe levels relative to an isotropic radiator.

Solved Antenna Radiation Pattern Calculation Antenna Radi Chegg
Solved Antenna Radiation Pattern Calculation Antenna Radi Chegg

Solved Antenna Radiation Pattern Calculation Antenna Radi Chegg This document contains a sheet of solutions to problems related to antennas and wave propagation. it includes solutions to 6 problems involving concepts like directivity, gain, polarization, radiation patterns, and directivity calculations. This document addresses various problems related to antenna theory, including calculations of radiation resistance, electric and magnetic field intensities, and power received by antennas. it explores unidirectional and bidirectional radiation patterns, directivity, and effective aperture of antennas, providing detailed solutions and equations relevant to antenna performance in free space. One of the very useful graphs for analyzing and comparing different antennas is the radiation pattern graph. a simplified example of a radiation pattern is shown in figure 5.13. the antenna itself is placed at the center of the graph and the antenna gain is measured at various angles. In this section, we introduce the concept of directivity and the related concepts of maximum directivity and antenna gain. consider an antenna located at the origin. the power radiated in a single direction (θ, ϕ) is formally zero.

Solved 2 For The Given Antenna Radiation Pattern What Is Chegg
Solved 2 For The Given Antenna Radiation Pattern What Is Chegg

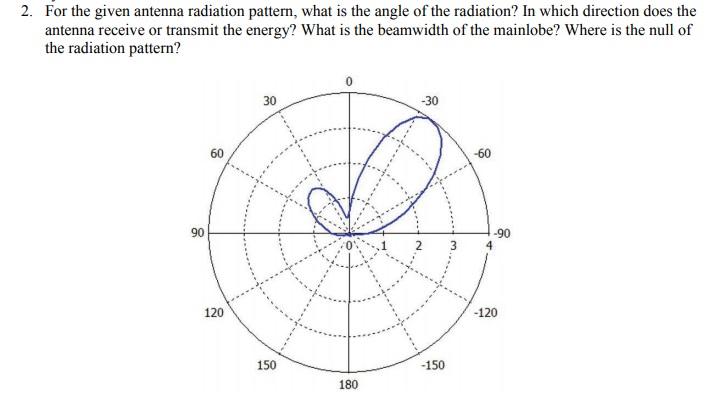

Solved 2 For The Given Antenna Radiation Pattern What Is Chegg One of the very useful graphs for analyzing and comparing different antennas is the radiation pattern graph. a simplified example of a radiation pattern is shown in figure 5.13. the antenna itself is placed at the center of the graph and the antenna gain is measured at various angles. In this section, we introduce the concept of directivity and the related concepts of maximum directivity and antenna gain. consider an antenna located at the origin. the power radiated in a single direction (θ, ϕ) is formally zero. The problem requires determining antenna bandwidth and operating frequency range from a vswr plot, and then calculating antenna gain, directivity, mismatch efficiency, and power loss at a specific frequency using provided radiation intensity and efficiency data. Most antennas show a pattern of "lobes" or maxima of radiation. in a directive antenna, shown here, the largest lobe, in the desired direction of propagation, is called the "main lobe". the other lobes are called "sidelobes" and usually represent radiation in unwanted directions. The antenna pattern is usually a graphical representation of the antenna’s directional characteristic. it represents the relative intensity of the energy radiation or the amount of the electric or magnetic field strength as a function of the direction to the antenna. Radiation is the term used to represent the emission or reception of wave front at the antenna, specifying its strength. in any illustration, the sketch drawn to represent the radiation of an antenna is its radiation pattern.

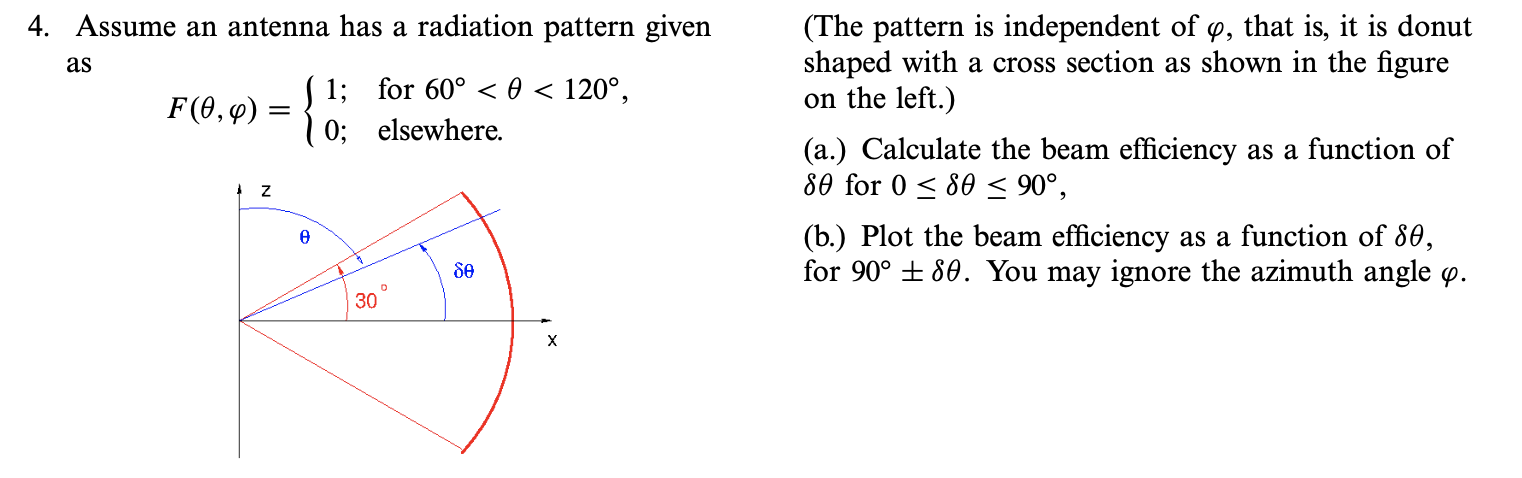

Solved 4 Assume An Antenna Has A Radiation Pattern Given Chegg
Solved 4 Assume An Antenna Has A Radiation Pattern Given Chegg

Solved 4 Assume An Antenna Has A Radiation Pattern Given Chegg The problem requires determining antenna bandwidth and operating frequency range from a vswr plot, and then calculating antenna gain, directivity, mismatch efficiency, and power loss at a specific frequency using provided radiation intensity and efficiency data. Most antennas show a pattern of "lobes" or maxima of radiation. in a directive antenna, shown here, the largest lobe, in the desired direction of propagation, is called the "main lobe". the other lobes are called "sidelobes" and usually represent radiation in unwanted directions. The antenna pattern is usually a graphical representation of the antenna’s directional characteristic. it represents the relative intensity of the energy radiation or the amount of the electric or magnetic field strength as a function of the direction to the antenna. Radiation is the term used to represent the emission or reception of wave front at the antenna, specifying its strength. in any illustration, the sketch drawn to represent the radiation of an antenna is its radiation pattern.
