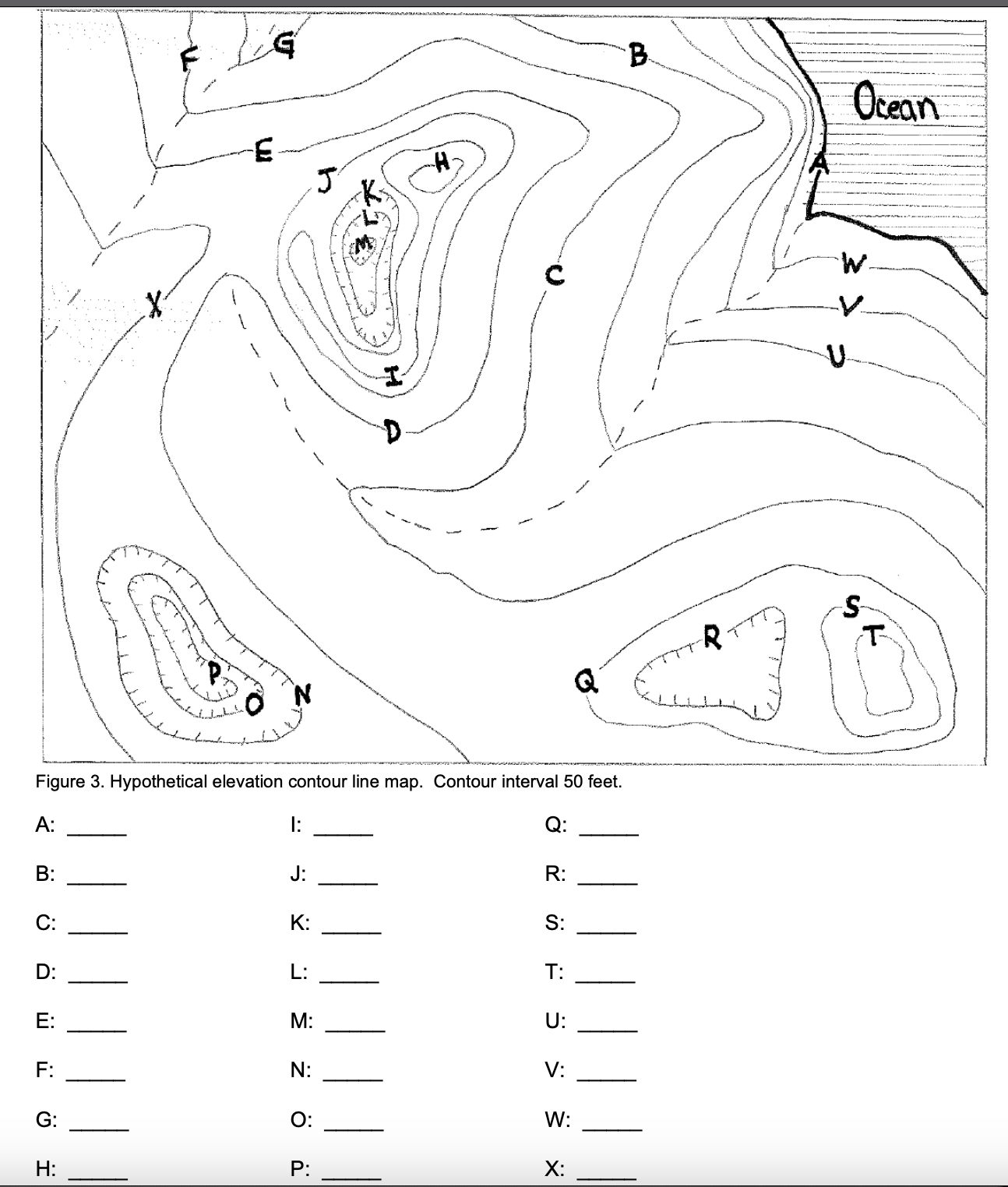

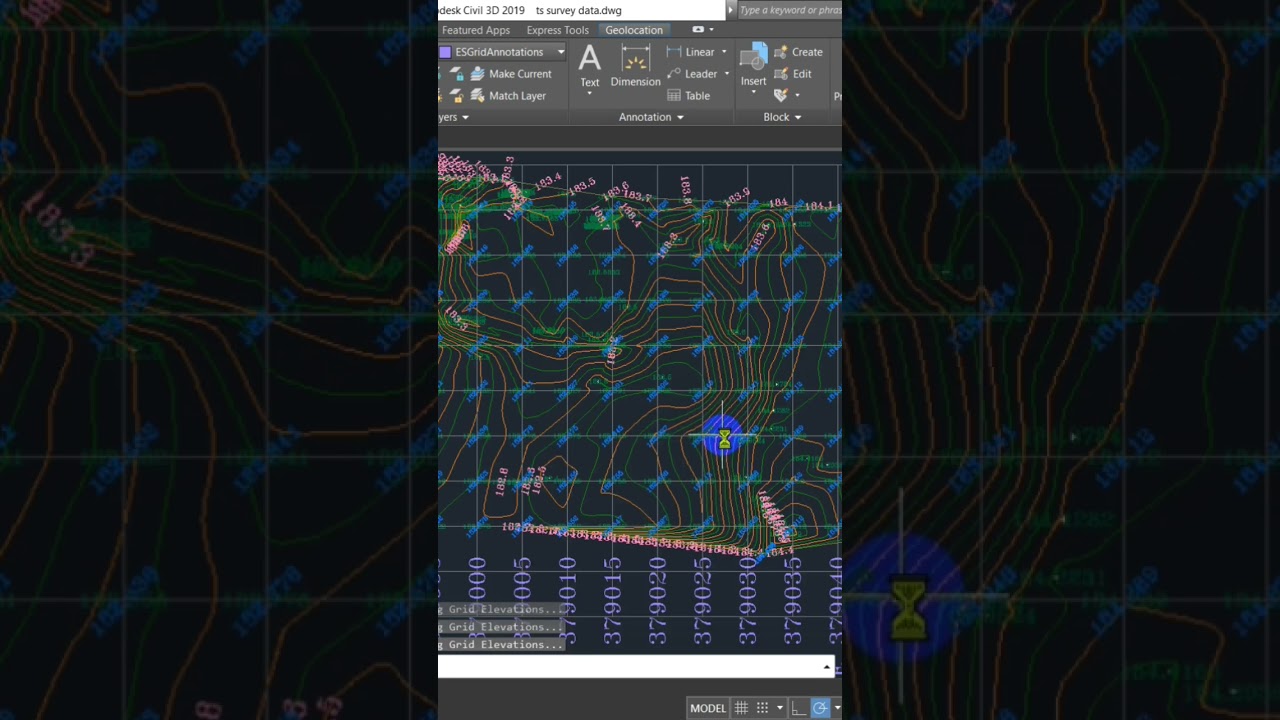

Solved Figure 5 Hypothetical Elevation Contour Line Map 1 Chegg Answer to figure 3. hypothetical elevation contour line map. The questions assess identifying locations, elevations, stream flow directions, contour intervals, slope gradients, and rates of elevation change based on map features like contour lines and labeled points. an answer key is provided with the correct response for each question.
Solved Figure 3 Hypothetical Elevation Contour Line Map Chegg Ii. features of topographic maps hic maps are summarized in this section. the most common type of topographic map used in the united states is the u.s. geological survey topographic maps all countries produce topographic maps. which agency publishes the ma i ed on the basis of a geographic feature. for example the local u.s.g.s. quadrang e. To determine which location represents the top of a hill, we need to analyze the contour lines on the map. contour lines indicate elevation; when they are close together, it signifies a steep slope, while lines that are further apart indicate a gentler slope. Below you will find some sample problems from the geosciences using steps on the constructing a topographic profile page. Determine whether the point is higher or lower than the known elevation by examining the sequence of adjacent contour line elevations and by taking note of nearby feature names, such as "fire tower," "valley," and so forth.
3d Abstract Elevation Contour Topography Line Map Vector 58 Off Below you will find some sample problems from the geosciences using steps on the constructing a topographic profile page. Determine whether the point is higher or lower than the known elevation by examining the sequence of adjacent contour line elevations and by taking note of nearby feature names, such as "fire tower," "valley," and so forth. Cartographers solve the problem of representing the three dimensional land surface on a flat piece of paper by using contour lines, thus horizontal distances and vertical elevations can both be measured from a topographic map. Figure 1. hypothetical elevation contour line map. contour interval 20 feet. elevations 6ft: 43ft: 18ft: 58ft: 22ft: 70ft:. First on figure 23 and then on figure 23, use a red colored pencil to draw the route you would take; give your reasons for choosing this easier route in terms of elevation change per distance traveled. Construct a topographic profile for the contour map below (figure 2.27). recall, a topographic profile allows you to visualize the vertical component of a landscape.
Solved 14 ï Label The Elevation Of Each Contour Line On The Chegg Cartographers solve the problem of representing the three dimensional land surface on a flat piece of paper by using contour lines, thus horizontal distances and vertical elevations can both be measured from a topographic map. Figure 1. hypothetical elevation contour line map. contour interval 20 feet. elevations 6ft: 43ft: 18ft: 58ft: 22ft: 70ft:. First on figure 23 and then on figure 23, use a red colored pencil to draw the route you would take; give your reasons for choosing this easier route in terms of elevation change per distance traveled. Construct a topographic profile for the contour map below (figure 2.27). recall, a topographic profile allows you to visualize the vertical component of a landscape.
Solved Figure 2 ï Is A Contour Map Of A Hypothetical Chegg First on figure 23 and then on figure 23, use a red colored pencil to draw the route you would take; give your reasons for choosing this easier route in terms of elevation change per distance traveled. Construct a topographic profile for the contour map below (figure 2.27). recall, a topographic profile allows you to visualize the vertical component of a landscape.
