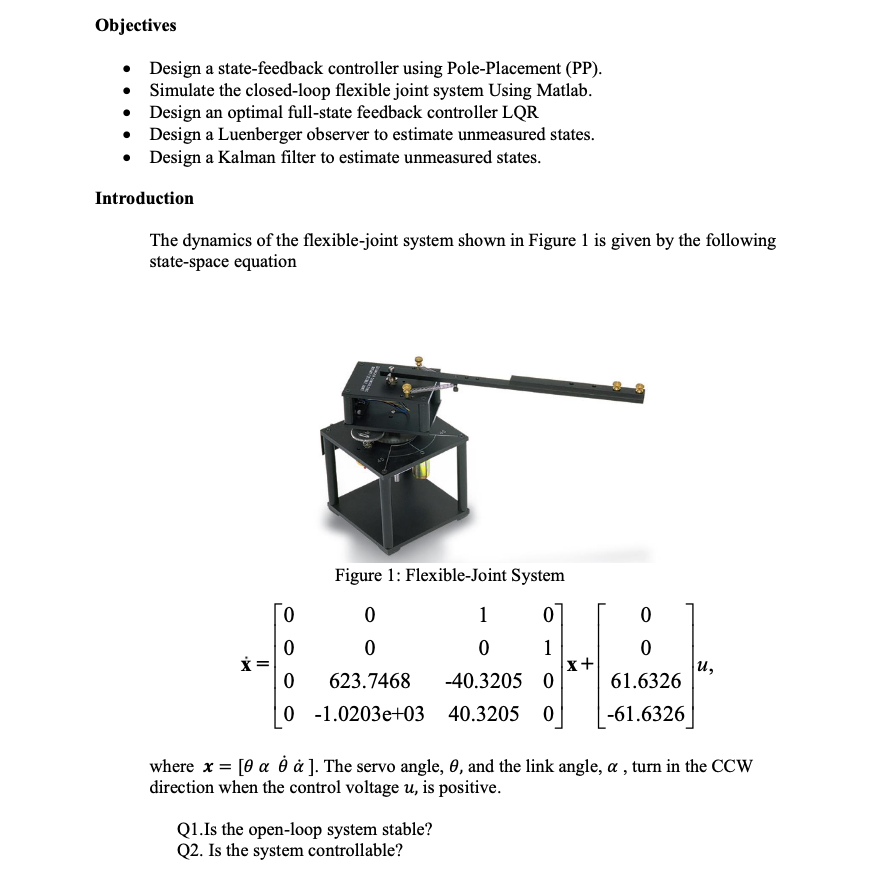

Solved Objectives Design A State Feedback Controller Using Chegg For the open loop plant g (s),convert to state space and design a controller to yield a closed loop response of 20% overshoot and a peak time of0.2 second. place the third pole 10x farther from the jw axis as the dominant poles. 100 s (s 4) (s 10) g (s) = a. derive. your solution’s ready to go!. Want to use the input u(t) to modify the eigenvalues of a to change the system dynamics. note that there are n parameters in k and n eigenvalues in a, so it looks promising, but what can we achieve? then det(si − a) = (s − 1)(s − 2) − 1 = s2 − 3s 1 = 0 so the system is unstable.
Solved Design A State Variable Sv Feedback Controller Chegg This is state feedback on the augmented state vector. we can find the feedback gain vector k by using ackerman’s formula (or similar) by replacing “a” in ackerman with the augmented “a” matrix above, and by replacing “b” in ackerman by the matrix multiplying u.t above. The design techniques described in the preceding lectures are based on the transfer function of a system. in this lecture we would discuss the state variable methods of designing controllers. It then covers pole placement controller design for regulation systems, including determining the state feedback gain matrix k to place closed loop poles at desired locations using direct substitution or ackermann's formula. examples are provided to illustrate the pole placement design process. State feedback control one of the advantages of state space models is that it is possible to apply state feedback to place the closed loop poles into any desired positions.
Please Design A State Feedback Controller Based On Chegg It then covers pole placement controller design for regulation systems, including determining the state feedback gain matrix k to place closed loop poles at desired locations using direct substitution or ackermann's formula. examples are provided to illustrate the pole placement design process. State feedback control one of the advantages of state space models is that it is possible to apply state feedback to place the closed loop poles into any desired positions. The state feedback controller design refers to the selection of individual feedback gains for the complete set of state variables. it is assumed that all the state variables are available for observation. Design a minimum complexity controller to achieve zero steady state error for the reference and the sinusoidal input disturbance at ! = p 2 whilst achieving a small error for the remainder of the input disturbance. The first step in designing a full state feedback controller is to determine the open loop poles of the system. enter the following lines of code into an m file. Problem set on control systems engineering, covering block diagrams, feedback control, and system components. ideal for engineering students.
Solved Objectives Design A State Feedback Controller Using Chegg The state feedback controller design refers to the selection of individual feedback gains for the complete set of state variables. it is assumed that all the state variables are available for observation. Design a minimum complexity controller to achieve zero steady state error for the reference and the sinusoidal input disturbance at ! = p 2 whilst achieving a small error for the remainder of the input disturbance. The first step in designing a full state feedback controller is to determine the open loop poles of the system. enter the following lines of code into an m file. Problem set on control systems engineering, covering block diagrams, feedback control, and system components. ideal for engineering students.
