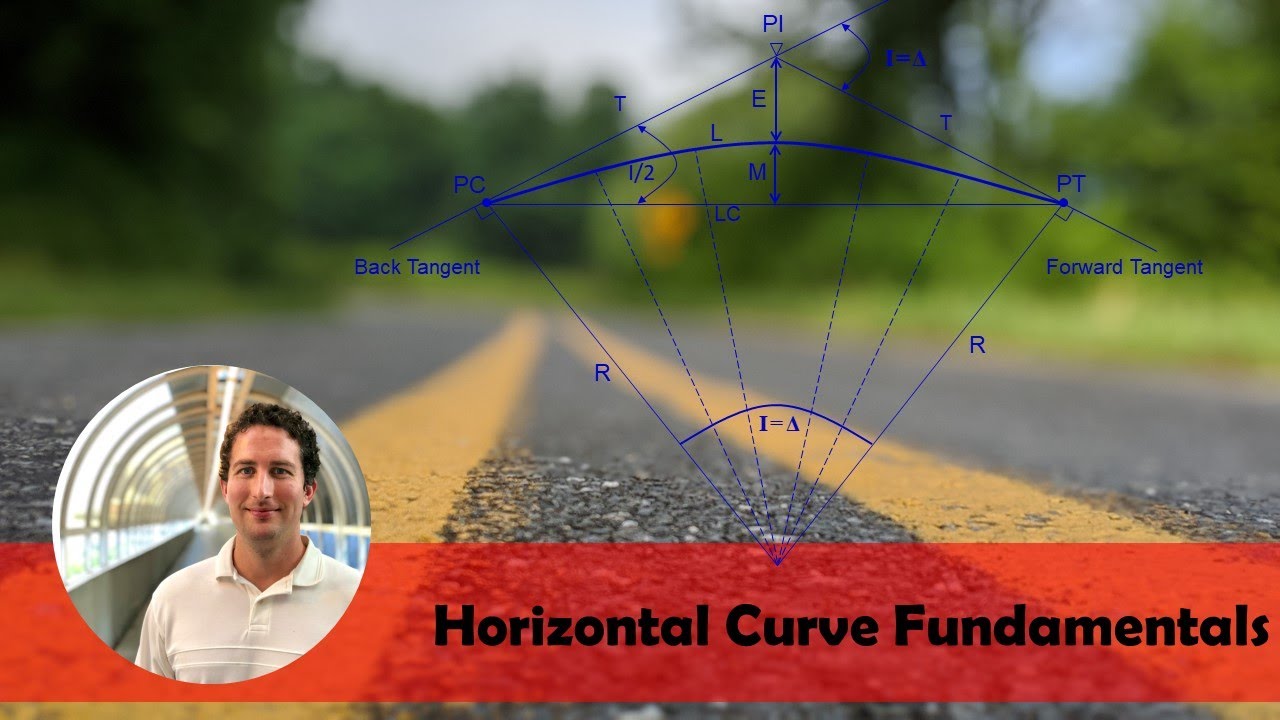

Simple Horizontal Curve Pdf Tangent Angle Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Horizontal alignment refers to the layout of a roadway in a horizontal plane, determining the direction and curvature of the road as viewed from above. it consists of straight sections (tangents) and curved sections that provide smooth transitions for vehicles.
Activity 09 Simple Horizontal Curve Group 3 Pdf Geometry A very long horizontal curve on a one directional racetrack has 1750 meter centerline radius, two 4 meter lanes, and a 200 km hr design speed. determine the closest distance from the inside edge of the track that spectators can park without impeding the necessary sight distance of the drivers. There are 2 steps to solve this one. not the question you’re looking for? post any question and get expert help quickly. Design a simple horizontal curve with layout coordinates for a divided urban arterial road, connecting tangents formed by the following points: origin (5000 n, 6000e):pl1(6500 n,4500e); and pl2(5000 n,4000e). Unlock this question and get full access to detailed step by step answers. question: design a simple horizontal curve with layout coordinates for a rural local road, connecting tangents formed by the following points: origin ( 5000n,6000e; ()1; and ()2.

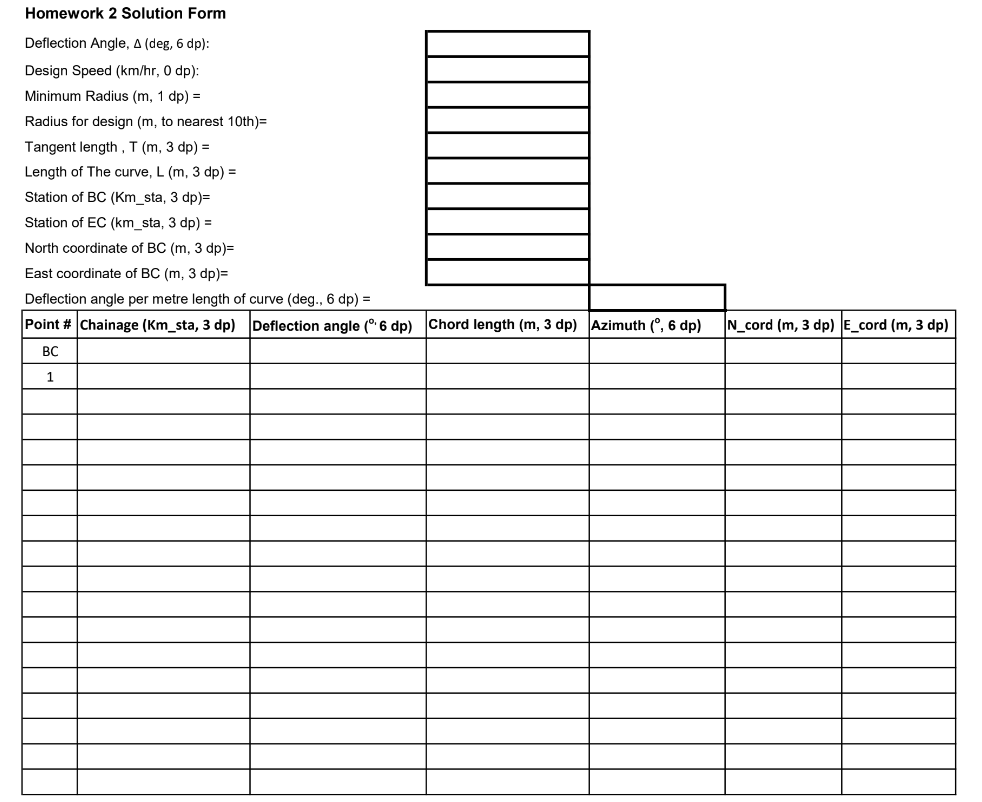

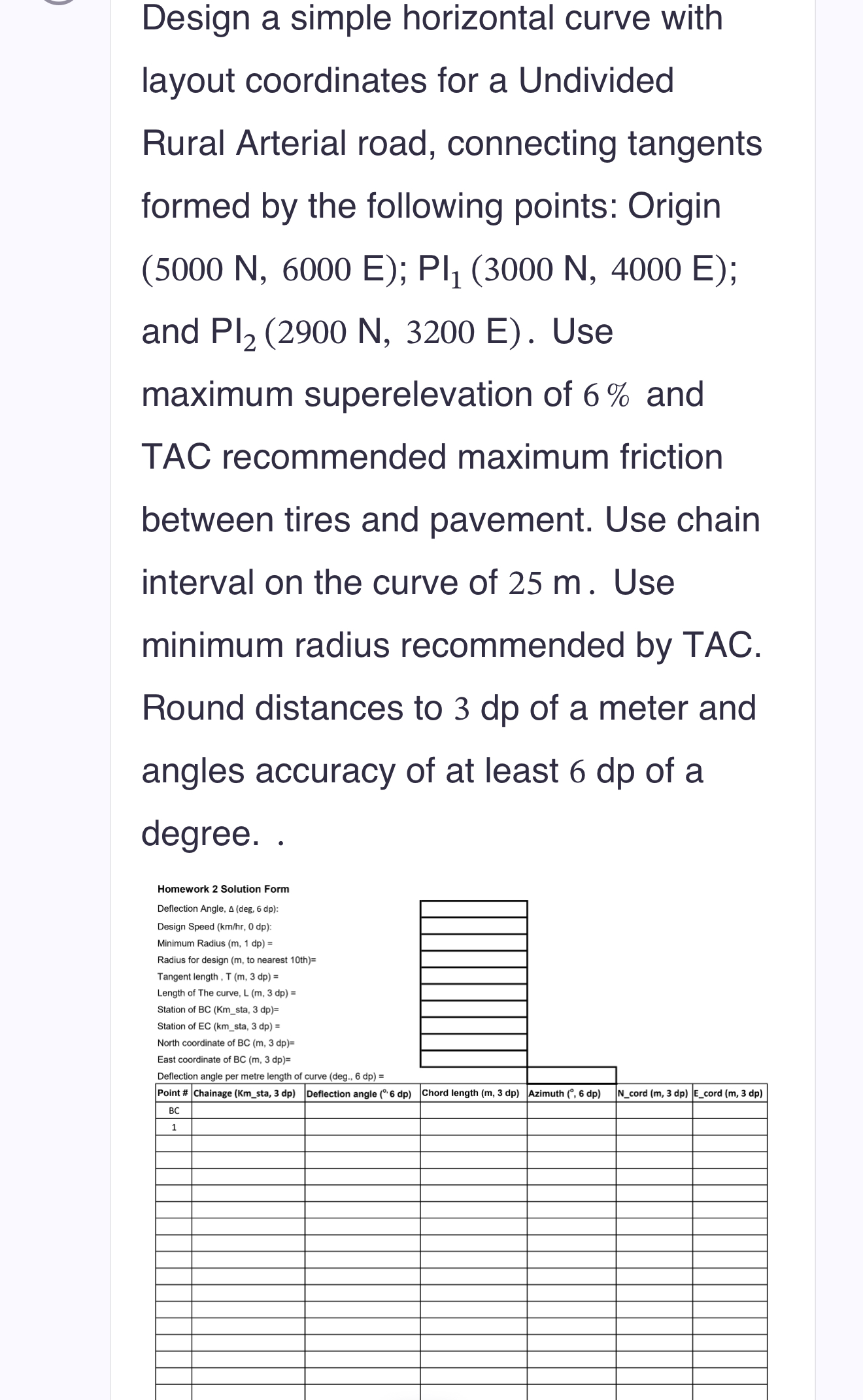

Design A Simple Horizontal Curve With Layout Chegg Design a simple horizontal curve with layout coordinates for a divided urban arterial road, connecting tangents formed by the following points: origin (5000 n, 6000e):pl1(6500 n,4500e); and pl2(5000 n,4000e). Unlock this question and get full access to detailed step by step answers. question: design a simple horizontal curve with layout coordinates for a rural local road, connecting tangents formed by the following points: origin ( 5000n,6000e; ()1; and ()2. Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Determine the length of the curve, the station of the pt, the deflection angles and the chord lengths for setting out the curve at whole stations from the pc. figure 15.21 illustrates a layout of the curve. This document outlines a laboratory fieldwork exercise focused on the layout of a simple curve in surveying. it includes learning objectives, content on the elements and calculations related to simple curves, sample problems, and procedures for conducting the fieldwork. A) the st km of pc and pt of a horizontal curve are given as: 2 2 0 0 and respectively. a horizontal curve was designed for a fourlane highway (no shoulders, no median, intersection angle: 5 0 degrees) for adequate ssd each lanc width is 3. 6 m if the necessary sight distance required 1 6 m of lateral clearance from the roadway (platform) centerline, what design.
Solved What Is The Length Of Arc For The Horizontal Curve Chegg Your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. Determine the length of the curve, the station of the pt, the deflection angles and the chord lengths for setting out the curve at whole stations from the pc. figure 15.21 illustrates a layout of the curve. This document outlines a laboratory fieldwork exercise focused on the layout of a simple curve in surveying. it includes learning objectives, content on the elements and calculations related to simple curves, sample problems, and procedures for conducting the fieldwork. A) the st km of pc and pt of a horizontal curve are given as: 2 2 0 0 and respectively. a horizontal curve was designed for a fourlane highway (no shoulders, no median, intersection angle: 5 0 degrees) for adequate ssd each lanc width is 3. 6 m if the necessary sight distance required 1 6 m of lateral clearance from the roadway (platform) centerline, what design.
Design A Simple Horizontal Curve With Layout Chegg This document outlines a laboratory fieldwork exercise focused on the layout of a simple curve in surveying. it includes learning objectives, content on the elements and calculations related to simple curves, sample problems, and procedures for conducting the fieldwork. A) the st km of pc and pt of a horizontal curve are given as: 2 2 0 0 and respectively. a horizontal curve was designed for a fourlane highway (no shoulders, no median, intersection angle: 5 0 degrees) for adequate ssd each lanc width is 3. 6 m if the necessary sight distance required 1 6 m of lateral clearance from the roadway (platform) centerline, what design.
