Solved 1 Draw Block Diagram For Bpsk Modulator 2 Assume Chegg Draw block diagram for bpsk modulator. assume the input signal to the bpsk modulator is a binary digital message m = ( , mo, m1, ), m; e {0,1}. derive signals for the bpsk modulator step by step. The document discusses digital modulation techniques, focusing on binary phase shift keying (bpsk) and its coherent and non coherent detection methods.

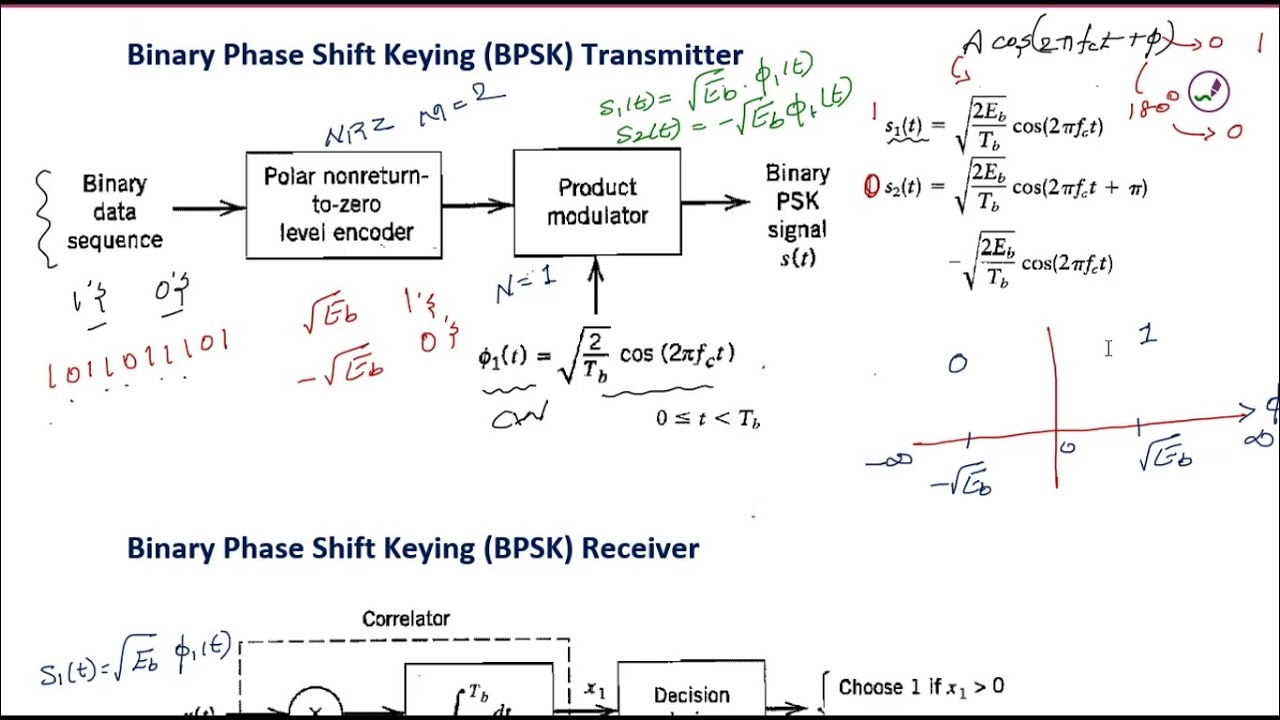

Solved Draw Block Diagram For Bpsk Modulator Assume The Chegg Following is the diagrammatic representation. the modulation of bpsk is done using a balance modulator, which multiplies the two signals applied at the input. for a zero binary input, the phase will be 0° and for a high input, the phase reversal is of 180°. This simulation entails generating message bits and modulating them with bpsk modulation introducing additive white gaussian noise (awgn) based on the desired signal to noise ratio (snr) and finally demodulating the signal using a coherent receiver. Here we have discussed both the block diagrams of bpsk transmitter and receiver. the generation of bpsk is done in the transmitter section, and the detection of bpsk is done by the receiver section. A typical arrangement is illustrated in block diagram form in figure 1 above. no bandlimiting is shown in figure 1, but in practice this would be introduced either at the input to each multiplier (possibly in the form of a pulse shaping filter), or at the output of the adder, or both.
Solved 1 Draw Block Diagram For Bpsk Modulator 2 Assume Chegg Here we have discussed both the block diagrams of bpsk transmitter and receiver. the generation of bpsk is done in the transmitter section, and the detection of bpsk is done by the receiver section. A typical arrangement is illustrated in block diagram form in figure 1 above. no bandlimiting is shown in figure 1, but in practice this would be introduced either at the input to each multiplier (possibly in the form of a pulse shaping filter), or at the output of the adder, or both. Bpsk (binary phase shift keying) is a digital modulation technique where the phase of a carrier signal is shifted between two values (0° and 180°) to represent binary data (0 and 1). Bpsk is the simplest scheme of the psk. it uses two carrier signals with a 180 degree phase shift to generate its symbols. bpsk schematic is represented in fig. 5. Bpsk (binary phase shift keying) is a modulation scheme that conveys data by changing the phase of a reference signal. the modulator takes binary input data and converts it into a phase modulated signal. The power spectrum of the bpsk signal can be represented as a plot of power density (in dbm hz) against frequency (in hz). the power spectrum will have two main components the carrier frequency component and the sidebands.

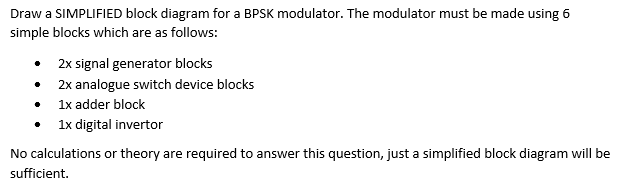

Solved Draw A Simplified Block Diagram For A Bpsk Modulator Chegg Bpsk (binary phase shift keying) is a digital modulation technique where the phase of a carrier signal is shifted between two values (0° and 180°) to represent binary data (0 and 1). Bpsk is the simplest scheme of the psk. it uses two carrier signals with a 180 degree phase shift to generate its symbols. bpsk schematic is represented in fig. 5. Bpsk (binary phase shift keying) is a modulation scheme that conveys data by changing the phase of a reference signal. the modulator takes binary input data and converts it into a phase modulated signal. The power spectrum of the bpsk signal can be represented as a plot of power density (in dbm hz) against frequency (in hz). the power spectrum will have two main components the carrier frequency component and the sidebands.
Solved 2 Draw The Block Diagram Of The Bpsk Modulator And Chegg Bpsk (binary phase shift keying) is a modulation scheme that conveys data by changing the phase of a reference signal. the modulator takes binary input data and converts it into a phase modulated signal. The power spectrum of the bpsk signal can be represented as a plot of power density (in dbm hz) against frequency (in hz). the power spectrum will have two main components the carrier frequency component and the sidebands.
