Chapter 2 Stress And Strain Axial Loading Pdf User generated content is uploaded by users for the purposes of learning and should be used following studypool's honor code & terms of service. Explore stress, strain, axial loading, and safety factors in mechanics of materials. college level engineering concepts explained.
Solution Stress Strain Axial Loading Studypool This document contains 22 solved problems related to axial deformation and stress strain behavior of materials under tension or compression. Solution: • divide the rod into components at the load application points. • apply a free body analysis on each component to determine the internal force, considering each part in equilibrium. On studocu you find all the lecture notes, summaries and study guides you need to pass your exams with better grades. Determine the largest axial load p that can be safely supported by a flat steel bar consisting of two portions, both 10 mm thick, and respectively 40 and 60 mm wide, connected by fillets of radius r = 8 mm. assume an allowable normal stress of 165 mpa.
Stress And Strain In Axial Loading Pdf Deformation Engineering On studocu you find all the lecture notes, summaries and study guides you need to pass your exams with better grades. Determine the largest axial load p that can be safely supported by a flat steel bar consisting of two portions, both 10 mm thick, and respectively 40 and 60 mm wide, connected by fillets of radius r = 8 mm. assume an allowable normal stress of 165 mpa. Before reviewing the solution methods, let us first review some fundamental results from each problem. the axial strain ε is constant across a given cross section of therod. Abstract • suitability of a structure or machine may depend on the deformations in the structure as well as the stresses induced under loading. statics analyses alone are not sufficient. The graph of these quantities with the stress σ along the y axis and the strain ε along the x axis is called the stress strain diagram. the stress strain diagram differs in form for various materials. the diagram shown below is that for a medium carbon structural steel. Problem 5 a cast iron tube is used to support a compressive load. knowing that e = 69 gpa and that the maximum allowable change in length is 0.025 %, determine (a) the maximum normal stress in the tube, (b) the minimum wall thickness for a load of 7.2 kn if the outside diameter of the tube is 50 mm. check back soon!.
Solution Stress Strain Axial Loading And Torsion Studypool Before reviewing the solution methods, let us first review some fundamental results from each problem. the axial strain ε is constant across a given cross section of therod. Abstract • suitability of a structure or machine may depend on the deformations in the structure as well as the stresses induced under loading. statics analyses alone are not sufficient. The graph of these quantities with the stress σ along the y axis and the strain ε along the x axis is called the stress strain diagram. the stress strain diagram differs in form for various materials. the diagram shown below is that for a medium carbon structural steel. Problem 5 a cast iron tube is used to support a compressive load. knowing that e = 69 gpa and that the maximum allowable change in length is 0.025 %, determine (a) the maximum normal stress in the tube, (b) the minimum wall thickness for a load of 7.2 kn if the outside diameter of the tube is 50 mm. check back soon!.

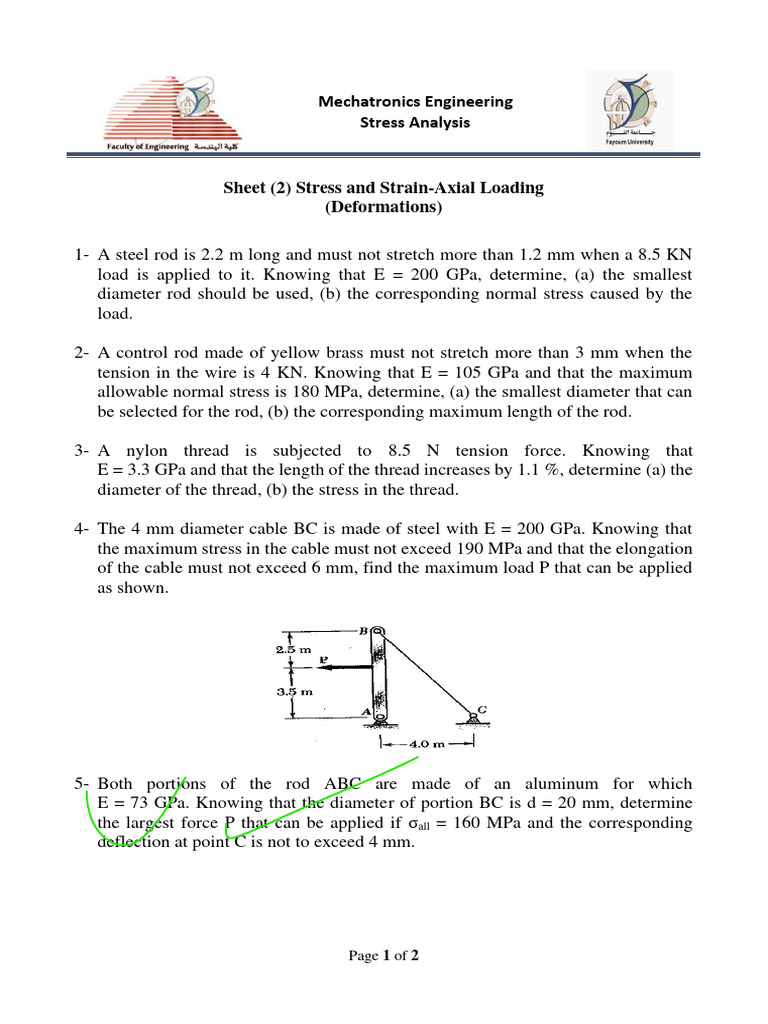

Sheet 2 Stress And Strain Axial Loading Deformations Mechatronics Pdf The graph of these quantities with the stress σ along the y axis and the strain ε along the x axis is called the stress strain diagram. the stress strain diagram differs in form for various materials. the diagram shown below is that for a medium carbon structural steel. Problem 5 a cast iron tube is used to support a compressive load. knowing that e = 69 gpa and that the maximum allowable change in length is 0.025 %, determine (a) the maximum normal stress in the tube, (b) the minimum wall thickness for a load of 7.2 kn if the outside diameter of the tube is 50 mm. check back soon!.
