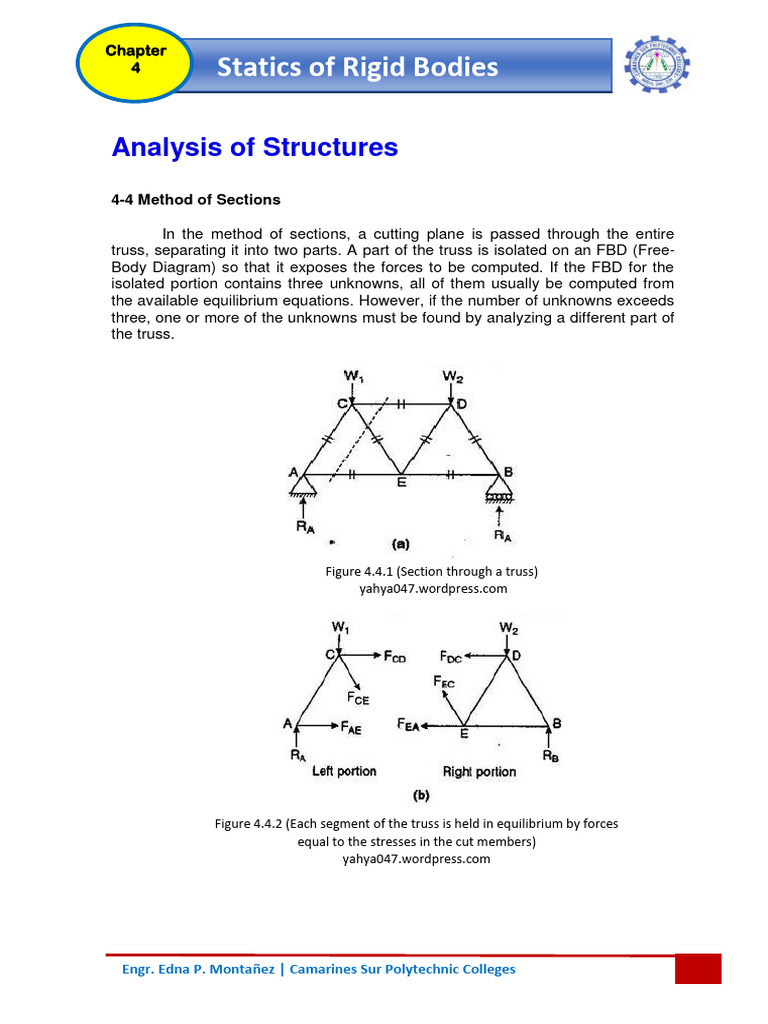

Module 13 Trusses Sections Pdf Truss Equations In the method of sections, a cutting plane is passed through the entiretruss, separating it into two parts. a part of the truss is isolated on an fbd (freebody diagram) so that it exposes the forces to be computed. Each problem presents a specific truss configuration and requires the calculation of forces in various truss members, providing detailed solutions and results for each case.
Trusses Sections Ppt Solved truss example for the method of sections. clear and detailed with explanations. civ1000 for the 22 23 academic year. module taught by prof harm askes. Solution proceeds by cutting fbds of either joints or sections of the truss. member forces are shown as horizontal and vertical force components at each cut section. Complex truss configurations can make it difficult to choose an appropriate section. to overcome this, break down the truss into simpler sections and analyze each section individually. Consider the truss in the figure below, it will be used for all explanations throughout the handout. first, start by examining the forces on the entire structure.
Solution Sa I Ktu Module1 Trusses S Studypool Complex truss configurations can make it difficult to choose an appropriate section. to overcome this, break down the truss into simpler sections and analyze each section individually. Consider the truss in the figure below, it will be used for all explanations throughout the handout. first, start by examining the forces on the entire structure. Section aa as shown in fig. 4.22 (a), a section aa is passed through the three members of interest, cd;dg, and gh, cutting the truss into two portions, acge and dhi. to avoid the calculation of support reactions, we will use the right hand portion, dhi, to calculate the member forces. This document provides solutions for determining the forces in members of truss structures. it analyzes trusses using the method of joints, applying equations of equilibrium at each joint to calculate member forces. Our resource for structural analysis includes answers to chapter exercises, as well as detailed information to walk you through the process step by step. with expert solutions for thousands of practice problems, you can take the guesswork out of studying and move forward with confidence. In this tutorial, we’ll walk you through solving for internal forces in truss members using the method of sections — perfect when you want to jump straight to the members you're interested in.

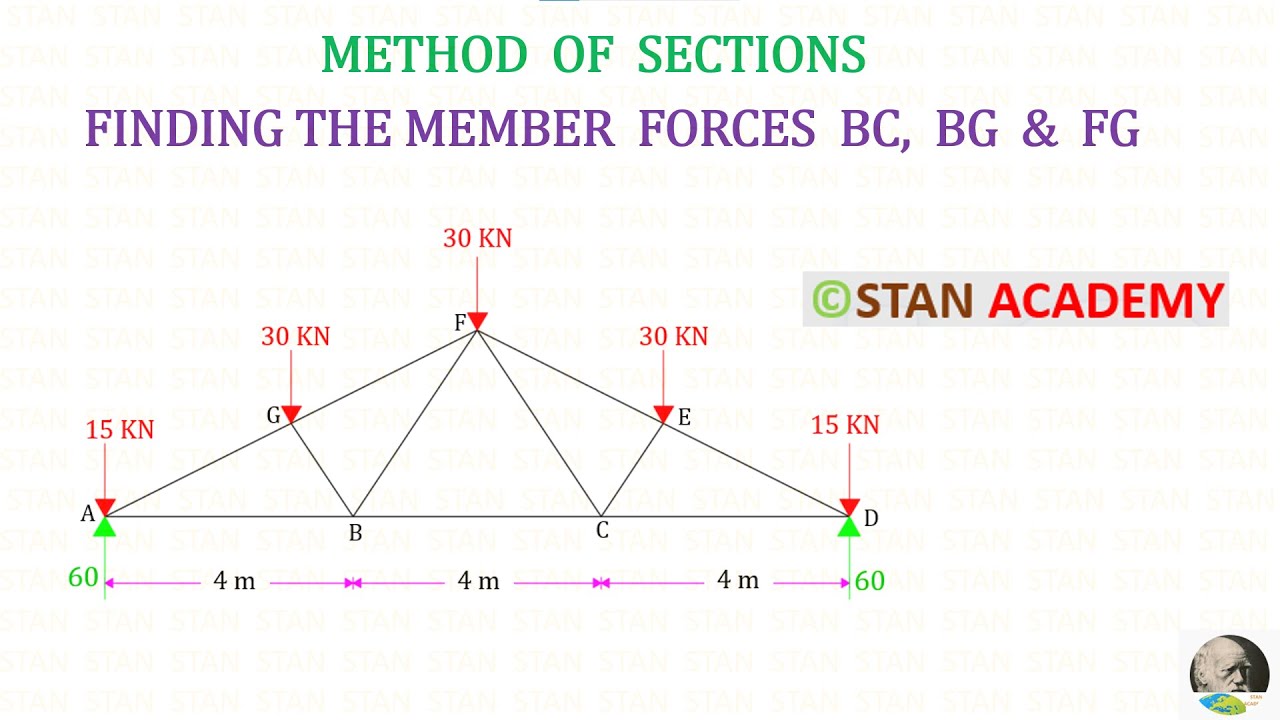

Solution Trusses Method Of Sections Example 1 Movie Studypool Section aa as shown in fig. 4.22 (a), a section aa is passed through the three members of interest, cd;dg, and gh, cutting the truss into two portions, acge and dhi. to avoid the calculation of support reactions, we will use the right hand portion, dhi, to calculate the member forces. This document provides solutions for determining the forces in members of truss structures. it analyzes trusses using the method of joints, applying equations of equilibrium at each joint to calculate member forces. Our resource for structural analysis includes answers to chapter exercises, as well as detailed information to walk you through the process step by step. with expert solutions for thousands of practice problems, you can take the guesswork out of studying and move forward with confidence. In this tutorial, we’ll walk you through solving for internal forces in truss members using the method of sections — perfect when you want to jump straight to the members you're interested in.
Solution Trusses Studypool Our resource for structural analysis includes answers to chapter exercises, as well as detailed information to walk you through the process step by step. with expert solutions for thousands of practice problems, you can take the guesswork out of studying and move forward with confidence. In this tutorial, we’ll walk you through solving for internal forces in truss members using the method of sections — perfect when you want to jump straight to the members you're interested in.
