Mesh Convergence Study Using Ansys Pdf Stress Mechanics Mr abhinav, as a mentor in an ansys training workshop, organised by sserd, putting some light on convergence and its importance. To add convergence, click the result you added to your solution; for example, equivalent stress, total deformation, or total flux density. if you want to converge on deformation, right click total deformation and select insert > convergence.
Overcoming Convergence Difficulties In Ansys Workbench Mechanical Pdf It describes how to import a geometry, generate an initial mesh, apply loads and boundary conditions, set solution parameters like convergence criteria, solve the model, and review stress results on the adapted mesh. When performing a nonlinear static structural analysis in ansys mechanical, users often encounter convergence challenges. these issues are particularly common in large scale models, where identifying the root cause of non convergence can be complex. It is a measure of the force imbalance in the structure. the goal is to iterate until the residual becomes acceptably small; less than the criterion, where the solution is then considered. Sometimes it is difficult to know whether you have a converged solution. in the following sections, some of the numerical controls and modeling techniques that can be exercised to enhance convergence and maintain stability are examined.

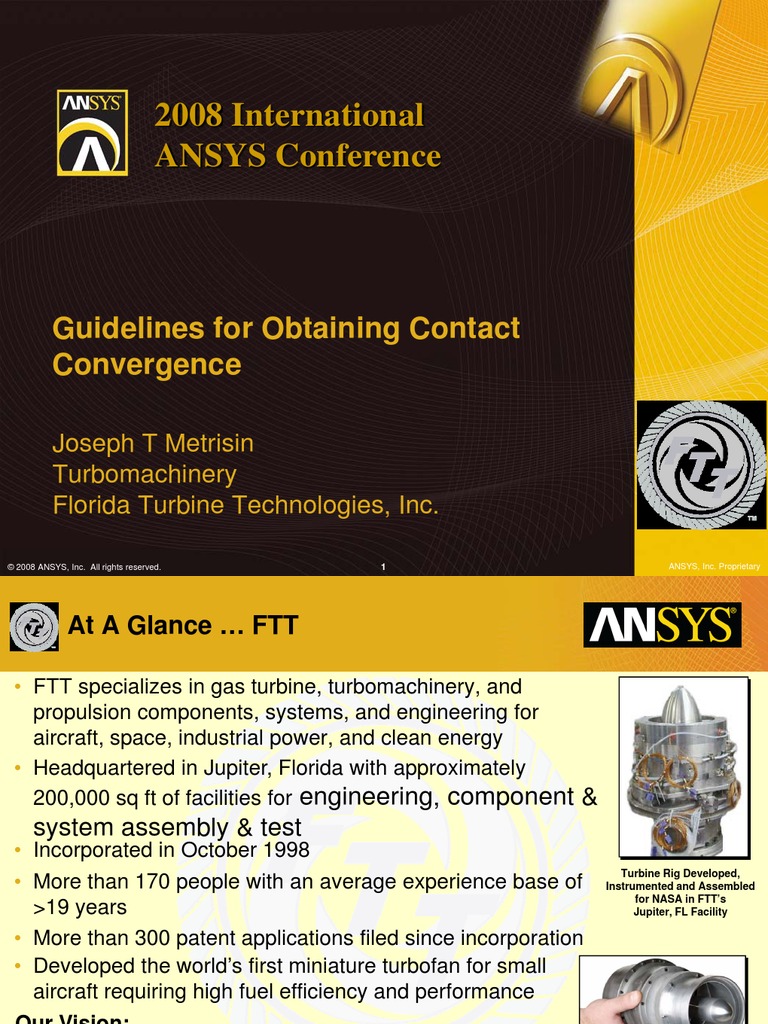

2008 Int Ansys Conf Guidelines Contact Convergence Pdf Matrix It is a measure of the force imbalance in the structure. the goal is to iterate until the residual becomes acceptably small; less than the criterion, where the solution is then considered. Sometimes it is difficult to know whether you have a converged solution. in the following sections, some of the numerical controls and modeling techniques that can be exercised to enhance convergence and maintain stability are examined. In this article, the issue of convergence in finite element analysis is addressed. what is convergence? how is it calculated? learn more. This provides a high level explanation for why some point loads are not singular points (the solution lacks stress components in the thickness direction). we hope our discussion on the previous slides has provided more insight. This two part article describes what might be one of the most overlooked issues that affect accuracy, namely; mesh convergence. This article discusses how to perform a mesh convergence study manually, and is applicable to all types of models. the following basic steps are required: create a mesh using the fewest, reasonable number of elements and analyze the model.
