Solution Amplitude Modulation And Demodulation Studypool 41 Off On this basis, modulation can be classified into two broadly defined families: amplitude modulation and angle modulation, respectively. the two primary communication resources involved in the design of a communication system are transmitted power and channel bandwidth. This document discusses amplitude modulation (am) and provides examples and solutions to related problems. it begins with two example problems calculating the modulation index, carrier power, and transmitted power for an am signal.

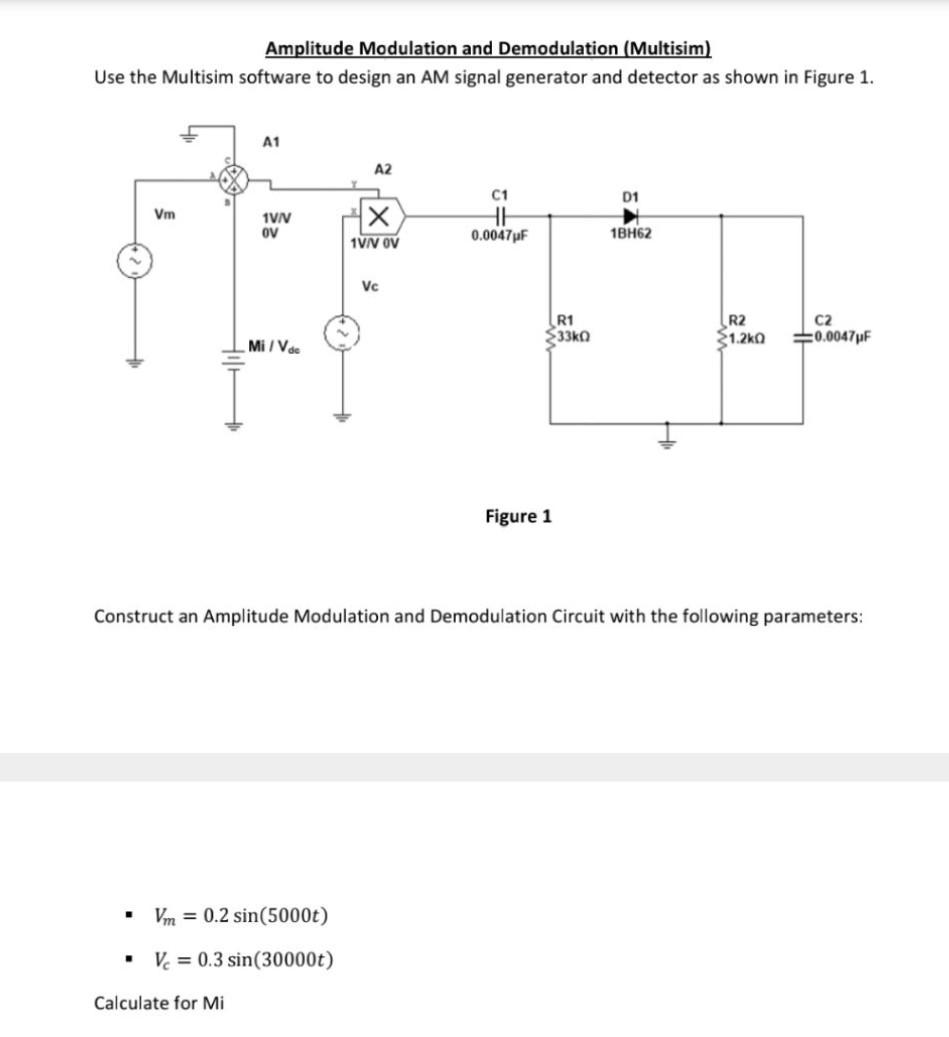

Amplitude Modulation And Demodulation Circuit Diagram Wiring Flow Schema A sinusoidal carrier voltage of frequency 1 mhz and amplitude 100 volts is amplitude modulated by the sinusoidal voltage of frequency 5 khz producing 50% modulation. calculate the frequency and amplitude of lower and upper sideband terms. What is the modulation index of an fm signal having a carrier of 100 khz when the modulating signal has a frequency of 8 khz? solution: given data: 𝑓 𝑐 = 100 𝑘𝐻𝑧 ; 𝑓 𝑚 = 8 𝐾𝐻𝑧 𝑎𝑛𝑑 ∆ 𝑓 = 50 𝐾𝐻𝑧 𝑖. 𝐶𝑎𝑟𝑟𝑖𝑒𝑟 𝑆𝑤𝑖𝑛𝑔 = 2 × ∆ 𝑓 = 100 𝐾𝐻𝑧 ∆ 𝑓. This list has been designed to provide you with a wide range of modulation problems accompanied by detailed solutions. The document discusses amplitude modulation (am) and its various types. it begins by defining am as varying the amplitude of a carrier wave based on an information bearing signal. it then covers the basic mathematical model of am and discusses aspects like modulation index. the main types covered are: 1.

Amplitude Modulation And Demodulation Circuit Diagram Wiring Flow Schema This list has been designed to provide you with a wide range of modulation problems accompanied by detailed solutions. The document discusses amplitude modulation (am) and its various types. it begins by defining am as varying the amplitude of a carrier wave based on an information bearing signal. it then covers the basic mathematical model of am and discusses aspects like modulation index. the main types covered are: 1. Product detector: it is possible to demodulate amplitude modulated signals with a receiver that incorporates a product detector of mixer and a local beat frequency oscillator or carrier injection oscillator. Here, we will implement the dsb am baseband modulator and demodulator using a music file as a source. in this case, since the source is a multimedia file rather than a pure sine wave, we need the dsp process, which is the resampling and filtering. you will not be kept responsible for dsp processes. 8. for demodulation, apply the modulated signal (a.m) as an input to the demodulator and verify the demodulated output with respect to the applied modulating signals and their respective outputs. Qtam bridges this gap by employing a methodology inspired by amplitude modulation (am) radio broadcasting. by modeling the q transform output as a slowly varying complex envelope carried by a deterministic high frequency term, we achieve lossless data decimation via spectral shifting to baseband.

Amplitude Modulation Demodulation Circuit Diagram Product detector: it is possible to demodulate amplitude modulated signals with a receiver that incorporates a product detector of mixer and a local beat frequency oscillator or carrier injection oscillator. Here, we will implement the dsb am baseband modulator and demodulator using a music file as a source. in this case, since the source is a multimedia file rather than a pure sine wave, we need the dsp process, which is the resampling and filtering. you will not be kept responsible for dsp processes. 8. for demodulation, apply the modulated signal (a.m) as an input to the demodulator and verify the demodulated output with respect to the applied modulating signals and their respective outputs. Qtam bridges this gap by employing a methodology inspired by amplitude modulation (am) radio broadcasting. by modeling the q transform output as a slowly varying complex envelope carried by a deterministic high frequency term, we achieve lossless data decimation via spectral shifting to baseband.

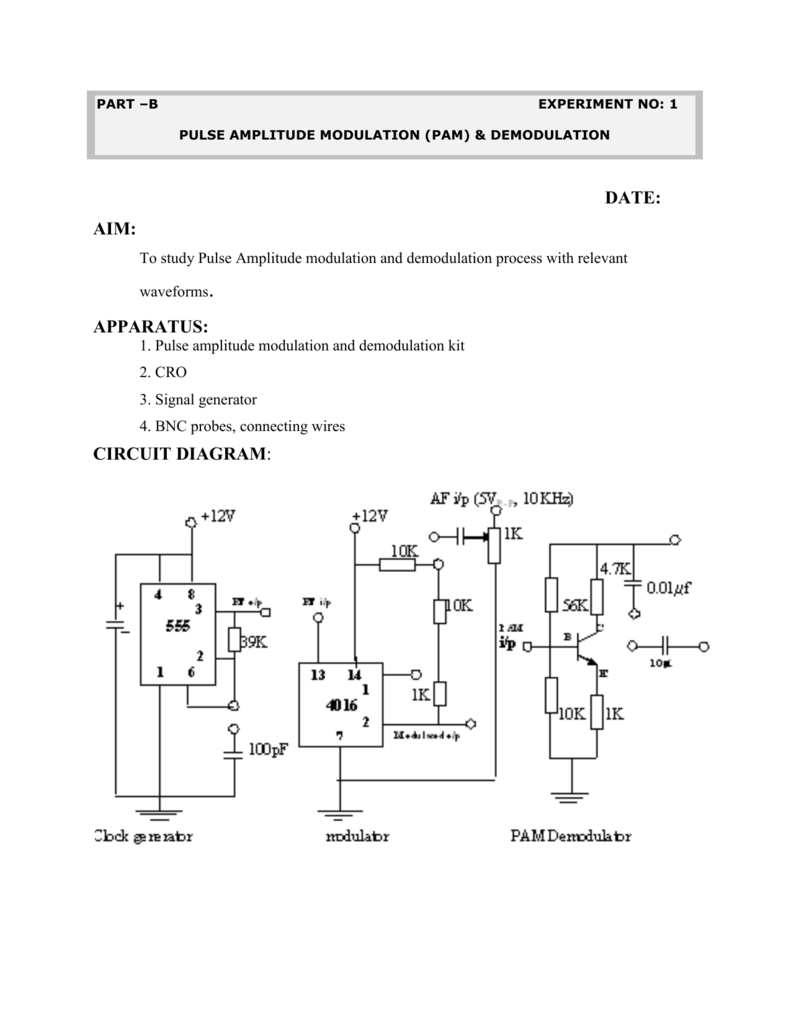

Pulse Amplitude Modulation And Demodulation Trainer Pam 8. for demodulation, apply the modulated signal (a.m) as an input to the demodulator and verify the demodulated output with respect to the applied modulating signals and their respective outputs. Qtam bridges this gap by employing a methodology inspired by amplitude modulation (am) radio broadcasting. by modeling the q transform output as a slowly varying complex envelope carried by a deterministic high frequency term, we achieve lossless data decimation via spectral shifting to baseband.
