Solidworks Quick Tips Grouping Annotations In this video we will quickly demonstrate how group and un group your annotations in solidworks drawings to help keep them organised. In a drawing document, box select or hold down ctrl and select two or more annotations to group. click group (align toolbar), or click tools > align > group > group.

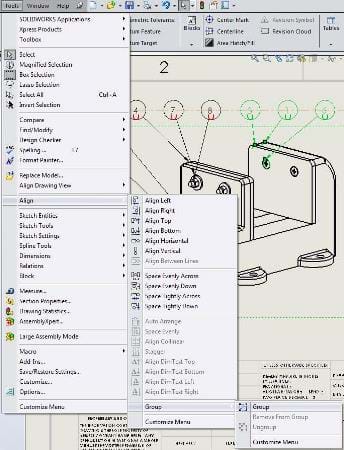

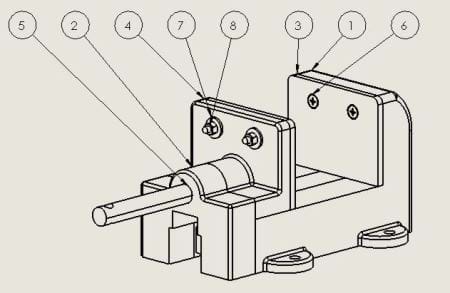

Grouping Annotations Grouping annotations in solidworks offers a quick way to keep drawing notes, dimensions and symbols organised. the walkthrough shows how multiple annotations can be selected together, right‑clicked and grouped so they move as a single unit when dragged around the sheet. You can select multiple annotations in a drawing and group them so they move together when you drag them. in this video we will quickly demonstrate how group and ungroup your annotations in solidworks drawings to help keep them organised. To group elements together in your drawing simply select two or more annotations (either ctrl or window box select) and then right click and select group > group from the shortcut menu as shown below:. You can select multiple annotations in a drawing and group them so they move together when you drag them. ungroup annotations so they move independently.
Grouping Annotations To group elements together in your drawing simply select two or more annotations (either ctrl or window box select) and then right click and select group > group from the shortcut menu as shown below:. You can select multiple annotations in a drawing and group them so they move together when you drag them. ungroup annotations so they move independently. You can select multiple annotations while holding down ctrl and move them together as a group. when you create or update a section view, a center line is automatically created for each hole or rotational feature. Grouping sketches in solidworks can significantly streamline your design process by organizing various elements and simplifying your workflow. this guide provides a clear, step by step approach to effectively group sketches in solidworks. Collection of hundreds of solidworks tips, tricks, best practices and useful techniques collected from the internet, solidworks forums and other fora. most of it is edited with my own experiences in sw2015 and also to create a more consistent look. In a recent episode of the hawk ridge systems livestream, hosts jesse putnam and taylor hoff shared 25 solidworks tips and tricks that can help users work more efficiently and effectively with the software.
Grouping Annotations You can select multiple annotations while holding down ctrl and move them together as a group. when you create or update a section view, a center line is automatically created for each hole or rotational feature. Grouping sketches in solidworks can significantly streamline your design process by organizing various elements and simplifying your workflow. this guide provides a clear, step by step approach to effectively group sketches in solidworks. Collection of hundreds of solidworks tips, tricks, best practices and useful techniques collected from the internet, solidworks forums and other fora. most of it is edited with my own experiences in sw2015 and also to create a more consistent look. In a recent episode of the hawk ridge systems livestream, hosts jesse putnam and taylor hoff shared 25 solidworks tips and tricks that can help users work more efficiently and effectively with the software.
