Solidworks Quick Tip Indent In Assembly Mode Goengineer Mp3 Mp4 In this solidworks tutorial, we demonstrate how to create indents at the assembly level. in this example, we have an assembly of a plate and three pieces that intersect with the plate. Learn how you can use the indent feature when working in the top down assembly method in solidworks. solidworks quick tip presented by charn jivaphaiboonskdi of goengineer.

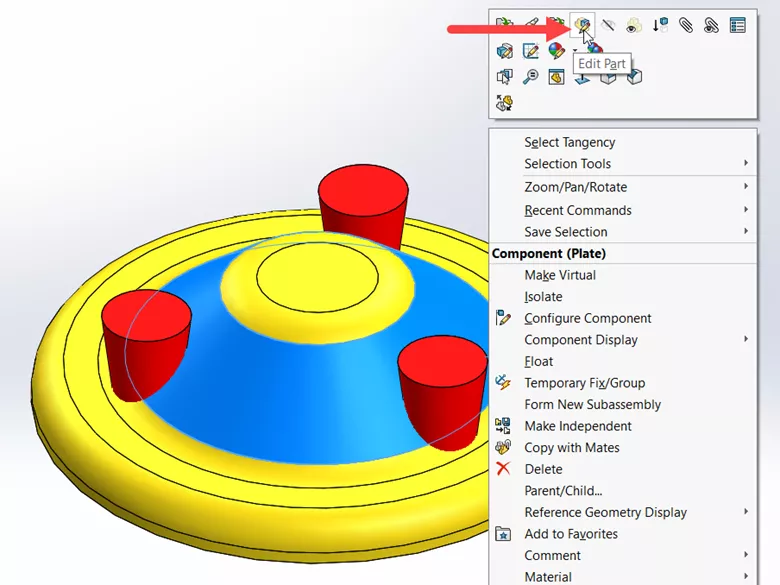

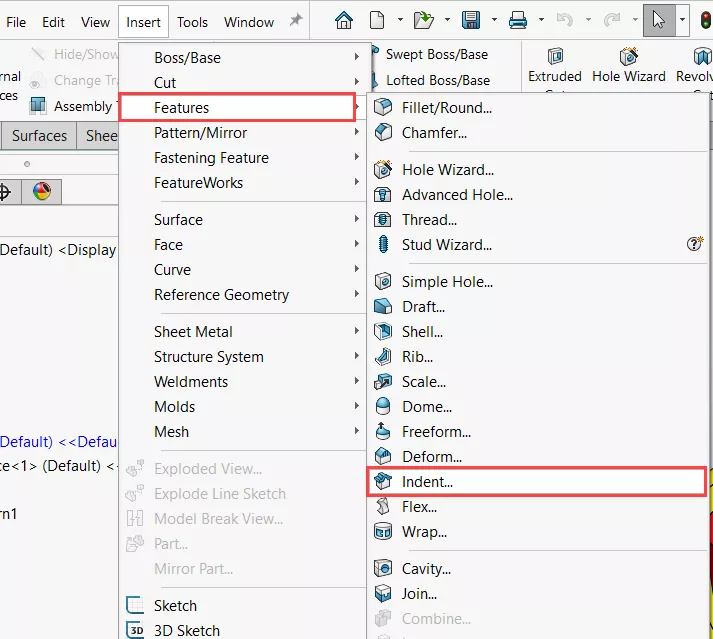

Use Solidworks Indent Feature In An Assembly Goengineer You've probably run into a situation where you were working on an assembly and ran into errors in the featuremanager design tree, indicating overdefined mates and conflicts in the assembly. Learn how you can use the indent feature when working in the top down assembly method in #solidworks. #tips #tricks cad cam computer technology getting started the basics solidworks quick tip getting started. Begin by opening the part file in which you want to create an indent. make sure that the part is properly defined and has a solid geometry that can accept the indent feature. navigate to the toolbar and locate the “features” tab. under this tab, find the “indent” option. You can use an assembly envelope to quickly select assembly components for different operations, such as compressing, decompressing, hiding, showing, copying, and deleting.
Use Solidworks Indent Feature In An Assembly Goengineer Begin by opening the part file in which you want to create an indent. make sure that the part is properly defined and has a solid geometry that can accept the indent feature. navigate to the toolbar and locate the “features” tab. under this tab, find the “indent” option. You can use an assembly envelope to quickly select assembly components for different operations, such as compressing, decompressing, hiding, showing, copying, and deleting. Working with multi body parts, the indent feature creates an offset pocket or protrusion on a target body using a tool body or bodies. the contour of the tool body is removed or added to the target part, also allowing a thickness and clearance value to create the feature. Learn how to use the indent feature in solidworks. this video explains what target body and tool body regions are. more. In solidworks, there is an option to initialize different iterations of your model, and this can be done very quickly using the modify configurations prompt. the configuration manager table can be used for manually changing dimensions and suppressing individual features and can be done very quickly. This quick tutorial explains the difference between solidworks indent cut vs combine subtract features that can be used to remove unwanted overlaps on models.
Use Solidworks Indent Feature In An Assembly Goengineer Working with multi body parts, the indent feature creates an offset pocket or protrusion on a target body using a tool body or bodies. the contour of the tool body is removed or added to the target part, also allowing a thickness and clearance value to create the feature. Learn how to use the indent feature in solidworks. this video explains what target body and tool body regions are. more. In solidworks, there is an option to initialize different iterations of your model, and this can be done very quickly using the modify configurations prompt. the configuration manager table can be used for manually changing dimensions and suppressing individual features and can be done very quickly. This quick tutorial explains the difference between solidworks indent cut vs combine subtract features that can be used to remove unwanted overlaps on models.
Use Solidworks Indent Feature In An Assembly Goengineer In solidworks, there is an option to initialize different iterations of your model, and this can be done very quickly using the modify configurations prompt. the configuration manager table can be used for manually changing dimensions and suppressing individual features and can be done very quickly. This quick tutorial explains the difference between solidworks indent cut vs combine subtract features that can be used to remove unwanted overlaps on models.
