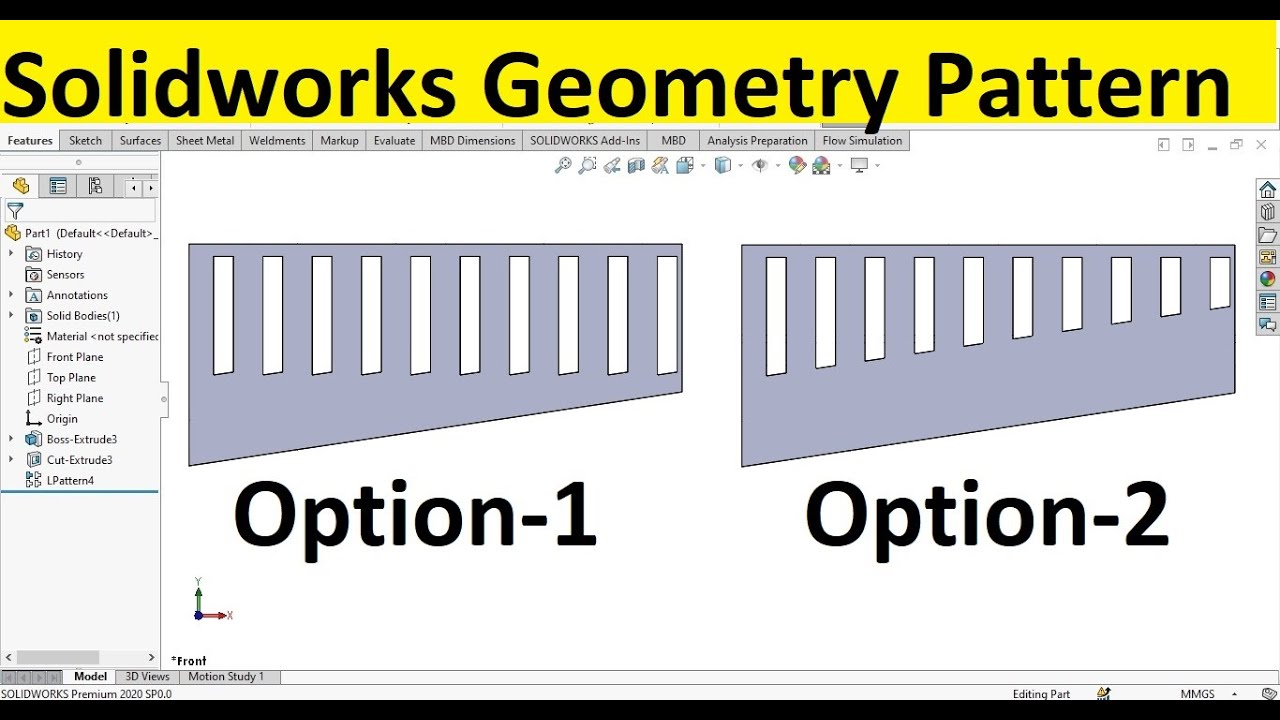

Solidworks Linear Pattern With Geometry Pattern Option On Off Grabcad Here we are presenting how to make alinear pattern with geometry pattern option on and off selection and what will be difference with both. for more soldiworks tutorials, please subscribe . Apply features to one or more multibody parts by selecting geometry pattern under options, and by using feature scope to choose the bodies that will include the feature.

Solidworks Tips Linear Pattern With Geometry Pattern Option Explained Here we are presenting how to make alinear pattern with geometry pattern option on and off selection and what will be difference with both. We will explain the difference of using solidworks linear pattern with and without geometry pattern option. You cannot create geometry patterns of features that have faces merged with the rest of the part. learn how to use the geometry pattern option in linear pattern in solidworks to. The geometry pattern option is available for all pattern features except variable patterns. using geometry pattern can increase the rebuild speed of patterned features whose seed features use reference geometry.

Solidworks Lá Nh Linear Pattern Grabcad Tutorials You cannot create geometry patterns of features that have faces merged with the rest of the part. learn how to use the geometry pattern option in linear pattern in solidworks to. The geometry pattern option is available for all pattern features except variable patterns. using geometry pattern can increase the rebuild speed of patterned features whose seed features use reference geometry. I'm trying to linear pattern in z to a linear pattern in x and y. rebuild errors and the suggestion is to deselect the geometry pattern even though it already is deselected. On tech support we have seen a few odd situations where the pattern fails without geometry pattern enabled, but for no apparent reason. and yet, after checking that box, the pattern magically works. Apply features to one or more multibody parts by selecting geometry pattern under options, and by using feature scope to choose the bodies that will include the feature. When you enable the geometry pattern option, solidworks copies the faces and edges of the original feature directly, bypassing the need to solve end conditions or reference geometry for each patterned instance.
