File Properties Dialog Box Specify custom properties for the active part, assembly, or drawing document. apply custom properties to specific configurations in the active part or assembly document. A complete list of all variables in solidworks. use these for custom properties. examples: mass, weldment length, sheet metal thickness.
How To Add Solidworks Part Template File Properties Properties can be used in many areas of solidworks to populate bills of materials, build templates, and link information in drawing borders, but they also provide additional searchable information. the first and most commonly used way to create file properties is from the file > properties menu. The solidworks custom property name list comes from a text file called properties.txt. learn how to modify it in this solidworks tutorial. You can use this summary information dialog box to add more information to a part or assembly document, or to a configuration of the model in the document. you can create blank custom or configuration specific properties in the summary information dialog box. With document properties, users can ensure consistency in models and drawings by allowing the document to use the same settings (standards, units, fonts, image quality, etc.). this article will explain how to open the document properties in solidworks and what settings users can find there.

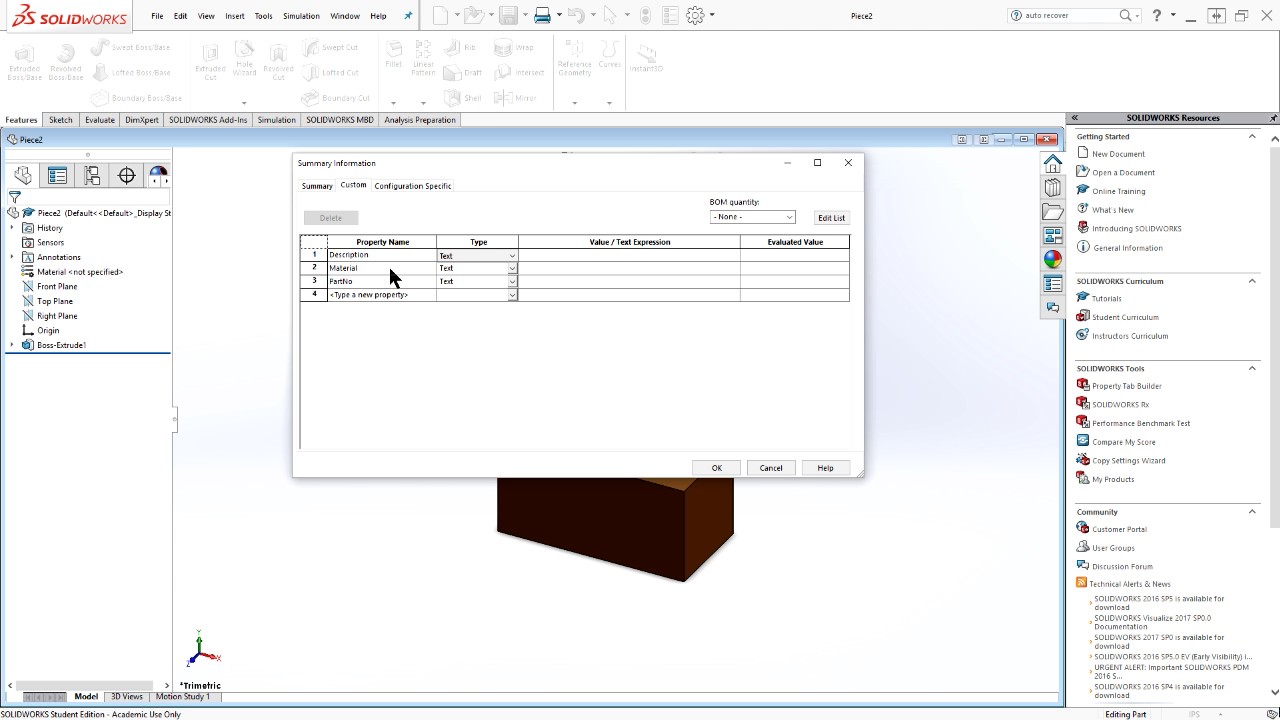

How To Add Solidworks Part Template File Properties You can use this summary information dialog box to add more information to a part or assembly document, or to a configuration of the model in the document. you can create blank custom or configuration specific properties in the summary information dialog box. With document properties, users can ensure consistency in models and drawings by allowing the document to use the same settings (standards, units, fonts, image quality, etc.). this article will explain how to open the document properties in solidworks and what settings users can find there. Properties can be used in many areas of solidworks to populate bills of materials, build templates, and link information in drawing borders, but they also provide additional searchable information. the first and most commonly used way to create file properties is from the file > properties menu. Dive into our step step guide on how to map variables to both predefined properties, like title and author, as well as to custom named properties within solidworks files. Press ctrl p to directly open the properties window. this window allows you to view and edit custom properties for the document, such as author, company, material, and other metadata. When you use a custom property in a (drawing) note, solidworks checks the configuration specific properties first. if it finds one with the correct name, it returns the value of that property. if it doesn’t find a property, it checks the list of file based properties and returns that value.
How To Add Solidworks Part Template File Properties Properties can be used in many areas of solidworks to populate bills of materials, build templates, and link information in drawing borders, but they also provide additional searchable information. the first and most commonly used way to create file properties is from the file > properties menu. Dive into our step step guide on how to map variables to both predefined properties, like title and author, as well as to custom named properties within solidworks files. Press ctrl p to directly open the properties window. this window allows you to view and edit custom properties for the document, such as author, company, material, and other metadata. When you use a custom property in a (drawing) note, solidworks checks the configuration specific properties first. if it finds one with the correct name, it returns the value of that property. if it doesn’t find a property, it checks the list of file based properties and returns that value.
How To Add Solidworks Part Template File Properties Press ctrl p to directly open the properties window. this window allows you to view and edit custom properties for the document, such as author, company, material, and other metadata. When you use a custom property in a (drawing) note, solidworks checks the configuration specific properties first. if it finds one with the correct name, it returns the value of that property. if it doesn’t find a property, it checks the list of file based properties and returns that value.
