Convert Step File To Solidworks Horedsjunkie Short video on how to convert step files to solidworks parts file (sldprt). have a large step file assembly and want only a certain portion of it? more. Solidworks | how to convert step. file into part file (sldprt) mohamed hedi kasraoui the savvy engineer 24 apr, 2025 12:11 am.

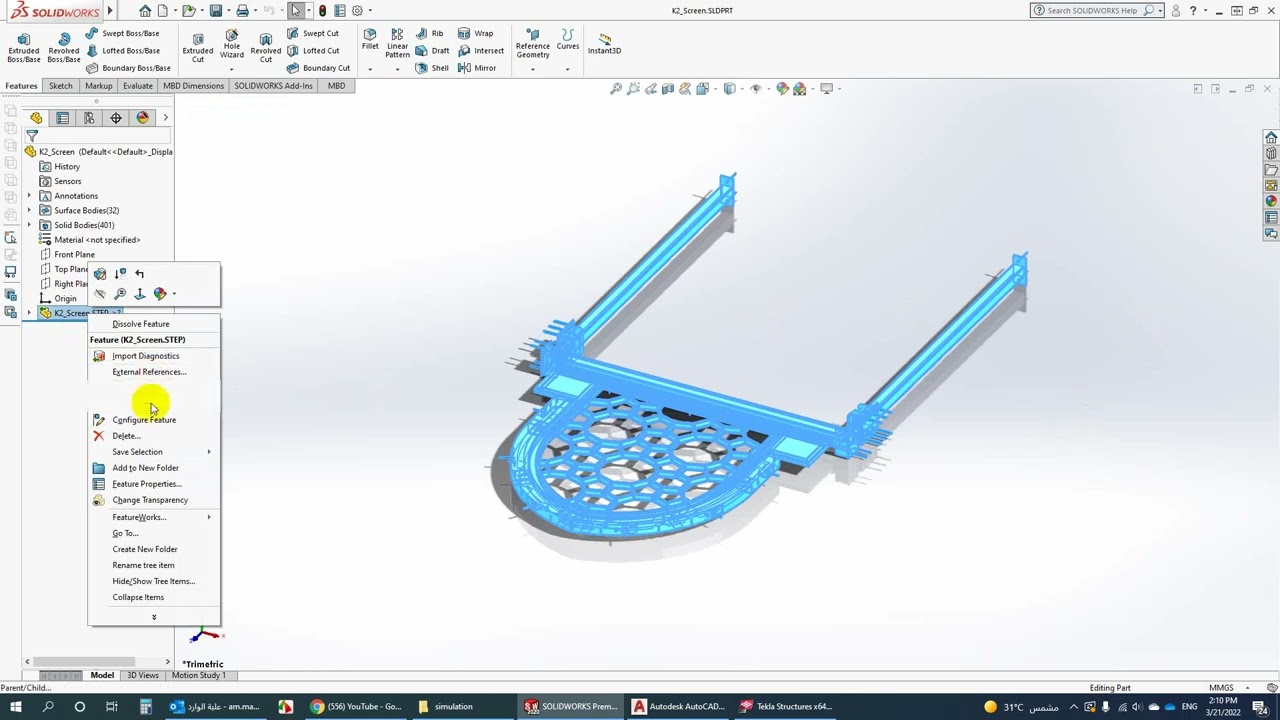

Convert Step File Into Featureworks In Solidworks Ime Wiki Objective: to convert a step file into an editable solidworks part file format (.sldprt). a. drag the step file into the open solidworks program window. b. alternatively, go to file > open and select the step file. if prompted with an import diagnostics dialog box, choose no to proceed. You can convert step files to sldprt format in several ways. the most proven option is to download dedicated software that allows you to convert between the step and sldprt formats. The most reliable and accurate way to convert step files to sld is by using solidworks itself. other cad software like autodesk inventor or freecad can import step files, but only solidworks can save directly to the sldprt or sldasm formats. Go to "system options > import > file format: general". 2) tick "enable 3d interconnect". this uses the newer 3die import engine which results in fewer errors as seen in the article (and anecdotally i've found this to be the case). 3) tick "create 3d interconnect feature link in parts only".
How To Convert Solidworks Assembly To Step File Templates Sample The most reliable and accurate way to convert step files to sld is by using solidworks itself. other cad software like autodesk inventor or freecad can import step files, but only solidworks can save directly to the sldprt or sldasm formats. Go to "system options > import > file format: general". 2) tick "enable 3d interconnect". this uses the newer 3die import engine which results in fewer errors as seen in the article (and anecdotally i've found this to be the case). 3) tick "create 3d interconnect feature link in parts only". The best i've gotten so far is to import the step assembly with 3d interconnect enabled, and then save the whole assembly as a parasolid (x t). i'll then close the file and re open the parasolid file, which then has each component saved as a .sldprt, which can be opened as individual parts. Transform from step to solidworks part file. quality models conversion. input format comprises a solid surface or (nurbs) information. the target format in most cases contains a solid information, but also allows you to store surface (nurbs), and polygons. To properly convert them into an editable solidworks assembly, follow these steps: open solidworks. go to file → open. choose **step (.step, .stp) or parasolid (*.x t, *.x b). check "import multiple bodies as parts" to break the model into an assembly. set "assembly structure mapping" to define how bodies are treated (parts vs. assemblies). How to convert .step, .iges, or .sldprt files into flexible assemblies in solidworks 2018. this is especially useful for files downloaded from manufacturer websites that you need to use for complex, flexible assemblies in solidworks. simple trick for converting native files to .sldasm files.
How To Convert Solidworks Assembly To Step File Templates Sample The best i've gotten so far is to import the step assembly with 3d interconnect enabled, and then save the whole assembly as a parasolid (x t). i'll then close the file and re open the parasolid file, which then has each component saved as a .sldprt, which can be opened as individual parts. Transform from step to solidworks part file. quality models conversion. input format comprises a solid surface or (nurbs) information. the target format in most cases contains a solid information, but also allows you to store surface (nurbs), and polygons. To properly convert them into an editable solidworks assembly, follow these steps: open solidworks. go to file → open. choose **step (.step, .stp) or parasolid (*.x t, *.x b). check "import multiple bodies as parts" to break the model into an assembly. set "assembly structure mapping" to define how bodies are treated (parts vs. assemblies). How to convert .step, .iges, or .sldprt files into flexible assemblies in solidworks 2018. this is especially useful for files downloaded from manufacturer websites that you need to use for complex, flexible assemblies in solidworks. simple trick for converting native files to .sldasm files.
How To Convert Solidwork Assembly Into A Single Piece Step File To properly convert them into an editable solidworks assembly, follow these steps: open solidworks. go to file → open. choose **step (.step, .stp) or parasolid (*.x t, *.x b). check "import multiple bodies as parts" to break the model into an assembly. set "assembly structure mapping" to define how bodies are treated (parts vs. assemblies). How to convert .step, .iges, or .sldprt files into flexible assemblies in solidworks 2018. this is especially useful for files downloaded from manufacturer websites that you need to use for complex, flexible assemblies in solidworks. simple trick for converting native files to .sldasm files.
