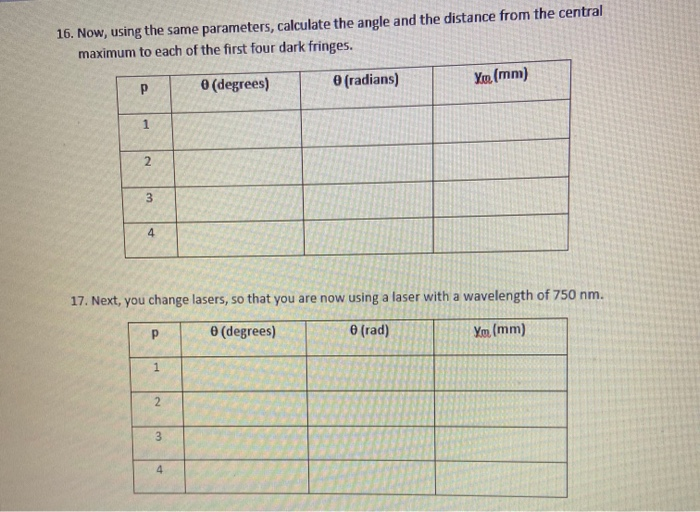

Solved Single Slit Diffraction Calculation 15 You Have A Chegg Lab manual for calculating laser wavelength using single slit diffraction. covers theory, procedure, and equations. physics optics, high school early college. The active formula below can be used to model the different parameters which affect diffraction through a single slit. enter the available measurements or model parameters and then click on the parameter you wish to calculate. this corresponds to a diffraction angle of θ = ° .
Single Slit Diffraction Laser Wavelength Calculation With a known wavelength laser, use d = nλ 2 to calculate the actual distance moved. the calibration constant of the interferometer is then k= d d'. all subsequent distance measurements with the micrometer should be multiplied by the calibration constant k. To determine the wavelength of laser light using single slit di rac tion pattern. 9.1 apparatus: helium neon laser or diode laser, a single slit with adjustable aperture width, optical detector and power meter. In part (b), the ray from the bottom travels a distance of one wavelength λ farther than the ray from the top. thus, a ray from the center travels a distance λ 2 less than the one at the bottom edge of the slit, arrives out of phase, and interferes destructively. This research aims to investigate determine the value of the laser wavelength produced by he ne lasers and diode lasers using the concept of diffraction at a single slit.
82 Single Slit Diffraction 822 Practice Problems Single Slit In part (b), the ray from the bottom travels a distance of one wavelength λ farther than the ray from the top. thus, a ray from the center travels a distance λ 2 less than the one at the bottom edge of the slit, arrives out of phase, and interferes destructively. This research aims to investigate determine the value of the laser wavelength produced by he ne lasers and diode lasers using the concept of diffraction at a single slit. It discusses the theory of fraunhoffer diffraction using a single slit, the experimental setup, procedure to collect intensity measurements across the diffraction pattern, and equations to calculate the wavelength from these measurements. We explore a precise method for determining the wavelength of light using a single slit diffraction experiment. normally, within a college level physics lab, an optical bench and a light detector arrangement is used in this experiment and the position of the maxima and minima are manually determined. The analysis of single slit diffraction is illustrated in figure 27.22. here we consider light coming from different parts of the same slit. according to huygens’s principle, every part of the wavefront in the slit emits wavelets. these are like rays that start out in phase and head in all directions. To study babinet’s principle, bring back the single slit in place of the wire and adjust the slit width until the observed diffraction pattern is the same as the wire.
Single Slit Diffraction Simulator Explerify It discusses the theory of fraunhoffer diffraction using a single slit, the experimental setup, procedure to collect intensity measurements across the diffraction pattern, and equations to calculate the wavelength from these measurements. We explore a precise method for determining the wavelength of light using a single slit diffraction experiment. normally, within a college level physics lab, an optical bench and a light detector arrangement is used in this experiment and the position of the maxima and minima are manually determined. The analysis of single slit diffraction is illustrated in figure 27.22. here we consider light coming from different parts of the same slit. according to huygens’s principle, every part of the wavefront in the slit emits wavelets. these are like rays that start out in phase and head in all directions. To study babinet’s principle, bring back the single slit in place of the wire and adjust the slit width until the observed diffraction pattern is the same as the wire.
Pdf Application Of Single Slit Diffraction To Measure 44 Off The analysis of single slit diffraction is illustrated in figure 27.22. here we consider light coming from different parts of the same slit. according to huygens’s principle, every part of the wavefront in the slit emits wavelets. these are like rays that start out in phase and head in all directions. To study babinet’s principle, bring back the single slit in place of the wire and adjust the slit width until the observed diffraction pattern is the same as the wire.
