Simulating G Code For Polar And Cylindrical Interpolation

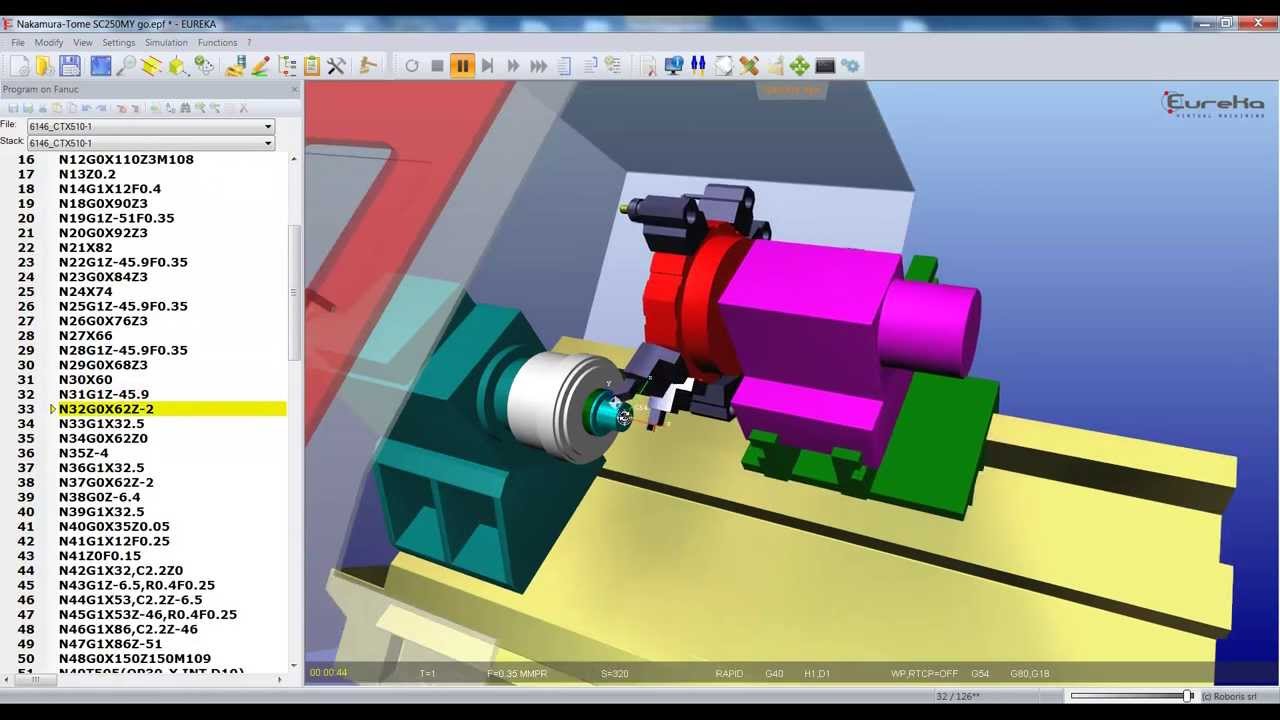

App2008 047 Polar Interpolation Pdf Cartesian Coordinate System Polar coordinate interpolation (g12.1) is a powerful but underused g code that allows programming linear moves in x c coordinates — perfect for milling bolt circles, keyways, or slots on cylindrical parts using a rotary axis. Thanks to a complete simulation of g code programs, pontential errors as collisions, out of limits and gouges on the machined part can be easily detected.

G Code Pdf Drilling Interpolation When you’re working with cnc code, understanding the g12.1 cycle and polar coordinates is crucial for achieving precise results. the g12.1 cycle is specifically designed for polar coordinate interpolation, which eliminates lines in the part and removes lines from c axis steps. This cnc circular interpolation tutorial will easily make you learn how to use g02 g03 g code. cnc programming of a component is easy if you divide the component on drawing…. The document provides an example of cylindrical interpolation using fanuc g07.1 code, detailing a cnc program with various g and m codes for machining operations. it includes specific programming instructions for tasks such as drilling, tapping, and boring cycles. [g112] polar coordinate interpolation mode : ge fanuc automation series 0i mate t c (g code a). preparatory and miscellaneous functions.

Fanuc G07 1 Cylindrical Interpolation Example Helman Cnc The document provides an example of cylindrical interpolation using fanuc g07.1 code, detailing a cnc program with various g and m codes for machining operations. it includes specific programming instructions for tasks such as drilling, tapping, and boring cycles. [g112] polar coordinate interpolation mode : ge fanuc automation series 0i mate t c (g code a). preparatory and miscellaneous functions. The polar “c” axis is converted to a linear “y” axis. another use of g7.1 is to chamfer a cross hole equally all the way around the hole. we use it to engrave around the outside of the part for shows. check parameter 1022 for c axis=6 (not 5) m5 (o ring groove) t909m50 (1 16 em) g28h0m23s5000 m83 g0g98x.675z [.625 .160]c0 g1x.434f5. The g16 command instructs the cnc machine to interpret the coordinates that are entered in the commands that follow it on a polar coordinate system. the x represents the distance (radius) and the y represents the angle in degrees relative to 3 o’clock orientation. Discover g15 and g16 g codes for switching between polar and cartesian coordinates, simplifying cnc programming for bolt circles efficiently. The field defines the rotary transformation mode: none, polar or cylindrical transformation. the tolerance defines the deviation of the transformed tool path from the ideal one.

Cnc Cylindrical Interpolation Program Example Helman Cnc The polar “c” axis is converted to a linear “y” axis. another use of g7.1 is to chamfer a cross hole equally all the way around the hole. we use it to engrave around the outside of the part for shows. check parameter 1022 for c axis=6 (not 5) m5 (o ring groove) t909m50 (1 16 em) g28h0m23s5000 m83 g0g98x.675z [.625 .160]c0 g1x.434f5. The g16 command instructs the cnc machine to interpret the coordinates that are entered in the commands that follow it on a polar coordinate system. the x represents the distance (radius) and the y represents the angle in degrees relative to 3 o’clock orientation. Discover g15 and g16 g codes for switching between polar and cartesian coordinates, simplifying cnc programming for bolt circles efficiently. The field defines the rotary transformation mode: none, polar or cylindrical transformation. the tolerance defines the deviation of the transformed tool path from the ideal one.
