Bs 8666 2005 Rebar Shape Code Pdf Pdf Computing And Have questions about buying bs shape code 67? chat with a specialist or call 01283 205930 (mon fri 7:30am 4pm). The values for minimum radius and end projection, r and p respectively, as specified in table 2, shall apply to all shape codes (see 7.6). the dimensions in parentheses are the free dimensions.

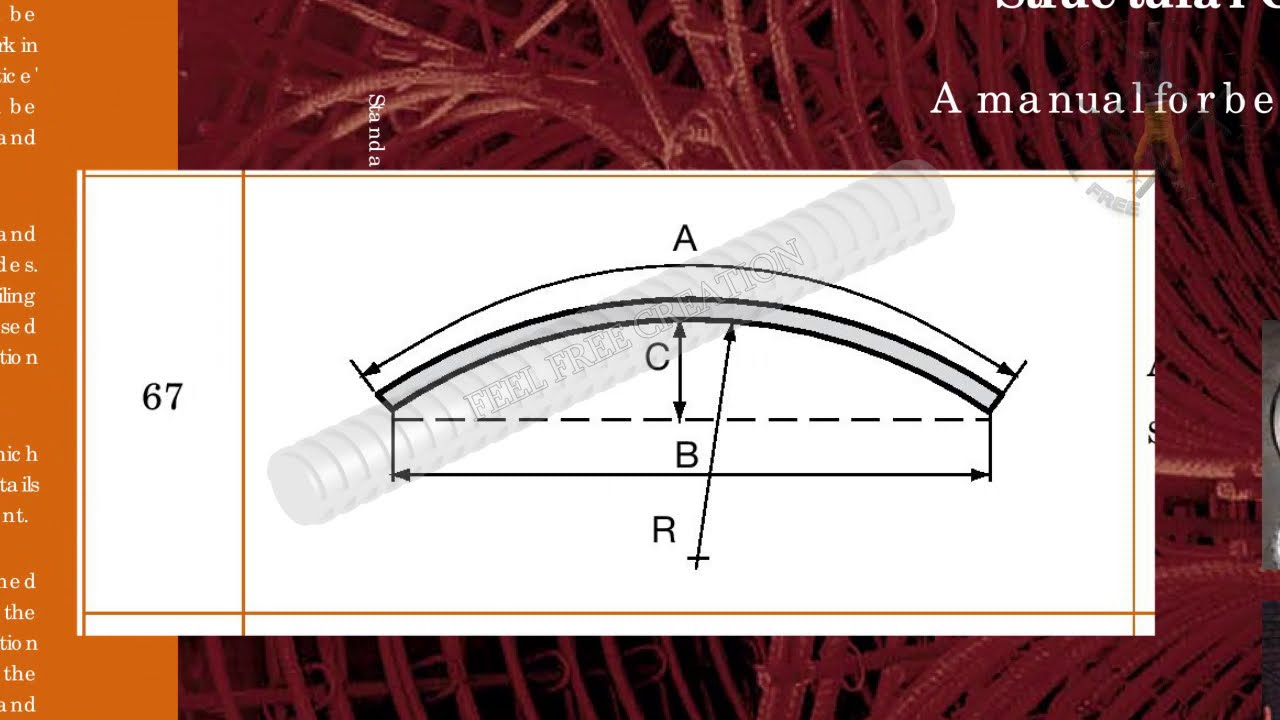

Uk Rebar Shape Codes Bs 8666 2005 Scheduling Dimensioning Bending Shape code 67 reports as a straight bar bs8666:2005 amendment 3 states that when shape code 67 exceeds a certain radius dependent on bar diameter it should be reported as a straight bar in the schedule. the radius of bending is stated in clause 10 on page 21 of the british standard. This document provides shape codes and equations to calculate the stock lengths for various reinforcement bar shapes according to bs 8666:2005. it shows diagrams of bar shapes labeled with letters for dimensions, and provides the shape code and length equation associated with each shape. A dimensional sketch shall be drawn the dimensim a to e evey shall be specified and the dimension that is to allow for permissible deviations shall be indicated in parenthesis, otherwise the fabricator is free to choose which shall allow tolerance. Açıklama cut and bent steel reinforcement bar in shape 67 shape code 67 represents a custom bent rebar, available in various sizes, ideal for specialized reinforcement applications in construction projects. all sizes available:.
Bs 8666 Reinforcement Shape Codes Pdf A dimensional sketch shall be drawn the dimensim a to e evey shall be specified and the dimension that is to allow for permissible deviations shall be indicated in parenthesis, otherwise the fabricator is free to choose which shall allow tolerance. Açıklama cut and bent steel reinforcement bar in shape 67 shape code 67 represents a custom bent rebar, available in various sizes, ideal for specialized reinforcement applications in construction projects. all sizes available:. Compare different rebar shape codes to find the best fit for your project. understand the specifications, applications, and variations to ensure precise reinforcement solutions. The values for minimum radius and end projection, r and p respectively, as specified in table 2, shall apply to all shape codes (see 7.6). the dimensions in parentheses are the free dimensions. Cut and bent steel reinforcement bar in shape 67. all sizes available: 10mm custom cut & bent rebar in shape 67. order online custom bent rebars at nextdaysteel or send us your rebar bending schedule. Note 4 stock lengths are available in a limited numer of lengths (e.g. 6m, 12m). dimension a for shape code 01 should be regarded as indicative and used for the purpose of calculating total length. actual delivery lengths should be by agreement with supplier.
