Selection Sets Gcadplus Various ways of making selection sets exist, such as using a window, setting a crossing box, or picking entities sequentially. you can change the object selection settings by clicking on a button in the properties window. Speed landscape cad drafting how to cycle through entities in a selection set gcadplus landscape design software 1.64k subscribers subscribed.
Support Gcadplus Here, we demonstrate how to utilize sppdb, an individual plant database application, with gcadplus to create a layout showcasing images of plant species used in a design. There are different ways of making selection sets, such as using a window, setting a crossing box, or picking entities sequentially. you can change the object selection settings by clicking on a button in the properties window. When using gcadplus, it is important to understand the use of various methods of selecting entities. many drafters do not completely understand that when they ‘pick’ an item (s) in a drawing using their pointing device, they are creating what is called a selection set. Here we make a selection of all entities in a drawing, then use the gcadplus properties box to filter all leaders in the design. once the leader entities are.

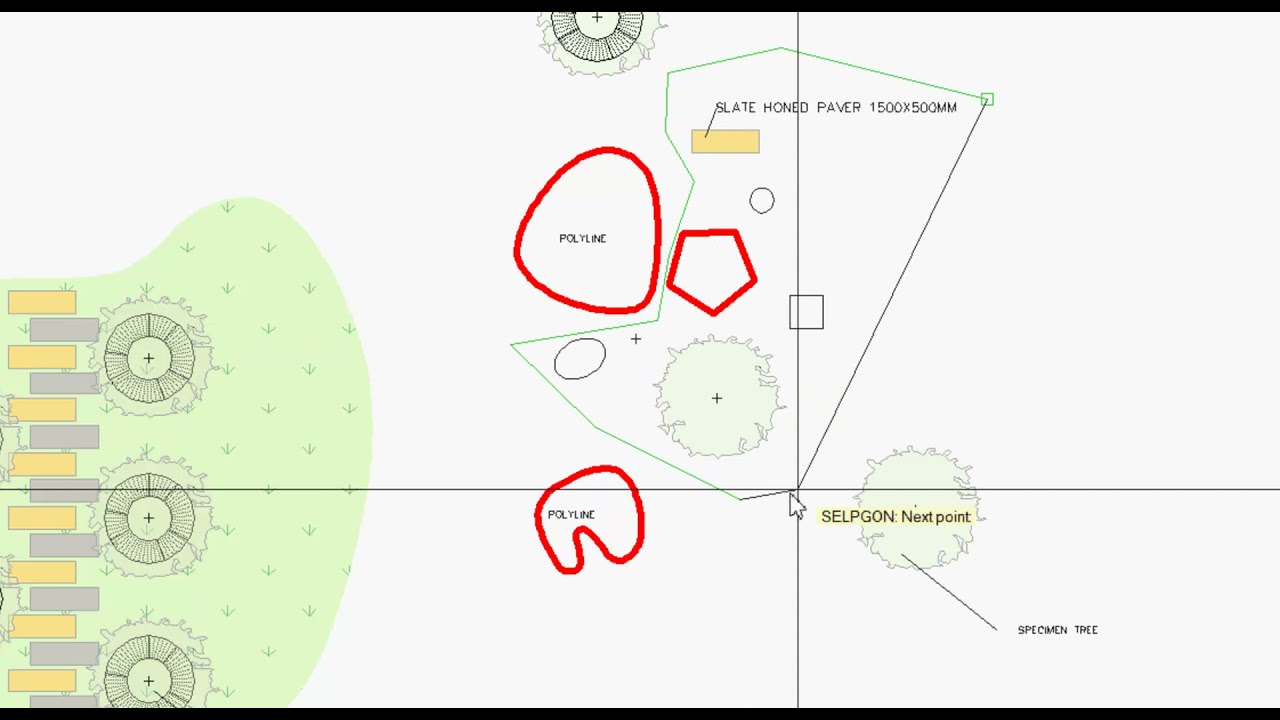

Download Gcadplus Gcadplus When using gcadplus, it is important to understand the use of various methods of selecting entities. many drafters do not completely understand that when they ‘pick’ an item (s) in a drawing using their pointing device, they are creating what is called a selection set. Here we make a selection of all entities in a drawing, then use the gcadplus properties box to filter all leaders in the design. once the leader entities are. Speed landscape cad drafting how to cycle entities in a selection set. here we show that drafting efficiency can be improved by using a crossing window to grab all entities in a crowded part of the drawing. we then change our focus to the properties box and filter the entity group till we isolate the desired entity. Gcadplus provides draworder tools to allow control over the stacking order of entities. although we have placed the options in the tools drop down menu, it is available via the modify toolbar. 1. getting to know gcadplus – a brief introduction to the gcadplus interface. 2. draw with gcadplus – a focus on using the draw commands in gcadplus. learn cad by designing a logo and complete a small design. 3. using entity snaps to aid precision accurately place new design information by building on existing geometry. 4. The steps are: select the gcadplus drop menu, then plant schedules and lists and finally “set data to plant”. this command and promts for selection of a particular symbol. right click to finish the tag.
Download Gcadplus Gcadplus Speed landscape cad drafting how to cycle entities in a selection set. here we show that drafting efficiency can be improved by using a crossing window to grab all entities in a crowded part of the drawing. we then change our focus to the properties box and filter the entity group till we isolate the desired entity. Gcadplus provides draworder tools to allow control over the stacking order of entities. although we have placed the options in the tools drop down menu, it is available via the modify toolbar. 1. getting to know gcadplus – a brief introduction to the gcadplus interface. 2. draw with gcadplus – a focus on using the draw commands in gcadplus. learn cad by designing a logo and complete a small design. 3. using entity snaps to aid precision accurately place new design information by building on existing geometry. 4. The steps are: select the gcadplus drop menu, then plant schedules and lists and finally “set data to plant”. this command and promts for selection of a particular symbol. right click to finish the tag.
