Schematic Representation Of The Applied Four Point Bending In this chapter, we review how the brittle nature of glass requires specific attention in the design, manufacturing, and construction of point‐fitted glass; glass floors and stairs; balustrades. Figure 2 schematic representation of the four point bending set up. the dic set up was capable of measuring the displacement and deformatior field at both the side and the bottom surface of the beams.

6 Schematic Representation Of The Four Point Bending Test With Variant
6 Schematic Representation Of The Four Point Bending Test With Variant

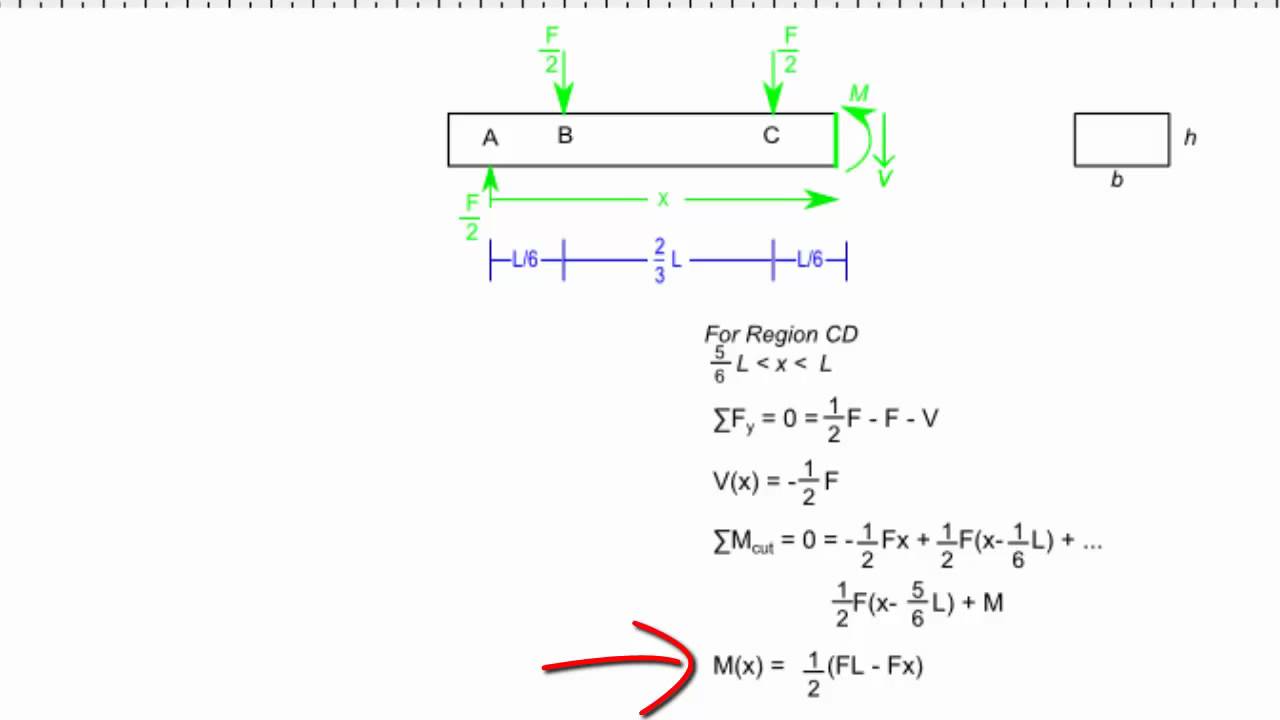

6 Schematic Representation Of The Four Point Bending Test With Variant Four point bending (fpb) is a cornerstone element of the beam flexure portion of a sophomore level mechanics of materials course. the fpb lecture has traditionally developed the theory from free body diagram through beam deflection, with related homework problems providing analytical practice. Schematic illustration of requirements on the four point bending device: (a) desired (green) and undesired (red) resultants at the cross section of a schematic specimen; (b) tipping of a thin but high specimen. The 4 point dynamic bending test is used for the investigation of pavement material properties like stiffness modulus and fatigue characteristics. the purpose of this document is to give an overview of the equations which govern the interpretation of the measurements. (eq. 4.1 and 4.2) where m is the moment (or torque) applied at the middle of the specimen, y is the distance from the center of the specimen to the convex surface (point b in figure), and i is the “polar moment of inertia,”.

A Schematic Representation Of The Four Point Bending Test Configuration
A Schematic Representation Of The Four Point Bending Test Configuration

A Schematic Representation Of The Four Point Bending Test Configuration The 4 point dynamic bending test is used for the investigation of pavement material properties like stiffness modulus and fatigue characteristics. the purpose of this document is to give an overview of the equations which govern the interpretation of the measurements. (eq. 4.1 and 4.2) where m is the moment (or torque) applied at the middle of the specimen, y is the distance from the center of the specimen to the convex surface (point b in figure), and i is the “polar moment of inertia,”. Free shear and moment diagram calculator for simply supported and cantilever beams. add point loads, udls, and applied moments to get shear force and bending moment diagrams instantly. find max values and critical sections. try it free!. Since the implementation of the shrp program in the usa, the four point bending testing has been one of the most frequently used testing apparatus to characterize the fatigue life and flexural stiffness of asphalt mixtures. 3 point bending test: it produces its peak stress at the material mid point and reduced stress elsewhere. 4 point bending test: it produces peak stresses along an extended region of the material hence exposing a larger length of the material. 4 point bending is an often used loading mode to bend beam shaped specimens. the advantage of 4pb is the homogeneous bending moment between the inner support points. a novel 4pb device for in situ scanning electron microscopy (sem) was developed at fraunhofer ikts (figure 1).
