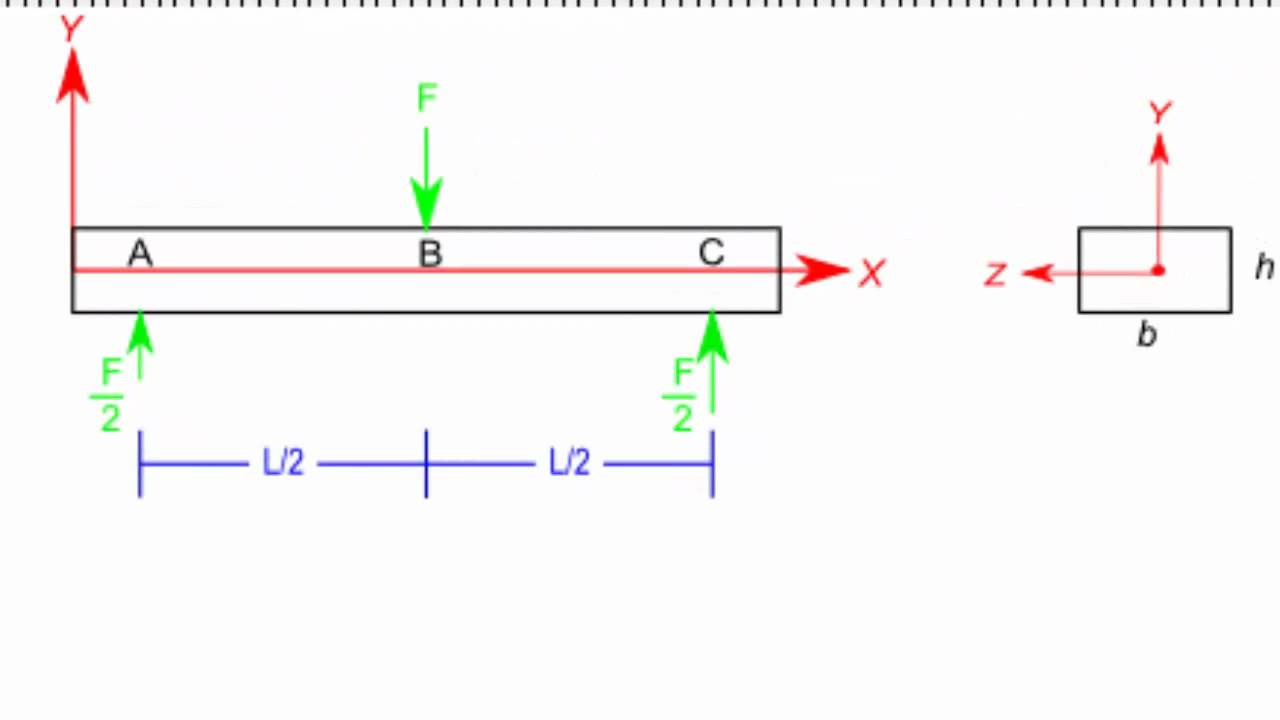

Schematic Diagram Of The Three Point Bending Angle Experiment The specimen used for the three point bending test is a beam similar to the one sketched in figure 3. the use of a span much larger than the cross sectional height is intended to mitigate the effects of shear deformation and to replicate the assumptions of the euler bernoulli beam theory. Figure 2 shows the standard schematic diagram and the css 44100 electro mechanical universal testing machine of the three point bending experiment, in which the trtwt is placed on two.

Schematic Diagram And Three Point Bending Experiment A Schematic Three point bending test provides values for the modulus of elasticity in bending and the flexural stress–strain response of the material. this test is performed on a universal testing machine (tensile testing machine or tensile tester) with a three point or four point bend fixture. You will perform a “three point bending” experiment in this lab using a tensile (and bending) testing machine made by instron. the schematic of the test is shown in the following figure. In this laboratory exercise you will measure the bending strains in two 6061 aluminum i beams using strain gages. you will then use this information to calculate the stresses that correspond to the measured strains. Home about aims & scope editorial board young academic editors subscription volumes & issues in press current issue archive most read most download most cited special.

Three Point Bending Experiment Information A Schematic Diagram B In this laboratory exercise you will measure the bending strains in two 6061 aluminum i beams using strain gages. you will then use this information to calculate the stresses that correspond to the measured strains. Home about aims & scope editorial board young academic editors subscription volumes & issues in press current issue archive most read most download most cited special. We're here to help. a three point bend test is performed on a round rod as shown in figure 1. as a downward force (f) is applied in the middle of the rod, the flex (Δx) is recorded. the ratio (f Δx) is the effective stiffness of the length of rod being tested. Explore the three point bending flexural test with this complete guide covering its purpose, process, and real world applications. In this research, fracture toughness of the welding zone in gas and oil transfer pipelines (made in steel api x65) was calculated by a three point bending test experimental method. Two following equations: (eq. 1.1 and 1.2) where m is the moment (or torque) applied at the middle of the specimen, y is the distance from the center of the specimen to the convex surface, i is the “polar moment of inertia,” a term used to define how the geometry of the specimen influences its reaction to loads, and m is the slope of the line.

Three Point Bending Experiment Information A Schematic Diagram B We're here to help. a three point bend test is performed on a round rod as shown in figure 1. as a downward force (f) is applied in the middle of the rod, the flex (Δx) is recorded. the ratio (f Δx) is the effective stiffness of the length of rod being tested. Explore the three point bending flexural test with this complete guide covering its purpose, process, and real world applications. In this research, fracture toughness of the welding zone in gas and oil transfer pipelines (made in steel api x65) was calculated by a three point bending test experimental method. Two following equations: (eq. 1.1 and 1.2) where m is the moment (or torque) applied at the middle of the specimen, y is the distance from the center of the specimen to the convex surface, i is the “polar moment of inertia,” a term used to define how the geometry of the specimen influences its reaction to loads, and m is the slope of the line.
