Reverse Time Migration Pdf Reflection Seismology Computing A tutorial on reverse time migration. contribute to antongrin rtm migration tutorial development by creating an account on github. In this tutorial, we will introduce the back propagation operator. this operator simulates the adjoint wave equation, that is a wave equation solved in a reversed time order. this time reversal led to the naming of the method we present here, called reverse time migration.

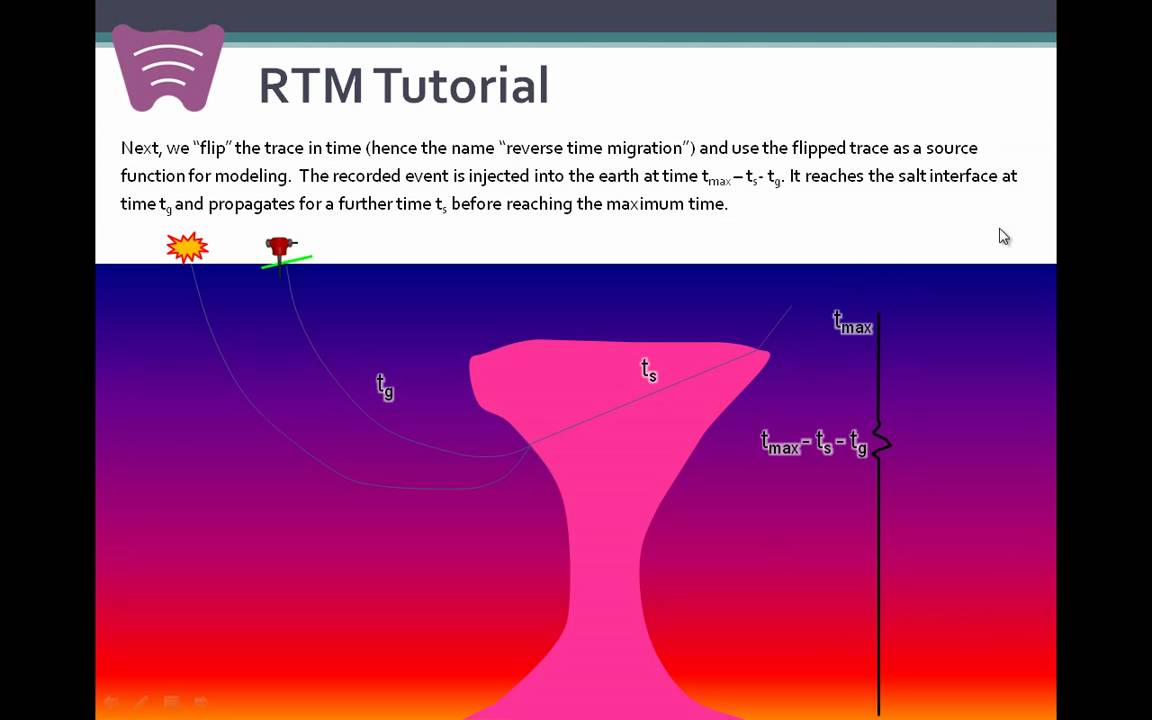

Github Antongrin Rtm Migration Tutorial A Tutorial On Reverse Time The goal of this lab is to get you to familiarize with coding wave propagation and reverse time migration (rtm). you will be given a module that contains all the necessary subroutines for rtm. Tutorial for reverse time migration (rtm) created by wave imaging technology inc. and narrated by morgan brown, ceo. the tutorial is excerpted from a presentation given by dr. brown at. Objective: calculate synthetic seismograms, forward wave field and back propagating wave field by a 2 4 fd solution to the wave equation for a point source at the surface. adjust code so the data recorded at the surface is migrated by reverse time migration over all the shots. Reverse time migration (rtm) is an important seismic imaging technique used for producing an accurate representation of the subsurface. we adopted the methodology by solving acoustic wave equation in time domain with hybrid boundary condition for the migration.
Reverse Time Migration Rtm Sem Pdf Objective: calculate synthetic seismograms, forward wave field and back propagating wave field by a 2 4 fd solution to the wave equation for a point source at the surface. adjust code so the data recorded at the surface is migrated by reverse time migration over all the shots. Reverse time migration (rtm) is an important seismic imaging technique used for producing an accurate representation of the subsurface. we adopted the methodology by solving acoustic wave equation in time domain with hybrid boundary condition for the migration. Reverse time migration, albeit its simple and elegant implementation (migration principles), has not been used widely in practice. again, this is primarily because it requires very small extrapolation step in time, which increases the computational cost of the algorithm. Rtm is a python package for locating infrasound sources using reverse time migration (rtm). infrasound (or seismic) waveform data are back projected over a grid of trial source locations. Reverse time migration (rtm), being based on the two way wave equation, can accurately account for wave propagation in both up and down directions. In this tutorial, we will introduce the back propagation operator. this operator simulates the adjoint wave equation, that is a wave equation solved in a reversed time order. this time reversal led to the naming of the method we present here, called reverse time migration.
