Teletype This plug and play adapter eliminates these problems by providing a simple plug in interface to the teletype from which it obtains power and access to the teletype data loops. the adapter also provides a current loop to rs 232 conversion which terminates into a standard rj 14 modular jack. The easiest way to interface a teletype to an rs 232 serial port is with this plug and play teletype to rs 232 adapter. if you'd rather build something yourself, following is an easy to build rs 232 to current loop interface for the teletype.

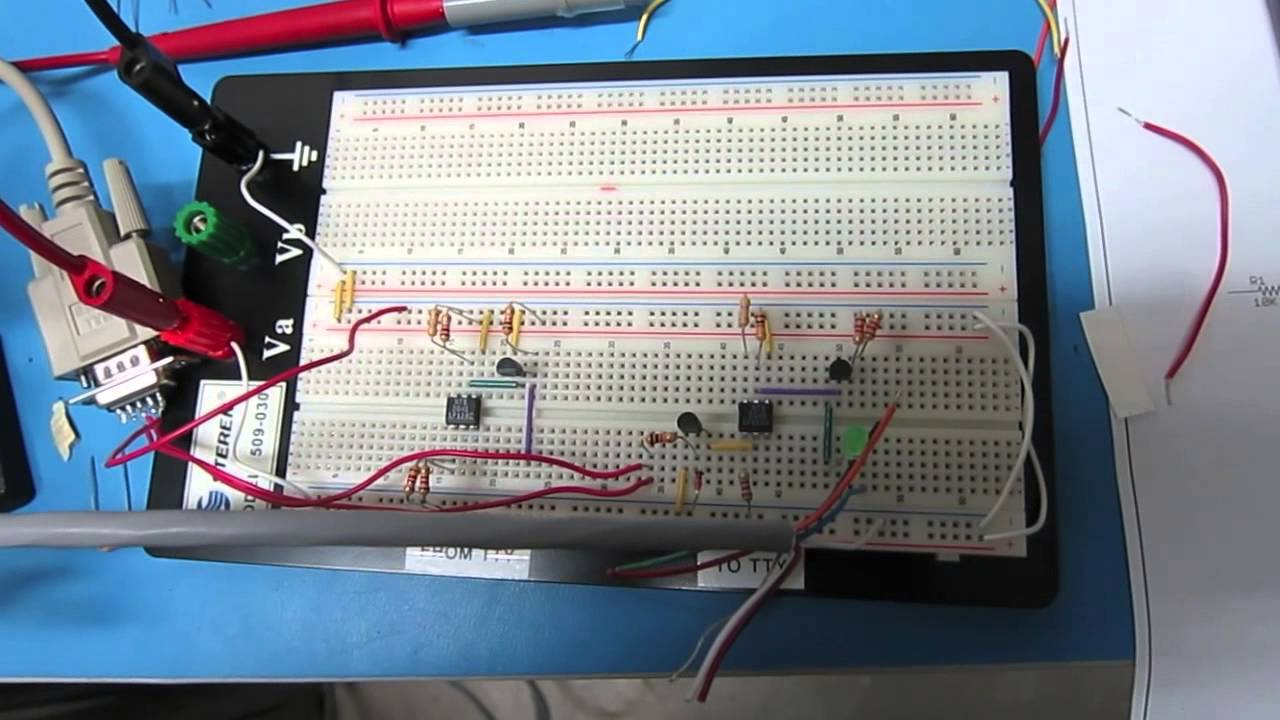

Altair 8800 Clone Rs 232 Interface For The Teletype Asr 33 Rs232 to 20ma current loop converter for the asr33 teletype. To the right is a max232 based ttl to rs232 converter, that connects with a ribbon cable to the db9 port on the front. a switch between the max232 tx pin and the arduinos rx pin is required to toggle between the arduino onboard usb and the max232 rs232 connection. The "asr 33 teletype" is surely an eye catcher, but difficult to manage because of its 20ma interface. "tty2pi" is a project to access the asr 33 over rs232 port, and or connect it to a raspberry pi zero w, which forwards data flow over wlan or other ports. About rs232 to teletype converter. baudot mtk 2 terminal. Конвертер интерфейса rs232 в интерфейс телетайпа. Терминал кода МТК 2.
Teletype Model 33 Sn Xyz Theretrowagon The "asr 33 teletype" is surely an eye catcher, but difficult to manage because of its 20ma interface. "tty2pi" is a project to access the asr 33 over rs232 port, and or connect it to a raspberry pi zero w, which forwards data flow over wlan or other ports. About rs232 to teletype converter. baudot mtk 2 terminal. Конвертер интерфейса rs232 в интерфейс телетайпа. Терминал кода МТК 2. I've developed a small board that provides a plug and play connection between a teletype model 33 and an rs 232 serial port. here's a link to a video that demonstrates the new board. Got this ancient teletype sitting in your cellar? here you'll learn how you can connect this amazing piece of communications history to your computer via standard rs232 serial line and print var log messages or whatever using a small perl program. Attach rs232 output pins 2&3 to positive, pin 7 to the return. type a key on the keyboard (or advance the reader) while the teletype is in line mode. with 2 and 3 connected on the rs232 end, you'll get the characters echoed back to the teletype printer and the signal will appear on your oscilloscope. the above linked photo has settings you can try. Converting the 20ma current loop to rs232 is the correct way to go. if you have done that correctly, you can do a simple loop back test by tying pins 2 and 3 together of the db9 rs232 connector.
Teletype Monome For Vcv Rack I've developed a small board that provides a plug and play connection between a teletype model 33 and an rs 232 serial port. here's a link to a video that demonstrates the new board. Got this ancient teletype sitting in your cellar? here you'll learn how you can connect this amazing piece of communications history to your computer via standard rs232 serial line and print var log messages or whatever using a small perl program. Attach rs232 output pins 2&3 to positive, pin 7 to the return. type a key on the keyboard (or advance the reader) while the teletype is in line mode. with 2 and 3 connected on the rs232 end, you'll get the characters echoed back to the teletype printer and the signal will appear on your oscilloscope. the above linked photo has settings you can try. Converting the 20ma current loop to rs232 is the correct way to go. if you have done that correctly, you can do a simple loop back test by tying pins 2 and 3 together of the db9 rs232 connector.
Teletype To Rs232 Converter Attach rs232 output pins 2&3 to positive, pin 7 to the return. type a key on the keyboard (or advance the reader) while the teletype is in line mode. with 2 and 3 connected on the rs232 end, you'll get the characters echoed back to the teletype printer and the signal will appear on your oscilloscope. the above linked photo has settings you can try. Converting the 20ma current loop to rs232 is the correct way to go. if you have done that correctly, you can do a simple loop back test by tying pins 2 and 3 together of the db9 rs232 connector.
