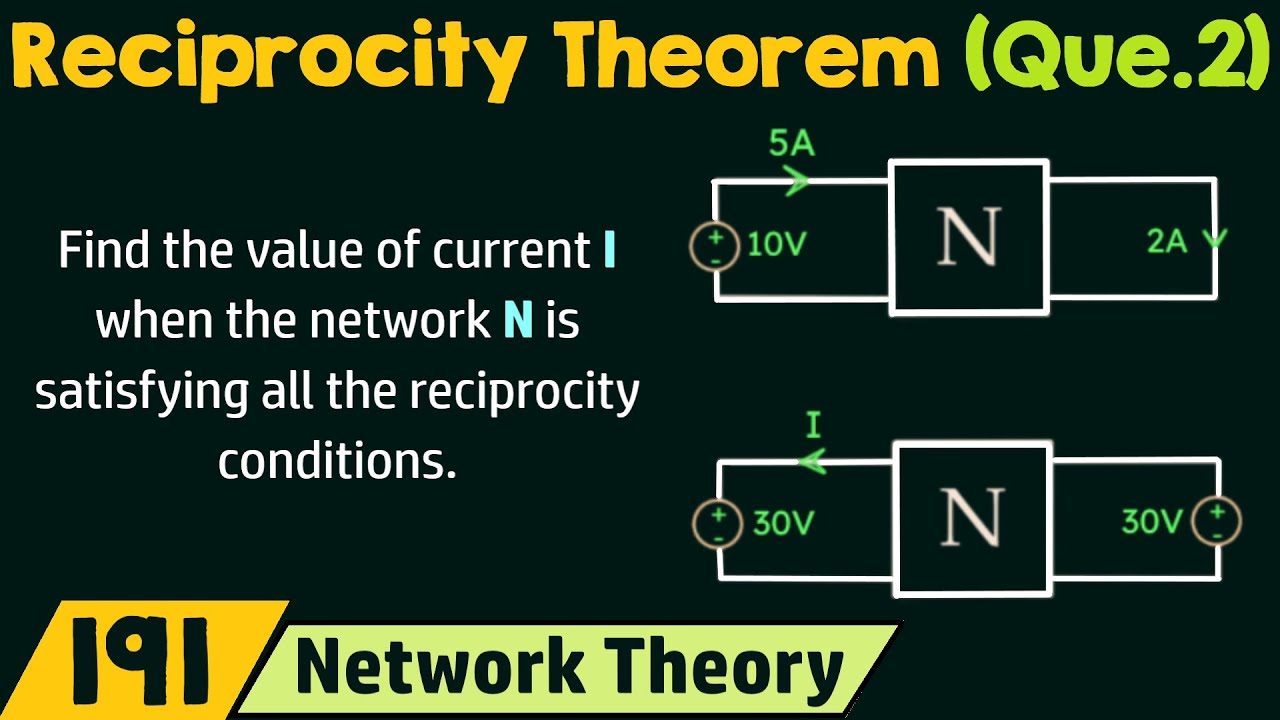

Reciprocity Theorem Problem 2

Reciprocity Theorem Pdf Reciprocity theorem: this theorem is applicable to only linear, passive and bilateral networks, that is, the network with r, l, c, so the network with rlc is called reciprocal network. Understand the reciprocity theorem in electrical engineering, including its statement, formula, diagram, applications, and examples for simplified circuit analysis.

Reciprocity Theorem Pdf If the current through ab is same as the value of iy in the step 1, we can say that the reciprocity theorem is verified. to calculate the current let us again prefer loop current method to other methods. In simple terms, the reciprocity theorem states that if you swap the locations of a voltage source and an ammeter in any linear, bilateral electrical network, the reading on the ammeter will remain exactly the same. Explanation: according to reciprocity theorem, the voltage source and the resulting current source may be interchanged without a change in current. therefore the theorem is applicable only to single source networks. Network theory: solved question on reciprocity theorem topics discussed: 1) the use of reciprocity theorem superposition theorem in solving the networks .more.

Reciprocity Theorem Pdf Group 1 Pdf Explanation: according to reciprocity theorem, the voltage source and the resulting current source may be interchanged without a change in current. therefore the theorem is applicable only to single source networks. Network theory: solved question on reciprocity theorem topics discussed: 1) the use of reciprocity theorem superposition theorem in solving the networks .more. Lecture 30 reciprocity theorem theorems in electromagnetics. with it we can develop physical intuition to ascertain if a certain design o experiment is right or wrong. it also tells us what is possible or impossible. Information about reciprocity theorem (problem 2) covers all important topics for electronics and communication engineering (ece) 2024 exam. find important definitions, questions, notes, meanings, examples, exercises and tests below for reciprocity theorem (problem 2). For current sources, it states that a current source can be moved to the node with the original voltage, and it will produce the same voltage in the original location. the document provides steps for applying the reciprocity theorem and examples verifying it for different circuits. In short, a linear network is said to be reciprocal if it remains invariant due to the interchange of position of cause (source) and effect (linear elements) in the network.
