Ratio Control System

Ratio Control Pdf Electrical Engineering Here in a ratio control system, the process variable of one controller becomes the setpoint for another, such that two process variables remain in constant proportion (ratio) to one another. Although you may not have given it much thought while taking your shower, you were engaged in a control strategy known as ratio control, where the ratio of one flow rate to another is controlled for some desired outcome.

Questions On Ratio Control System Instrumentationtools Ratio control can be defined as a type of feedforward control and it is widely used in the process industries. the purpose of the ratio control is to maintain the ratio of the two process variable at a specified value. Ratio control is a type of feed forward control strategy designed to maintain a constant ratio between two process variables, typically flow rates. this ensures that disturbances in one variable are compensated by proportional changes in the other. Industrially, ratio control is applied extensively. a common example is mixing reagents in a given ratio to a chemical reactor. one of the earliest automatic devices applying this principle is the carburetor (ca. 1890), which mixes air and fuel in a desired ratio for combustion engines. Ratio control is the most elementary form of feed forward control. these control systems are almost exclusively applied to flow rate controls. there are many common usages of ratio controls in the context of chemical engineering. they are frequently used to control the flows on chemical reactors.

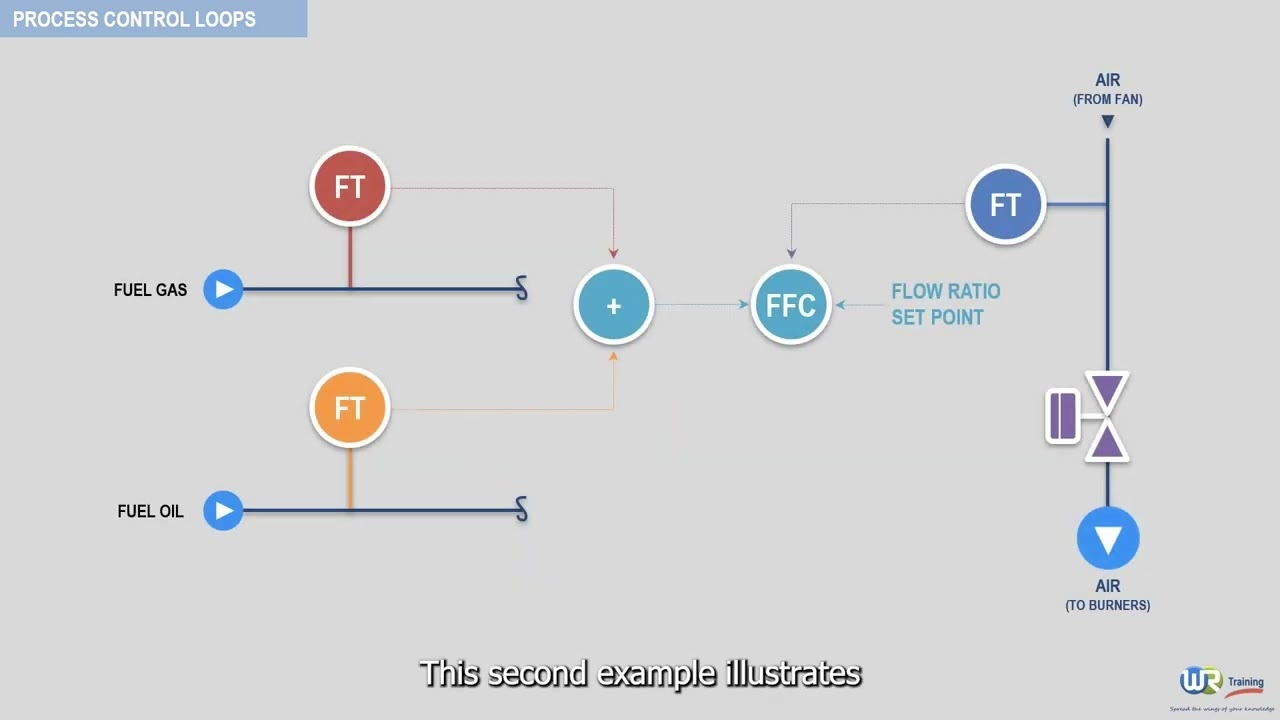

Ratio Control System Pptx Industrially, ratio control is applied extensively. a common example is mixing reagents in a given ratio to a chemical reactor. one of the earliest automatic devices applying this principle is the carburetor (ca. 1890), which mixes air and fuel in a desired ratio for combustion engines. Ratio control is the most elementary form of feed forward control. these control systems are almost exclusively applied to flow rate controls. there are many common usages of ratio controls in the context of chemical engineering. they are frequently used to control the flows on chemical reactors. Ratio control systems are a crucial component in various industrial processes, ensuring that the ratio of two or more process variables is maintained within a desired range. in this comprehensive guide, we will explore the design, implementation, and optimization of ratio control systems. Rather than using a relay, we present an alternative ratio control architecture based on a flow fraction controller (ffc). the ffc is essentially a “pure” ratio controller in that it receives the wild feed and controlled feed signals directly as inputs. Ratio control is a method where the flow of one material automatically adjusts itself based on the flow of another material. the goal is to maintain a constant proportion between two streams. whenever the primary flow changes, the secondary flow instantly follows it so the ratio remains the same. In simple ratio control, one flow is declared to be the primary. this flow is set to meet higher level requirements such as plant throughput or furnace temperature. the second flow is the secondary and is manipulated to maintain the set flow ratio.

What Is Ratio Control System Industrial Automation Industrial Ratio control systems are a crucial component in various industrial processes, ensuring that the ratio of two or more process variables is maintained within a desired range. in this comprehensive guide, we will explore the design, implementation, and optimization of ratio control systems. Rather than using a relay, we present an alternative ratio control architecture based on a flow fraction controller (ffc). the ffc is essentially a “pure” ratio controller in that it receives the wild feed and controlled feed signals directly as inputs. Ratio control is a method where the flow of one material automatically adjusts itself based on the flow of another material. the goal is to maintain a constant proportion between two streams. whenever the primary flow changes, the secondary flow instantly follows it so the ratio remains the same. In simple ratio control, one flow is declared to be the primary. this flow is set to meet higher level requirements such as plant throughput or furnace temperature. the second flow is the secondary and is manipulated to maintain the set flow ratio.

What Is Ratio Control Example Of Ratio Control System Ratio control is a method where the flow of one material automatically adjusts itself based on the flow of another material. the goal is to maintain a constant proportion between two streams. whenever the primary flow changes, the secondary flow instantly follows it so the ratio remains the same. In simple ratio control, one flow is declared to be the primary. this flow is set to meet higher level requirements such as plant throughput or furnace temperature. the second flow is the secondary and is manipulated to maintain the set flow ratio.
