Eurocode Load Combinations Structural Steelwork Pdf Bcsa Is it possible to automatically generated load combinations as per eurocode in staad.pro? yes, the load combination by using eurocode rules can be generated by uisng a vba macro which can be run by going to utilities > user tools > euro code load combination generator. On the utilities ribbon tab, select the user tools > euro code load combination generator tool in the user tools group. the eurocode combination generator dialog opens. select the equation number to use for the generation of load combinations. optional: specify a start combination number.

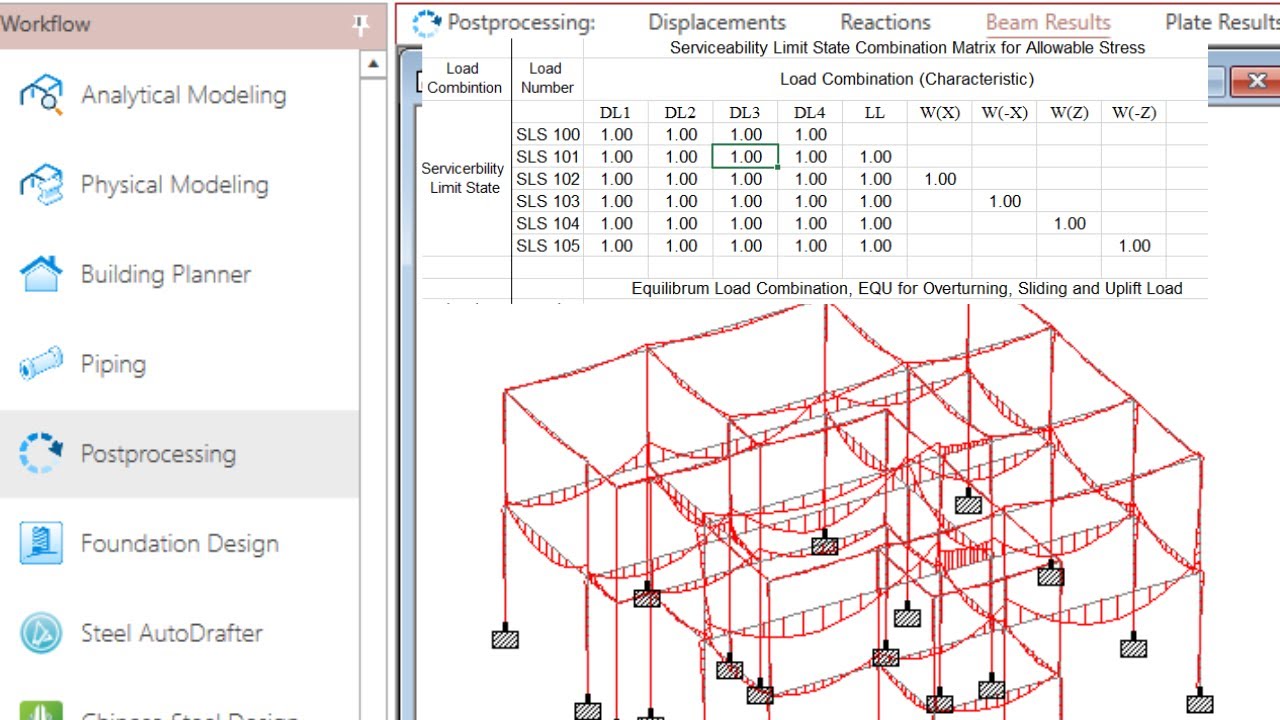

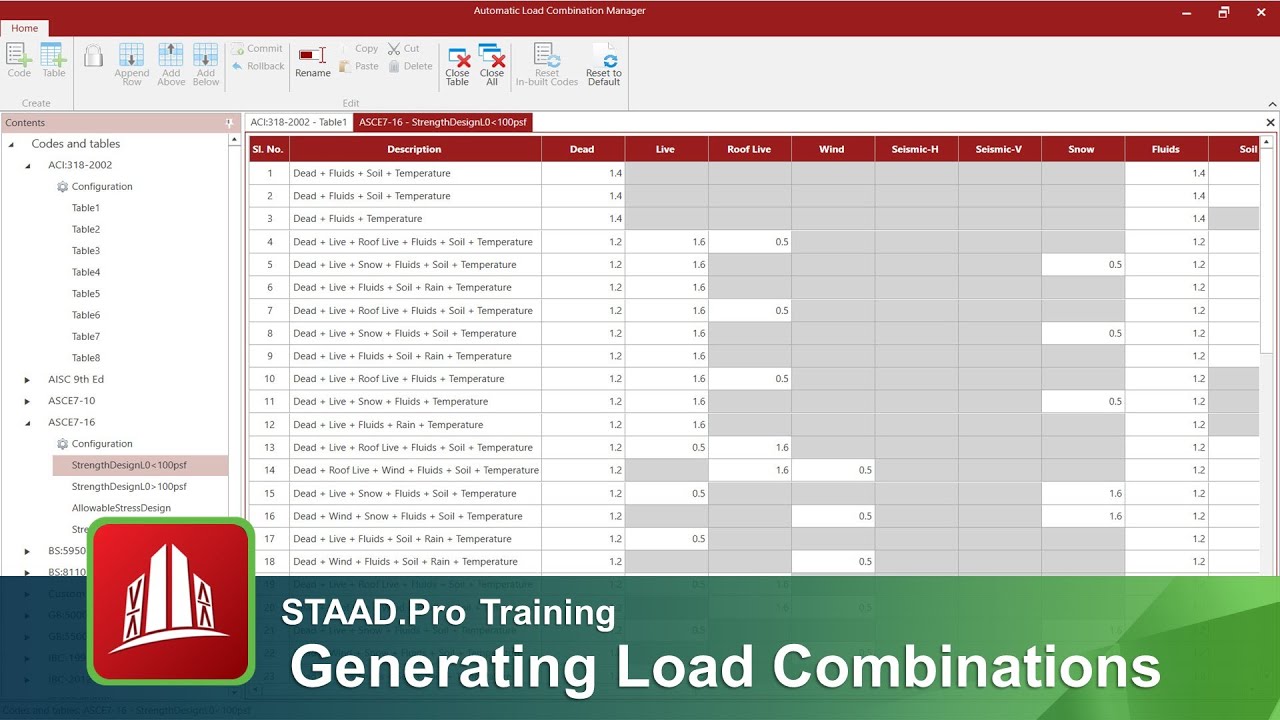

Load Combinations Eurocode Examples At Tia Thomas Blog Good day guys, today i am going to show you how to create automatic load combination using eurocode on staad pro connect edition. This document describes a new feature in staad.pro v8i that generates load combinations for the strength limit state according to eurocode standard en 1990:2002 a1:2005. the feature allows the user to select the equation to use from equations 6.10, 6.10a, or 6.10b and specify load factors. Once we generate the load combinations by using the eurocode load combination generator, we will see that there are some combinations where load case 3 and load case 4 are included simultaneously, which is not realistic. Whenever one uses the euro code load combination generator in staad.pro, there are few conditions which must be satisfied in the staad.pro model: 1) make sure that each primary load case has its loading type set to an appropriate category.
Eurocode Load Case Examples Archives Engineering Concepts Once we generate the load combinations by using the eurocode load combination generator, we will see that there are some combinations where load case 3 and load case 4 are included simultaneously, which is not realistic. Whenever one uses the euro code load combination generator in staad.pro, there are few conditions which must be satisfied in the staad.pro model: 1) make sure that each primary load case has its loading type set to an appropriate category. To automatically generate load combinations based on predefined rules for load types, use the following procedure. Could it be that several staad.pro instances are opened at the same time? please try to keep only a single staad.pro model opened and the perform the load combination generation and see if that works. To define new or to edit existing rules for generating automatic load combinations using the eurocode methodology, use the following procedure. On the utilities ribbon tab, select the user tools > euro code load combination generator tool in the user tools group. the eurocode combination generator dialog opens. select the equation number to use for the generation of load combinations. (optional) specify a start combination number.
