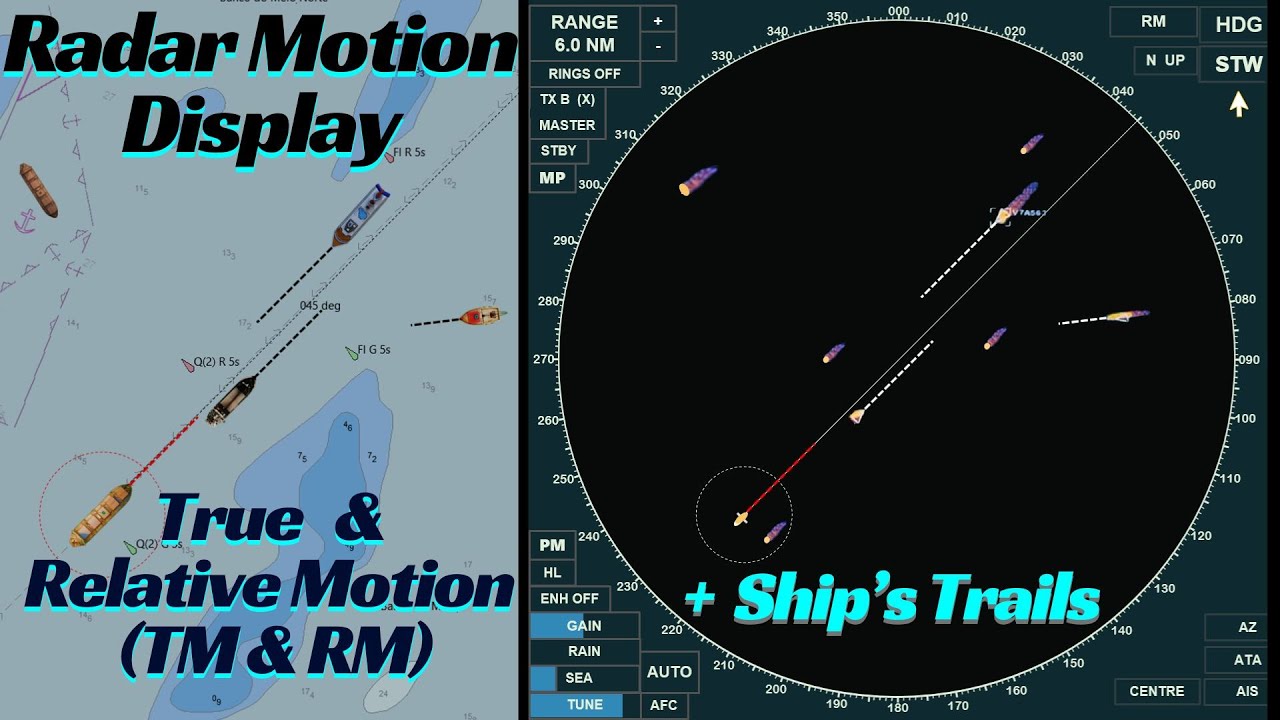

Ship Motion Detector With Radar Level Sensor Abm Sensor Technology This video covers radar motion displays. it shows the difference between true & relation motion with the ship's trails and vectors. more. How to use the spx scan conversion library to support displays based on true or relative motion, with target history shown as true or relative trails in a different colour.

Chapter 2 Radar Operation Relative And True Motion Displays Pdf In coastal and confined waters, navigators often select relative motion true trails (rmtt), as it provides the illusion of true motion while retaining the advantages of relative motion. The radar picture aligns with the chart, which makes it easy to understand. in my experience, every captain i’ve worked with uses this mode — even during narrow passages and port approaches. It displays a trail whose a.w. indicates the direction of the tide going away. target b has a true trail which is slightly shorter than own vessel w.o. and so the o.a. shows that the target is dropping back. Depending upon the type of ppi display used, navigational radars are classified as either relative motion or true motion radars. however, truemotion radars can be operated with a relative motion display.

The Relative Motion Relationship Of Unmanned Ship Tracking Target It displays a trail whose a.w. indicates the direction of the tide going away. target b has a true trail which is slightly shorter than own vessel w.o. and so the o.a. shows that the target is dropping back. Depending upon the type of ppi display used, navigational radars are classified as either relative motion or true motion radars. however, truemotion radars can be operated with a relative motion display. 📹 this video explores radar motion displays, highlighting the differences between true motion and relative motion, complete with ship trails and vectors. 🌍 **true motion**:. The document explains the differences between true motion and relative motion displays on navigational radars. true motion shows actual target movements, while relative motion displays targets in relation to the observing ship's movement. With relative trail, the relative movement of other vessels based on your own ship's movement is displayed. on the other hand, with true trail, the true movement of the other ships, relative to the land and not your ship, is displayed. therefore, there are no trails for stationary ships. True vectors allow users to determine the aspect of a target at a glance, something otherwise requires manual plotting. relative vectors provide, at a glance, information about which vessels pose a collision risk; a rv pointing at the centre of the radar screen indicates a risk of collision.

Radar Collision Avoidance Relative Trails Poor Mans Arpa 📹 this video explores radar motion displays, highlighting the differences between true motion and relative motion, complete with ship trails and vectors. 🌍 **true motion**:. The document explains the differences between true motion and relative motion displays on navigational radars. true motion shows actual target movements, while relative motion displays targets in relation to the observing ship's movement. With relative trail, the relative movement of other vessels based on your own ship's movement is displayed. on the other hand, with true trail, the true movement of the other ships, relative to the land and not your ship, is displayed. therefore, there are no trails for stationary ships. True vectors allow users to determine the aspect of a target at a glance, something otherwise requires manual plotting. relative vectors provide, at a glance, information about which vessels pose a collision risk; a rv pointing at the centre of the radar screen indicates a risk of collision.

Understanding Relative Motion Concepts Relative Velocity Problems With relative trail, the relative movement of other vessels based on your own ship's movement is displayed. on the other hand, with true trail, the true movement of the other ships, relative to the land and not your ship, is displayed. therefore, there are no trails for stationary ships. True vectors allow users to determine the aspect of a target at a glance, something otherwise requires manual plotting. relative vectors provide, at a glance, information about which vessels pose a collision risk; a rv pointing at the centre of the radar screen indicates a risk of collision.
