Phased Array Radar Cpi Data Cube Download Scientific Diagram Using examples of varying complexity, it outlines the steps needed to build a radar data cube in matlab and how to apply beamforming, matched filtering, and doppler processing with phased array system toolbox to determine the range and speed of a moving object. You can design end to end phased array systems and analyze their performance under different scenarios using synthetic or acquired data.
Phased Array Radar Cpi Data Cube Download Scientific Diagram Build a radar data cube for two systems: an eight element uniform linear array with a single radar target, and an array with 121 elements mounted on the surface of a sphere and 20 targets. Phased array design and analysis phased array system toolbox enables you to model and analyze the behavior of common array geometries and user defined array geometries. Processing this data cube yields target range, velocity, and azimuth information. below, simulated data is used to design a phased array system and analyze its performance under different scenarios. Many radar signal processing operations in phased array system toolbox™ software correspond to processing lower dimensional subsets of the radar data cube. the subset could be a one dimensional subvector or a two dimensional submatrix.

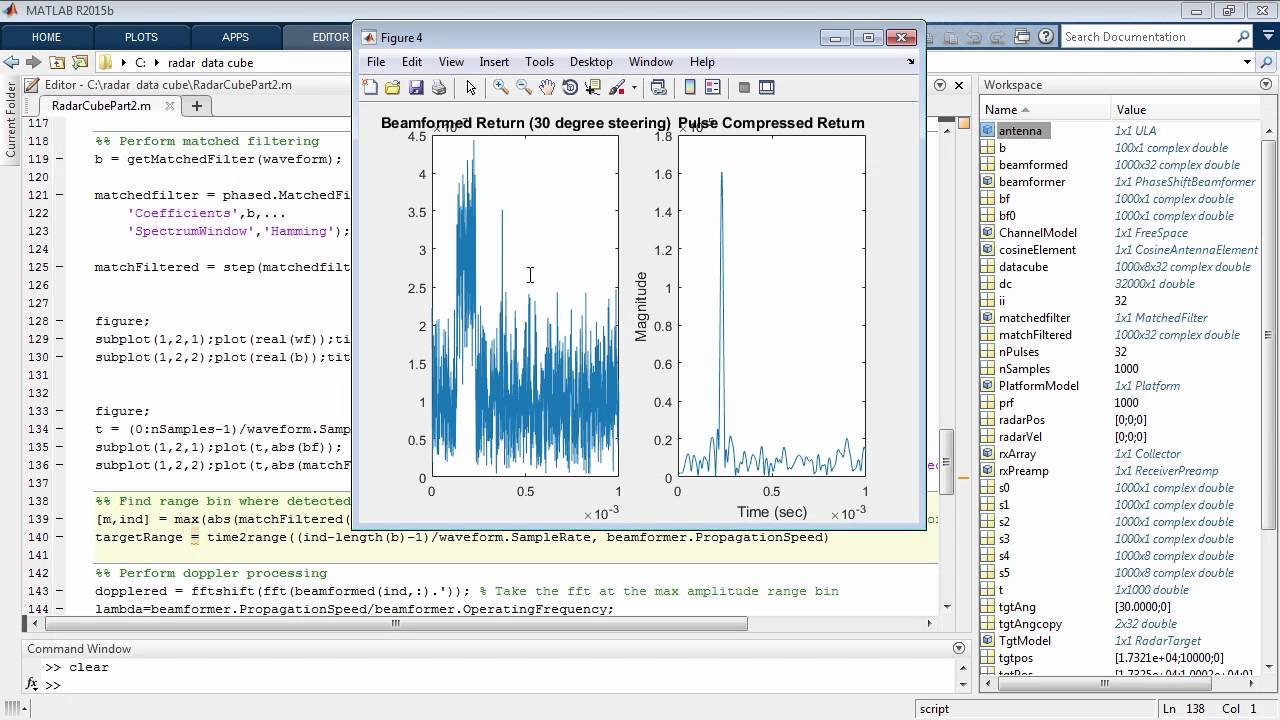

What Is Phased Array System Toolbox Video Matlab Simulink Processing this data cube yields target range, velocity, and azimuth information. below, simulated data is used to design a phased array system and analyze its performance under different scenarios. Many radar signal processing operations in phased array system toolbox™ software correspond to processing lower dimensional subsets of the radar data cube. the subset could be a one dimensional subvector or a two dimensional submatrix. Build a radar cube with matlab and the phased array system toolbox. Many radar signal processing operations in phased array system toolbox™ software correspond to processing lower dimensional subsets of the radar data cube. the subset could be a one dimensional subvector or a two dimensional submatrix. This program processes a radar datacube using functions from phased array system toolbox. the program first creates a radar datacube for a single target at 20 km distance, 30 degree azimuth and 150 m sec velocity. the program then performs beamforming, matched filtering and doppler processing to determine the target's distance and velocity. The generated radar data (3 dimensional radar data cube) is processed with the designed signal processor to verify the theoretical results with the simulated ones.
Radar Data Cube Matlab Simulink Build a radar cube with matlab and the phased array system toolbox. Many radar signal processing operations in phased array system toolbox™ software correspond to processing lower dimensional subsets of the radar data cube. the subset could be a one dimensional subvector or a two dimensional submatrix. This program processes a radar datacube using functions from phased array system toolbox. the program first creates a radar datacube for a single target at 20 km distance, 30 degree azimuth and 150 m sec velocity. the program then performs beamforming, matched filtering and doppler processing to determine the target's distance and velocity. The generated radar data (3 dimensional radar data cube) is processed with the designed signal processor to verify the theoretical results with the simulated ones.
