Power Angle Characteristics Of Synchronousmachine Pdf Electrical The mechanical power developed by the synchronous motor increases with the increase in power angle ($\delta$) and vice versa. if power angle ($\delta$) is zero, then the synchronous motor cannot develop mechanical power. It provides an equation for calculating mechanical power per phase and total power. it also describes the condition for maximum power, which occurs at a torque angle of 90 degrees electrical.

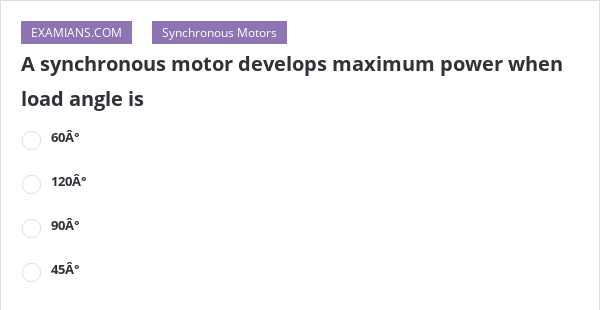

A Synchronous Motor Develops Maximum Power When Load Angle Is Examians ∴ the maximum power developed by the synchronous motor when the load angle is equal to the internal angle. the uttar pradesh power corporation limited je (civil) 2022 final result had declared on 10th august 2022. the candidates can check their uppcl je 2022 results from the direct download link. The maximum steady state power transfers occur when δ = 0. the graphical representation of p e and the load angle δ is called the power angle curve. it is widely used in power system stability studies. the power angle curve is shown below. maximum power is transferred when δ = 90⁰. Power equation of synchronous generator: the power equation of a synchronous generator relates the voltage, current, and phase angles to determine power output. maximum power output conditions: maximum power output in alternators and synchronous motors occurs when the load angle equals the impedance angle. The power developed by a synchronous motor is directly related to the angle between the rotor's magnetic field and the stator's rotating magnetic field. this angle is often referred to as the coupling angle, load angle, or torque angle, denoted by δ δ.
Synchronous Motor Power Angle Diagram Quickfield Fea Software Power equation of synchronous generator: the power equation of a synchronous generator relates the voltage, current, and phase angles to determine power output. maximum power output conditions: maximum power output in alternators and synchronous motors occurs when the load angle equals the impedance angle. The power developed by a synchronous motor is directly related to the angle between the rotor's magnetic field and the stator's rotating magnetic field. this angle is often referred to as the coupling angle, load angle, or torque angle, denoted by δ δ. A comprehensive formula sheet for synchronous machines, covering essential equations, operating principles, and key concepts to aid students and engineers in understanding synchronous motors and generators. Increasing the power angle increases the amount of power delivered from the machine until the power angle reaches 90°. if the power angle moves past 90°, the machine delivers less power as the angle increases. Since the sine function reaches its maximum value of 1 when the angle is 90 degrees (or $\pi 2$ radians), the maximum power is developed when the load angle is 90 degrees. Thus when ra is negligible, θ = 90o for maximum power developed. the corresponding torque is called pull out torque.
Synchronous Motor Power Angle Diagram Quickfield Fea Software A comprehensive formula sheet for synchronous machines, covering essential equations, operating principles, and key concepts to aid students and engineers in understanding synchronous motors and generators. Increasing the power angle increases the amount of power delivered from the machine until the power angle reaches 90°. if the power angle moves past 90°, the machine delivers less power as the angle increases. Since the sine function reaches its maximum value of 1 when the angle is 90 degrees (or $\pi 2$ radians), the maximum power is developed when the load angle is 90 degrees. Thus when ra is negligible, θ = 90o for maximum power developed. the corresponding torque is called pull out torque.
Maximum Power Developed By A Synchronous Motor Depends On Examians Since the sine function reaches its maximum value of 1 when the angle is 90 degrees (or $\pi 2$ radians), the maximum power is developed when the load angle is 90 degrees. Thus when ra is negligible, θ = 90o for maximum power developed. the corresponding torque is called pull out torque.
