Ncs 02 Phase Plane Analysis Of Nonlinear Systems 03 Pdf Under a periodic input signal a nonlinear system may not produce an output of the same frequency; moreover, it may produce an almost periodic signal. on the other hand, a stable linear system would produce an output of the same frequency. The eigenvalues of the jacobian matrix determine stability. the eigenvalues are related to the trace and determinant of jacobian, so steady state can be classified by locating tr(j) and det(j) on the trace determinant plane.
Phase Plane Analysis Pdf Nonlinear System Stability Theory The document discusses various methods for analyzing nonlinear systems, including the phase plane method, describing function method, and lyapunov stability analysis. Thus, indirect means such as phase plane based graphical tools and lyapunov type analyses have to be used to infer the qualitative behavior of a nonlinear system. Note: this method is useful for some special nonlinear systems, particularly piece wise linear systems, whose phase portraits can be constructed by piecing together the phase portraits of the related linear systems. In such a way, information concerning stability and other motion patterns of the system can be obtained. in this chapter, our objective is to gain familiarity with nonlinear systems through this simple graphical method. phase plane analysis has a number of useful properties.

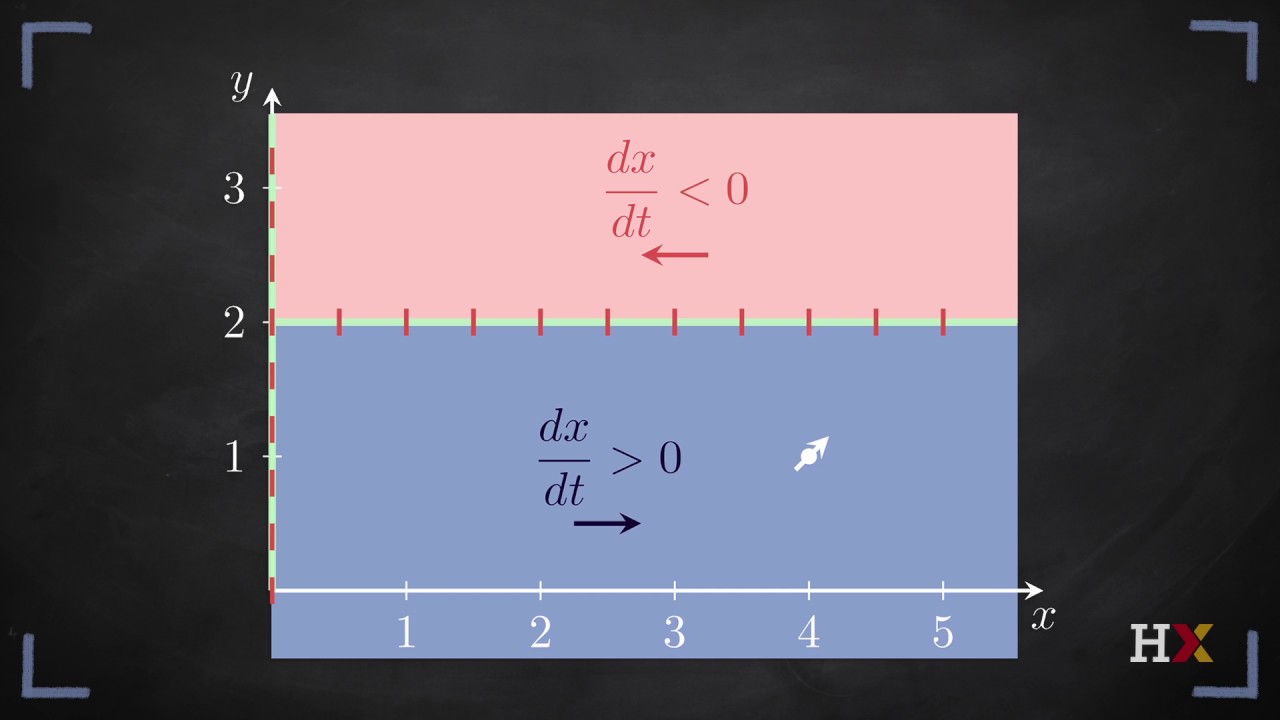

Ncs21 02 Phase Plane Analysis Of Nonlinear Systems 01 Download Note: this method is useful for some special nonlinear systems, particularly piece wise linear systems, whose phase portraits can be constructed by piecing together the phase portraits of the related linear systems. In such a way, information concerning stability and other motion patterns of the system can be obtained. in this chapter, our objective is to gain familiarity with nonlinear systems through this simple graphical method. phase plane analysis has a number of useful properties. The document discusses phase plane analysis, a graphical method for studying second order nonlinear systems. it describes phase portraits, singular points, limit cycles, and how to analyze linear and nonlinear systems using the phase plane. In practice, it’s wise to at least find the important points of the phase plane (i.e., the critical points) and to determine the general behavior of the trajectories about these points. Abstract phase plane analysis phase portraits analysis & classification of singular points. Phase plane analysis is a graphical method for studying second order systems. this chapter’s objective is to gain familiarity of the nonlinear systems through the simple graphical method.
