Peak Detector Circuit Diagram In this article i have explained about a peak detector circuit, its working principle and how to implement it in clap operated circuits for illuminating an led in response to clap sounds. In this project, we show how to build a peak detector circuit using only simple components, a diode and capacitor.

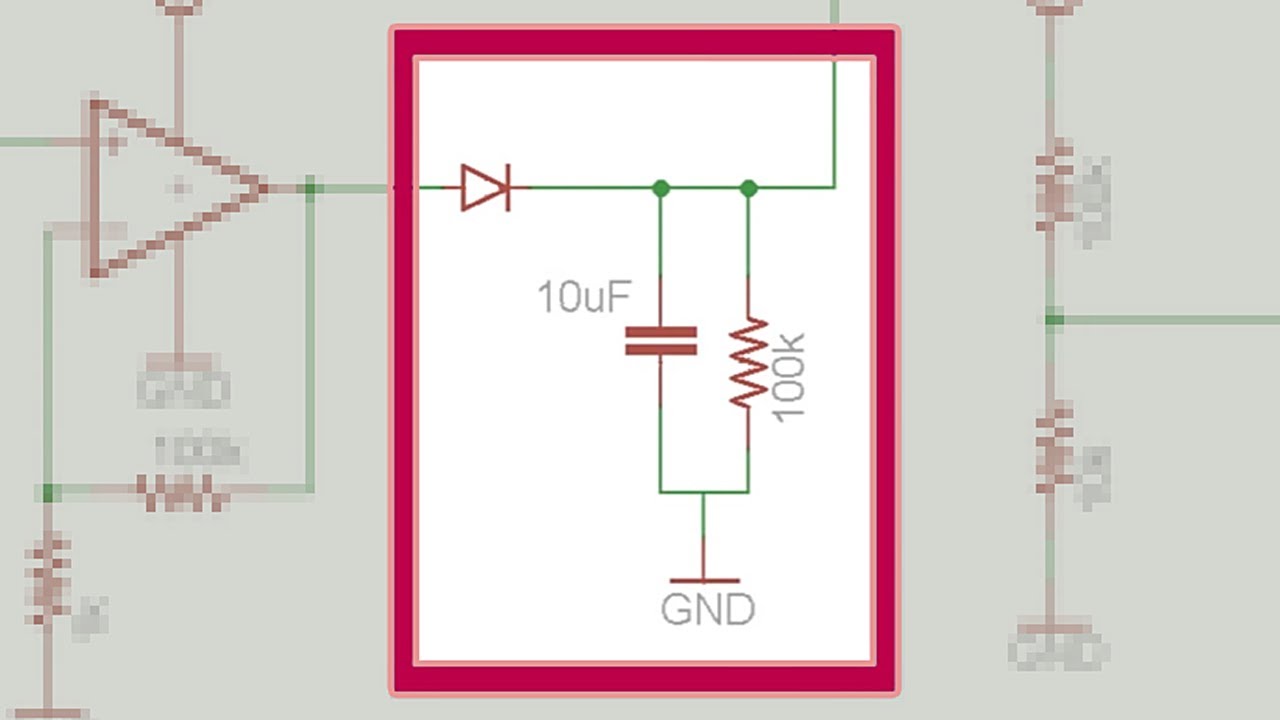

Peak Detector Circuit Tutorial Afrotechmods Fun With Electronics In this article, we'll look into what a peak detector is, how it works, and its key components, and explore its applications, with a particular focus on peak detectors using operational amplifiers (op amps). The following figure shows a simple peak detector circuit using diode and capacitor. in the positive half cycle, diode d is forward biased and capacitor c starts charging. Throughout this article, we’ve covered the fundamentals of peak detectors, their applications, and a step by step guide to building a simple peak detector circuit. A tutorial on peak detectors and an example that uses the clapper circuit from my comparator tutorial video.
Negative Peak Detector Circuit Peak Detector Circuit Zblxi Throughout this article, we’ve covered the fundamentals of peak detectors, their applications, and a step by step guide to building a simple peak detector circuit. A tutorial on peak detectors and an example that uses the clapper circuit from my comparator tutorial video. Definition and purpose of peak detectors. a peak detector is an electronic circuit designed to capture and hold the maximum (or minimum) voltage level of an input signal over a defined time interval. The peak detector circuit is generally used in a dynamically shifting waveform to locate the peak amplitude. therefore, in this diy tutorial, we will gonna show you how to make a peak detector circuit with just a few electronics components. So i present three variations of a simple detector circuit to convert the rf voltage of your transmitter's signal to a measurable dc voltage readable by any voltmeter. This is the circuit diagram of a very simple and cheap peak detector circuit. this circuit operates from 5v dc and can detect signals up to 150 khz. dual comparator ic lm393 is the heart of this circuit. first comparator ic1a is used for detecting the peak of the input signal. second comparator ic1b is wired as a buffer to increase the current.
Peak Detector Circuit Diagram Circuit Diagram Definition and purpose of peak detectors. a peak detector is an electronic circuit designed to capture and hold the maximum (or minimum) voltage level of an input signal over a defined time interval. The peak detector circuit is generally used in a dynamically shifting waveform to locate the peak amplitude. therefore, in this diy tutorial, we will gonna show you how to make a peak detector circuit with just a few electronics components. So i present three variations of a simple detector circuit to convert the rf voltage of your transmitter's signal to a measurable dc voltage readable by any voltmeter. This is the circuit diagram of a very simple and cheap peak detector circuit. this circuit operates from 5v dc and can detect signals up to 150 khz. dual comparator ic lm393 is the heart of this circuit. first comparator ic1a is used for detecting the peak of the input signal. second comparator ic1b is wired as a buffer to increase the current.
Peak Detector Circuit Diagram Circuit Diagram So i present three variations of a simple detector circuit to convert the rf voltage of your transmitter's signal to a measurable dc voltage readable by any voltmeter. This is the circuit diagram of a very simple and cheap peak detector circuit. this circuit operates from 5v dc and can detect signals up to 150 khz. dual comparator ic lm393 is the heart of this circuit. first comparator ic1a is used for detecting the peak of the input signal. second comparator ic1b is wired as a buffer to increase the current.
