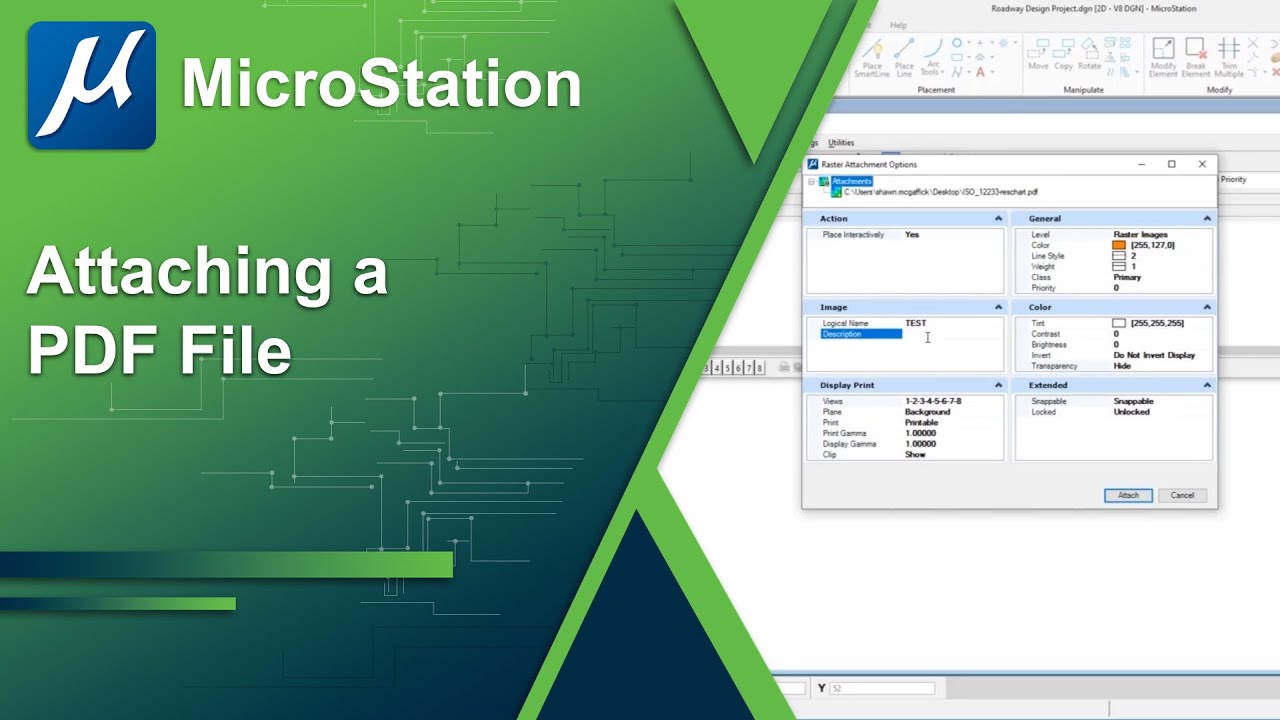

Microstation V8i Essentials Pdf Pdf You can open a single page or multiple page pdf documents in microstation, just as you open any dgn, using the file > open dialog. the pdf will open with each page as a separate model in the dgn. As delivered pdf files will be imported or merged into dgn files as raster images, this is to maintain consistency with existing workflows while this feature is in technical preview.

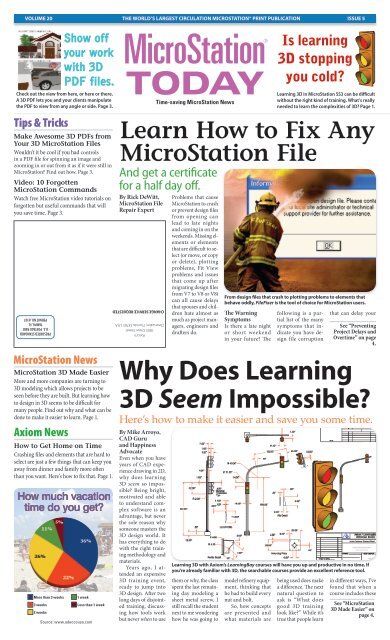

Download A Pdf Version Of This Microstation Today T.d.o.t. design division personnel have two methods available to them for producing pdf files from plan sheets in microstation. both of these are described in this document. To successfully export a microstation drawing to pdf, follow the steps outlined below. this guide will help you navigate the features of microstation to create a pdf file efficiently. Select open in the import dialog. the pdf file gets imported into the dgn. all vector elements from the pdf will display as design elements in the dgn. you can select these elements, view their properties, and modify them as needed. text elements will display as text in the dgn. Problem need to print to pdf with custom settings such as custom paper sizes, default print file names, print quality, how can this be accomplished? also, how can these settings be readily available for future print jobs?.
An Introduction To The Fundamental Functions And Capabilities Of Select open in the import dialog. the pdf file gets imported into the dgn. all vector elements from the pdf will display as design elements in the dgn. you can select these elements, view their properties, and modify them as needed. text elements will display as text in the dgn. Problem need to print to pdf with custom settings such as custom paper sizes, default print file names, print quality, how can this be accomplished? also, how can these settings be readily available for future print jobs?. This document provides guidance on creating pdf files from microstation dgn files for transportation plans in two ways: 1) using interplot organizer to batch plot and generate multi sheet pdf plan sets according to sheet type and date created. Yes, microstation allows you to export 3d models to pdf by selecting the “print to 3d” option within the print settings. this ensures that your three dimensional representations are captured correctly in the pdf output. The option to create and print a geopdf has now been enabled. You can open a single page or multiple page pdf documents in microstation, just as you open any dgn, using the file > open dialog. the pdf will open with each page as a separate model in the dgn.
Beginners In Microstation Part 8 Youtube This document provides guidance on creating pdf files from microstation dgn files for transportation plans in two ways: 1) using interplot organizer to batch plot and generate multi sheet pdf plan sets according to sheet type and date created. Yes, microstation allows you to export 3d models to pdf by selecting the “print to 3d” option within the print settings. this ensures that your three dimensional representations are captured correctly in the pdf output. The option to create and print a geopdf has now been enabled. You can open a single page or multiple page pdf documents in microstation, just as you open any dgn, using the file > open dialog. the pdf will open with each page as a separate model in the dgn.
Microstation Connect Edition How To Pdf Long Plot Youtube The option to create and print a geopdf has now been enabled. You can open a single page or multiple page pdf documents in microstation, just as you open any dgn, using the file > open dialog. the pdf will open with each page as a separate model in the dgn.
