Mv Cable Testing Format Pdf Insulator Electricity Manufactured Since on line testing does not need to remove the cable system from service, setup high voltage power supply, and wait for a steady pd to be re produced, on line testing normally has higher productivity, i.e., can test more footage per day than off line testing. In this practical video we present to you a setup for offline mv cable testing. we show how we connected the hv source to capacitive divider (1. sensor), we.

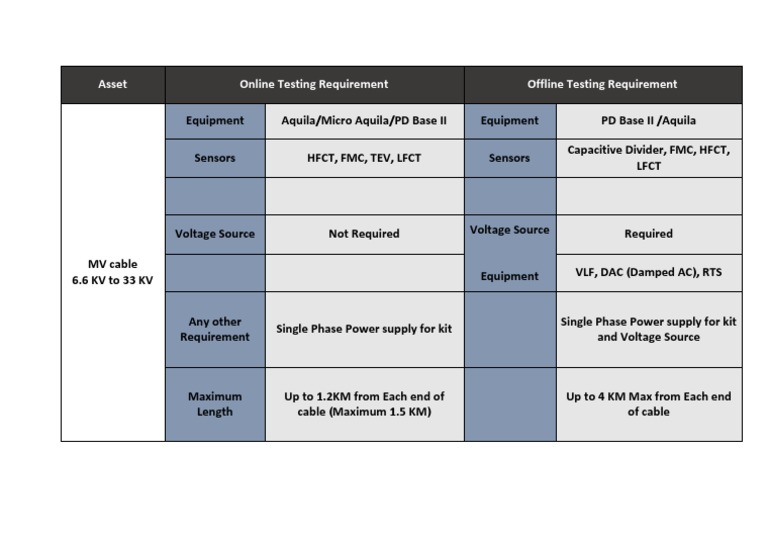

Pd Testing 33kv Cable Pdf Pdf Besides the partial discharge (pd) measurement and pd fault location, a parallel tan delta or loss factor measurement will provide sufficient information to survey the cable. You can easily define individual test specifications, including calibration and measurement settings, based on applicable international standards for specific types of pd tests and test objects, and save them as profiles for current and future use. The pd sensors, namely high frequency current transformers (hfcts), can be permanently installed to enable measurements to be performed without taking the cable system offline for the test. The document concludes that careful consideration is needed when choosing testing methods to avoid accelerating cable failures.
Mv Cable Termination And Testing Pdf The pd sensors, namely high frequency current transformers (hfcts), can be permanently installed to enable measurements to be performed without taking the cable system offline for the test. The document concludes that careful consideration is needed when choosing testing methods to avoid accelerating cable failures. During an off line measurement, the cable under test is connected to a high voltage ac source, and pd detection equipment (such as a pd sensor coupled with a measurement system) is used to monitor partial discharge activity (figure 1). Using the hfct sensor partial discharges in medium voltage cables can be detected, making the pd scan the ideal pre screening tool for offline pd measurements. resources can be allocated on those cables which have the highest priority for offline pd measurements only. Identify insulation defects and prevent cable failures with offline partial discharge cable mapping for mv and hv networks. learn how pd mapping works. We can provide you with accurate and reliable systems for pd measurements of hv equipment such as transformers, generators, switchgear, and cable systems using applied voltage in laboratory or on site testing environments.
The Case Study Of On Line Pd Measurement On In Service Mv Cable During an off line measurement, the cable under test is connected to a high voltage ac source, and pd detection equipment (such as a pd sensor coupled with a measurement system) is used to monitor partial discharge activity (figure 1). Using the hfct sensor partial discharges in medium voltage cables can be detected, making the pd scan the ideal pre screening tool for offline pd measurements. resources can be allocated on those cables which have the highest priority for offline pd measurements only. Identify insulation defects and prevent cable failures with offline partial discharge cable mapping for mv and hv networks. learn how pd mapping works. We can provide you with accurate and reliable systems for pd measurements of hv equipment such as transformers, generators, switchgear, and cable systems using applied voltage in laboratory or on site testing environments.
