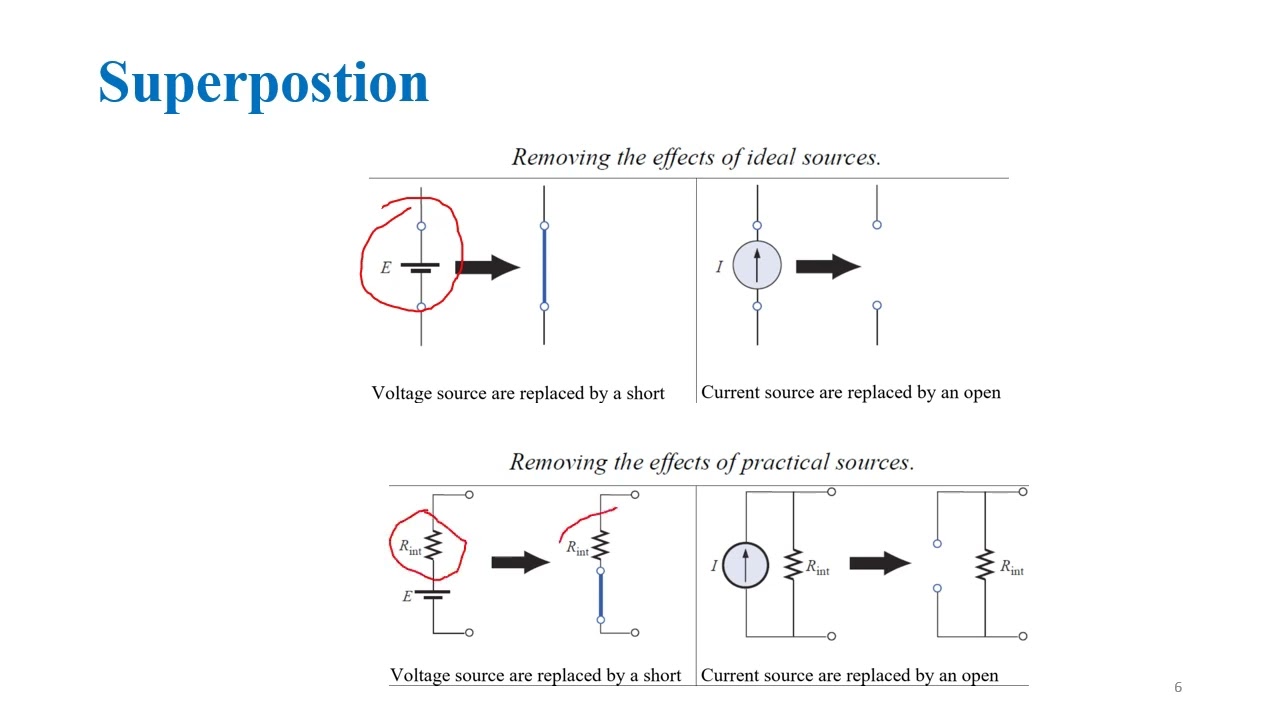

Network Theorems 1 Pdf Electrical Network Electronic Circuits Statement: in a linear network having number of voltage or current sources and resistances, the current through any branch of the network is the algebraic sum of the currents due to each of the sources when acting independently. This chapter will introduce the important fundamental theorems of network analysis. included are the superposition, thévenin’s, norton’s, and maximum power transfer theorems. Network theorems topics dc collection scholarworkspaces language english item size 5.1m dc addeddate 2016 01 23 06:12:15 identifier networktheorems identifier ark ark: 13960 t5fb90m3k ocr abbyy finereader 11.0 ppi 600 scanner internet archive html5 uploader 1.6.3. How is v related to the circuit parameters? assign node voltages with respect to a reference node. let g1 1=r1, etc. write kcl equation at each node, taking current leaving the node as positive. kcl at a : g1(v1v3) g2(v v2) i0= 0 ; kcl at b : g2(v2v1) g. l(v20) = 0 ; kcl at c : g1( v3 1) 3 3 i0= 0 : write in a matrix form: 2 4 g1 g2g2g1.

Network Theorems Km Soni Pdf This theorem was first formulated for resistive network by helmholtz and later in 1883 clearly explained by french telegraph engineer leon charles thevenin. the theorem is very useful when we desire to know the amount of power, current or voltage drop in a particular component of a given circuit. Maximum power transfer theorem: “maximum power is transferred by a circuit to a load resistance (rl), when rl is equal to thevenin’s equivalent resistance (rth) of that network.”. The paper introduces fundamental network theorems pivotal in the analysis of electrical circuits, including the superposition theorem, thévenin's theorem, norton's theorem, and the maximum power transfer theorem. The document discusses various network theorems, including superposition, thevenin, and norton theorems, which simplify circuit analysis. it emphasizes the importance of independent sources and how these theorems can be applied to linear circuits to determine voltages and currents.
