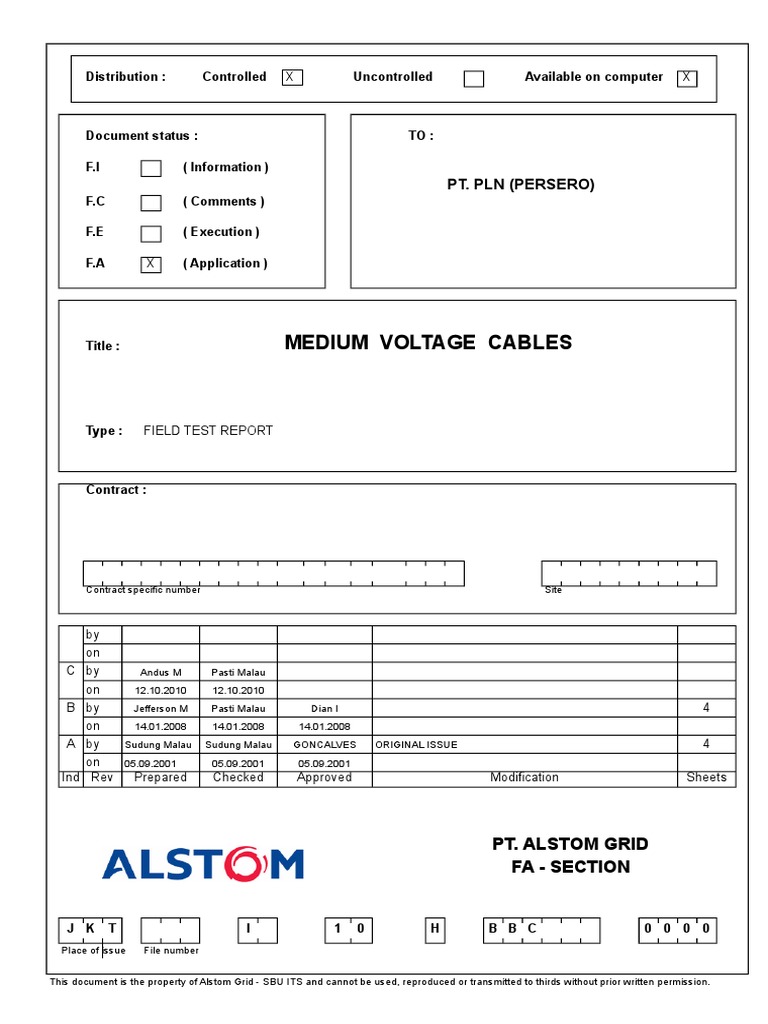

Test Report Hv Mv Cable 20kv Pdf Insulator Electricity This document summarizes the results of insulation and vlf testing of cables at inverter station is1. it records the testing equipment used, date, cable information, test voltages and durations for insulation and vlf tests. Perform a shield continuity test on each power cable. in accordance with icea, iec, ieee and other power cable consensus standards, testing can be performed by means of direct current, power frequency alternating current, or very low frequency alternating current.
Cable Factory Test Report Pdf If the cable is installed by a contractor, the test can serve as an acceptance test and assure the owner that the cable has not been damaged and should perform satisfactorily. Medium voltage (mv) cables are the backbones of power distribution systems. strictly speaking, mv cables are rated from 2kv to 35kv (phase to phase); the cables rated above 35kv are referred as sub transmission and cables over 69kv are in transmission class. Vlf diagnostic field testing of cables is common, has been since over 20 years. all three technologies shown are very well proven for testing mv cables. any vlf model from hvi can be used to perform the three tests described. This testing is done mainly on cables after installation and prior to commissioning to check whether the cable was damaged during transportation or installation process.

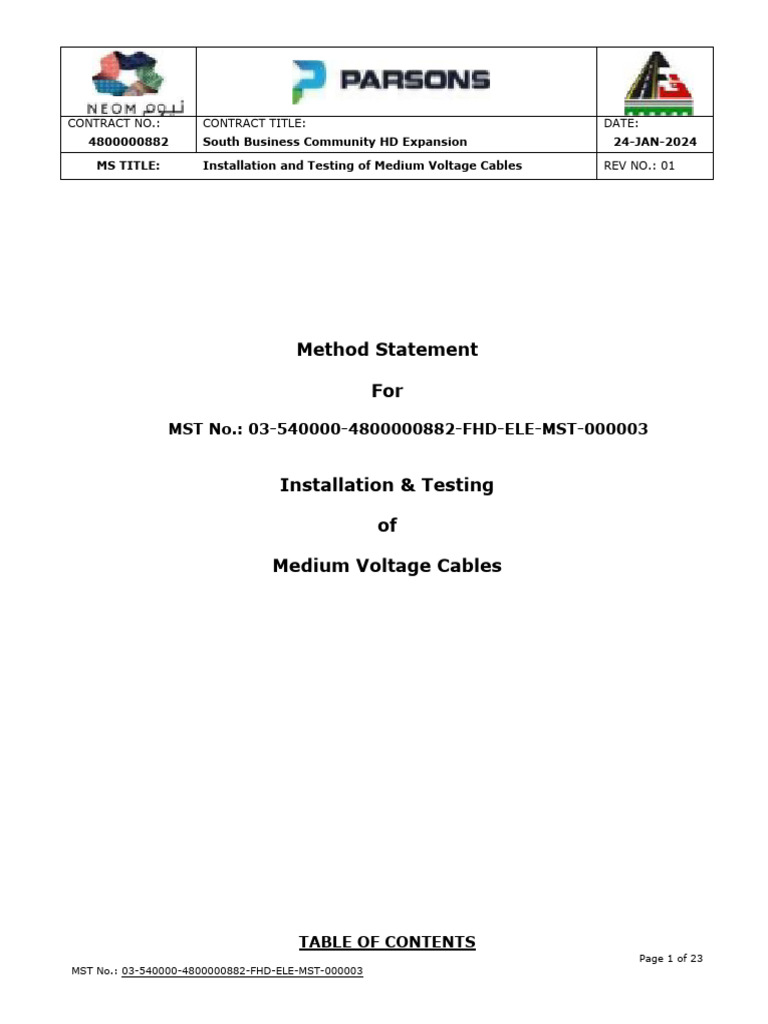

Method Statement For Installation Testing Of Mv Cables Jointing Pdf The product covered by this report is xlpe insulated, pvc overall sheathed and pvc inner sheathed round aluminium wire armoured, copper wire and tape screened, single core power cable with copper conductor. Separate samples based on the construction of the cable, production volumes and the tests required to maintain the mv type test approval are detailed in the pcr document. This test voltage is intended for cables immediately after installation, and not for cables that have been in service. guidance on reduced voltage levels is given in the annex at the end of this document. Per ieee std 400 ieee guide for field testing and evaluation of the insulation of shielded power cable systems rated 5 kv and above, the recommended field test procedures for medium voltage cables (extruded dielectric) are:.
