Module 4 Compound Trusses Solutions Pdf Module 4 compound trusses solutions free download as pdf file (.pdf) or read online for free. The howe roof truss shown carries the given loads. t he wind loads are perpendicular to the inclined members. determine the forces acting on e ach members bd, be and ce and indicate if tension or compression. use the metho d of section. ans. ce = 9754.92 lbs (t); bd = 6432.52 lbs (c); be = 6154.1 lbs (c).
Trade Of Metal Fabrication Module 4 Structural Steel Fabrication Unit A truss is a structure formed by combining linear structural members in triangular patterns. the key structural characteristic of a truss is that the internal loads it carries are exclusively or primarily of an axial nature. Truss analysis using the method of joints is greatly simplified if we can first identify those members which support no loading. these zero force members are used to increase the stability of the truss during construction and to provide added support if the loading is changed. Document midterm plate 2 compound trusses and complex trusses.pdf, subject mechanical engineering, from university of perpetual help system dalta las piñas, length: 3 pages, preview: midterm plate 2 compound and complex trusses solve the following problems with complete solutions and diagrams. Method of sections provides a short cut for solution of forces in a few specified bars. simplifications you can reduce computational e↵ort by taking advantage of symmetries (when they exist) and removing zero force members.
Module 1 Les 4 Analysis Of Truss Download Free Pdf Truss Document midterm plate 2 compound trusses and complex trusses.pdf, subject mechanical engineering, from university of perpetual help system dalta las piñas, length: 3 pages, preview: midterm plate 2 compound and complex trusses solve the following problems with complete solutions and diagrams. Method of sections provides a short cut for solution of forces in a few specified bars. simplifications you can reduce computational e↵ort by taking advantage of symmetries (when they exist) and removing zero force members. Civil department | iit bombay. Compound trusses compound trusses problems and solutions structural analysis example 4.10 determine the force in each member of the compound truss shown in fig. 4.25 (a). solution static determinacy the […]. Considering the diagram shown for the right side of the truss, the sum of the moments about joint 3 is not zero. the three member forces, as well as the support reactions at joint 3, all pass through the joint resulting in a zero moment. In this course packet, we will discuss how to built a truss, that is rigid, to create a structure that can resist change in shape. also, we will discuss the nature of their support and reaction for us to determine the loads in each member of the truss.
Solution Module 13 Trusses Sections Studypool Civil department | iit bombay. Compound trusses compound trusses problems and solutions structural analysis example 4.10 determine the force in each member of the compound truss shown in fig. 4.25 (a). solution static determinacy the […]. Considering the diagram shown for the right side of the truss, the sum of the moments about joint 3 is not zero. the three member forces, as well as the support reactions at joint 3, all pass through the joint resulting in a zero moment. In this course packet, we will discuss how to built a truss, that is rigid, to create a structure that can resist change in shape. also, we will discuss the nature of their support and reaction for us to determine the loads in each member of the truss.
Trusses Pdf Considering the diagram shown for the right side of the truss, the sum of the moments about joint 3 is not zero. the three member forces, as well as the support reactions at joint 3, all pass through the joint resulting in a zero moment. In this course packet, we will discuss how to built a truss, that is rigid, to create a structure that can resist change in shape. also, we will discuss the nature of their support and reaction for us to determine the loads in each member of the truss.

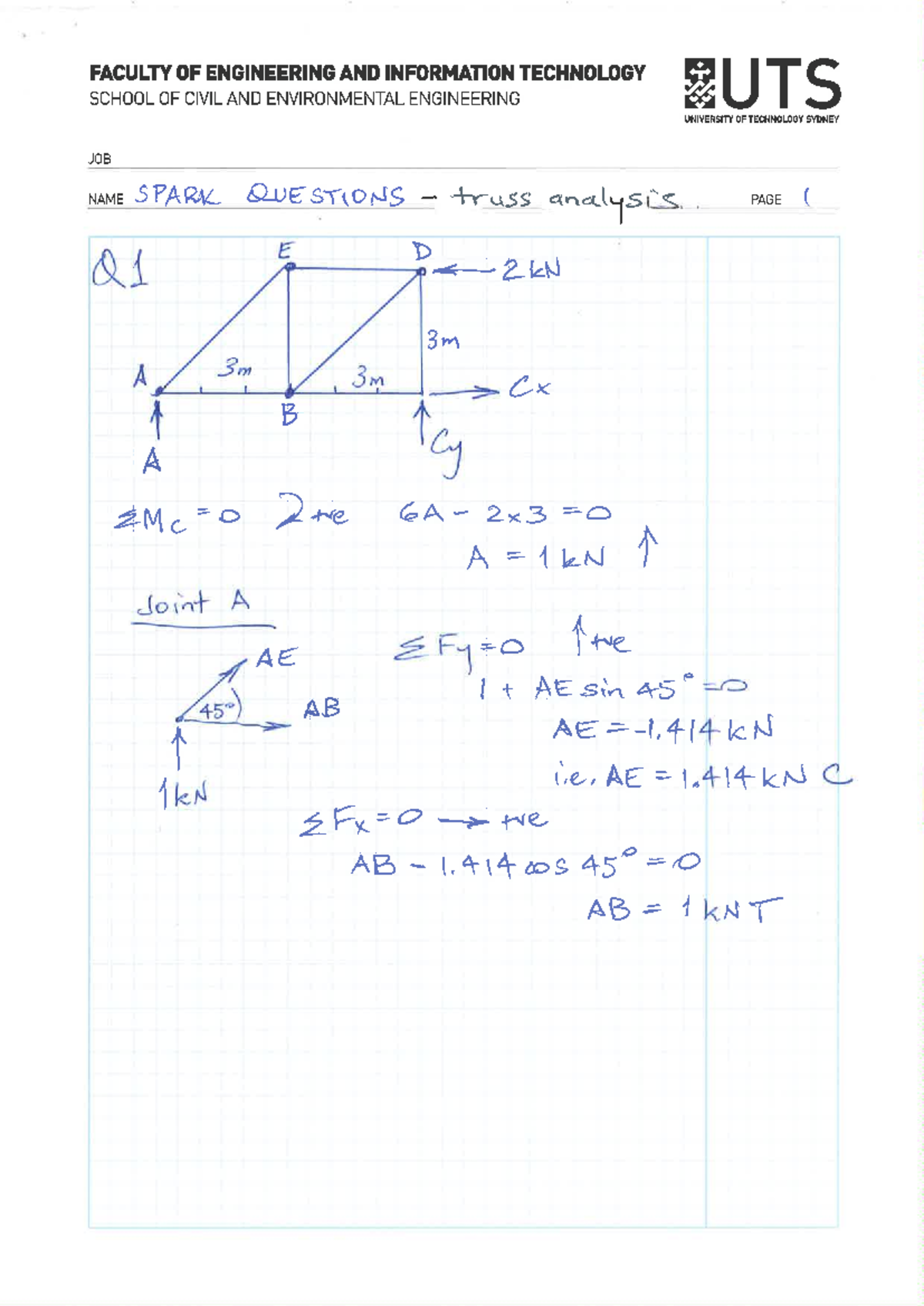

9 Example Solutions On Trusses 048321 Studocu
