Microstation V8i Essentials Pdf Engineer Engineering Select or fence the element (s). select the mirror tool (drawing > home > manipulate ). enter a data point. if mirror about is set to horizontal or vertical, the element (s) are mirrored. if mirror about is set to line, this data point defines one point on the mirroring line. Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on .
Microstation V8i Essentials Pdf Pdf We've taken to switching off the mirrored dimensions and adding them on to the sheet file as a workaround. with all the amazing stuff microstation has been able to do over the years you think there would be a simple fix. Mirroring objects in microstation is a vital technique that can enhance workflow efficiency and improve design aesthetics. this guide provides a comprehensive breakdown of the mirroring process, ensuring you can execute it seamlessly. To mirror an element (s) select or fence the element (s). select the mirror tool. enter a data point. if mirror about is set to horizontal or vertical, the element (s) are mirrored. if mirror about is set to line, this data point defines one point on the mirroring line. Tip: choosing mirror from the reset pop up menu selects the mirror tool. when the tool is selected in this manner, the mirror operation affects all selected elements.

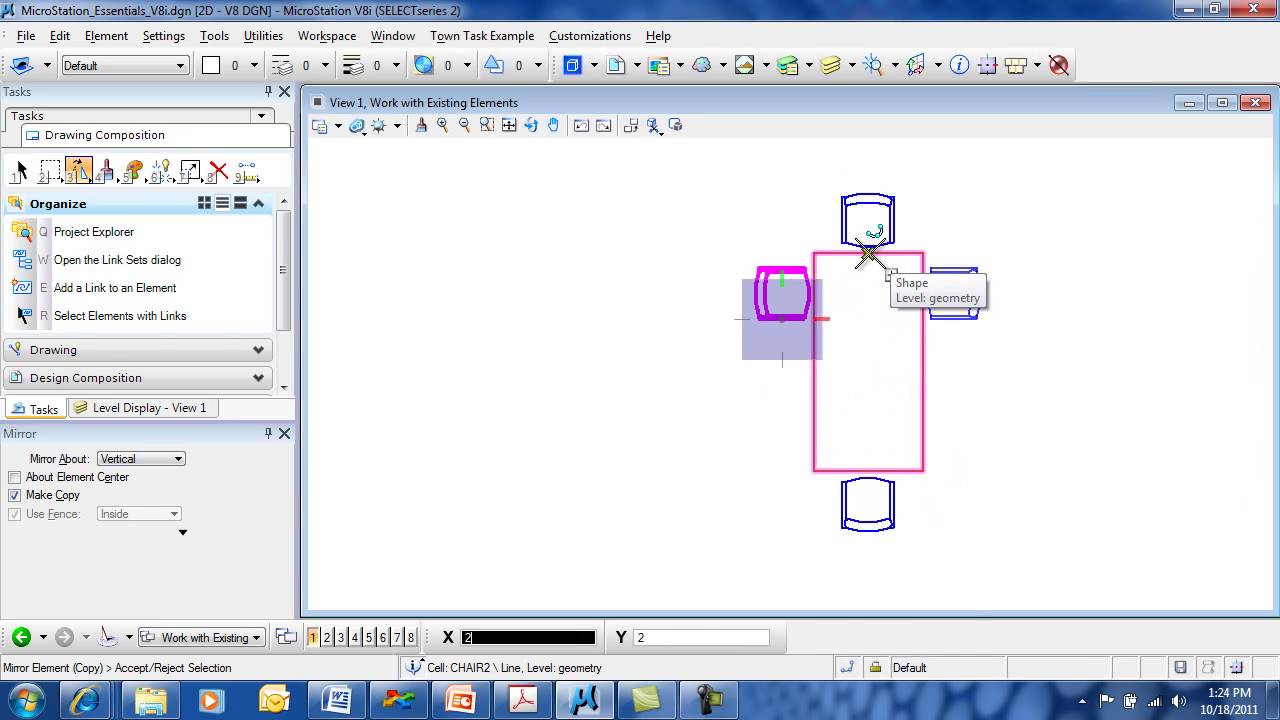

Room Essentials Mirror To mirror an element (s) select or fence the element (s). select the mirror tool. enter a data point. if mirror about is set to horizontal or vertical, the element (s) are mirrored. if mirror about is set to line, this data point defines one point on the mirroring line. Tip: choosing mirror from the reset pop up menu selects the mirror tool. when the tool is selected in this manner, the mirror operation affects all selected elements. The mirror tool is used when you want to mirror elements about the horizontal, the vertical, or a user defined line. the tool settings offer additional options so you can make a copy of the original element or mirror the elements about their own centers. I havent used microstation in a while, but when i went to work in it this morning, i noticed a weird issue with mirror. when i select anything, i can move or rotate, but cannot mirror. Mirroring elements or groups of elements based upon a horizontal, vertical, or user defined line is a commonly used workflow in a design. in this video, learn how to mirror elements based on. Click the mirror icon ( drawing > attach > raster ). choose a data point on the image to mirror. note: only file formats which support a transformation matrix will maintain mirroring operations stored in the transformation matrix.
Pin On Victorian Renovation The mirror tool is used when you want to mirror elements about the horizontal, the vertical, or a user defined line. the tool settings offer additional options so you can make a copy of the original element or mirror the elements about their own centers. I havent used microstation in a while, but when i went to work in it this morning, i noticed a weird issue with mirror. when i select anything, i can move or rotate, but cannot mirror. Mirroring elements or groups of elements based upon a horizontal, vertical, or user defined line is a commonly used workflow in a design. in this video, learn how to mirror elements based on. Click the mirror icon ( drawing > attach > raster ). choose a data point on the image to mirror. note: only file formats which support a transformation matrix will maintain mirroring operations stored in the transformation matrix.
