Microstation Dimension Style Pdf Microstation dimension styles allow you to save dimension settings by name. this allows for greater unity between groups of dimensions in the file, as several different styles can be used for various models or portions of a model. Microstation dimension style free download as pdf file (.pdf), text file (.txt) or view presentation slides online. ss.

Frequent Question How To Match Dimension Style In Microstation Caddikt The following table describes how to work with the dimension styles so that they are compatible with dwg format. the dgn–specific options mentioned in the table are disabled in dwg workmode. A dgnlib is just a renamed dgn file that is used to store standards like standard levels, text styles, dimension styles, and a number of other things settings that you want to share with others. Dimension styles can be created, customized, and saved for easy recall. changes made to a dimension style propagate to all dimensions previously set with the dimension style in the dgn file. To modify multiple styles simultaneously: select the styles, modify the settings, and choose save all. opens the dimension style import dialog, which lets you select a dgn file or library to import. updates the dimension styles in the dgn file to reflect changes in a configured dgn library.

More Annotation Tools Dimension Cadnotes Dimension styles can be created, customized, and saved for easy recall. changes made to a dimension style propagate to all dimensions previously set with the dimension style in the dgn file. To modify multiple styles simultaneously: select the styles, modify the settings, and choose save all. opens the dimension style import dialog, which lets you select a dgn file or library to import. updates the dimension styles in the dgn file to reflect changes in a configured dgn library. I'm back with another useful utility that i would like to share with the community. this dimension style utility will create dimension styles based off your active scale, this is especially helpful when your working with details. this macro will not change the annotation scale of your design file. Controls the location of dimension text: • automatic — dimension text is automatically placed according to the justification setting (in the dimension styles dialog, text tab). Dimension styles in microstation contribute to consistent and efficient dimensioning by allowing users to save and apply predefined attribute settings across different elements, ensuring uniformity in dimension appearance. A number of settings carried over from previous versions have been grouped together under the four main tabs of the new dimension style dialog box, while others have been moved to sub categories in the advanced tab.

Microstation Tip Modify Dimension Text Envisioncad I'm back with another useful utility that i would like to share with the community. this dimension style utility will create dimension styles based off your active scale, this is especially helpful when your working with details. this macro will not change the annotation scale of your design file. Controls the location of dimension text: • automatic — dimension text is automatically placed according to the justification setting (in the dimension styles dialog, text tab). Dimension styles in microstation contribute to consistent and efficient dimensioning by allowing users to save and apply predefined attribute settings across different elements, ensuring uniformity in dimension appearance. A number of settings carried over from previous versions have been grouped together under the four main tabs of the new dimension style dialog box, while others have been moved to sub categories in the advanced tab.

Engarc R Autocad Microstation Dimension Nomenclature Dimension styles in microstation contribute to consistent and efficient dimensioning by allowing users to save and apply predefined attribute settings across different elements, ensuring uniformity in dimension appearance. A number of settings carried over from previous versions have been grouped together under the four main tabs of the new dimension style dialog box, while others have been moved to sub categories in the advanced tab.

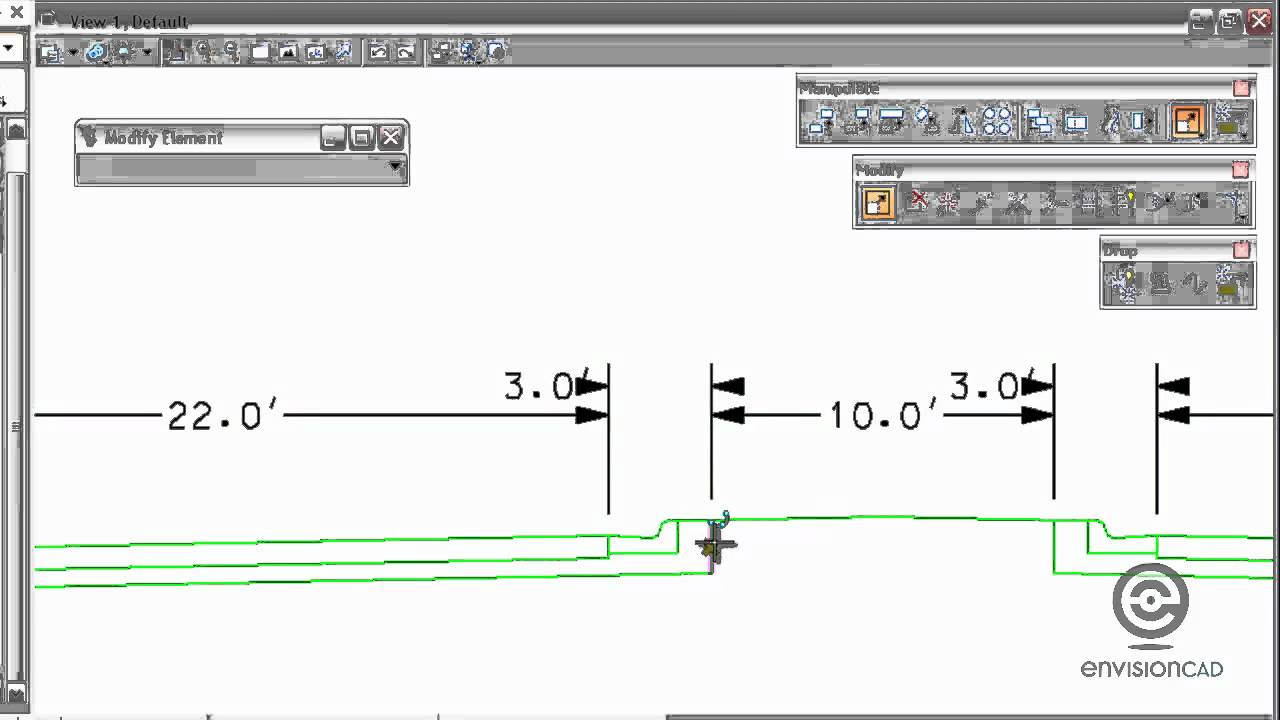

Center Dimension Text Microstation At James Silvers Blog
