Method Of Section For Truss Pdf Draw a free body diagram (fbd) of the entire truss cut loose from its supports and find the support reactions using the equations of equilibrium (we will see that for some truss structures this step is not always necessary). Method of sections solved examples free download as pdf file (.pdf), text file (.txt) or view presentation slides online. the document contains a series of engineering mechanics problems focused on the method of sections for analyzing truss structures.
Truss Analysis Method Of Sections Pdf Truss Force A truss is a structure formed by combining linear structural members in triangular patterns. the key structural characteristic of a truss is that the internal loads it carries are exclusively or primarily of an axial nature. Solution proceeds by cutting fbds of either joints or sections of the truss. member forces are shown as horizontal and vertical force components at each cut section. Learning objectives . to employ the method of sections to evaluate the axial force carried by selected members in a truss. . to do an engineering estimate of the load in select members of a truss. In choosing a section of the truss, we note that, in general, not more than three members whose forces are unknown should be cut, since there are only three available independent equilibrium equations. the method of sections will now be illustrated for the truss in fig.(6 8 a).
Truss Pdf Truss Structural Engineering Learning objectives . to employ the method of sections to evaluate the axial force carried by selected members in a truss. . to do an engineering estimate of the load in select members of a truss. In choosing a section of the truss, we note that, in general, not more than three members whose forces are unknown should be cut, since there are only three available independent equilibrium equations. the method of sections will now be illustrated for the truss in fig.(6 8 a). Using method of sections, determine the force in members identified (cd, ci, ei and hi) for the trusses shown. Method of joints vs method of sections use method of joints when you need to know element forces throughout the structure. two equations of equilibrium per joint. The method of sections involves analytically cutting the truss into sections and solving for static equilibrium for each section. The cremona diagram is a graphical method for determining bar forces in a truss. applying the cremona diagram requires that the support forces and the external forces are known or that they have been determined beforehand using the method of joints.

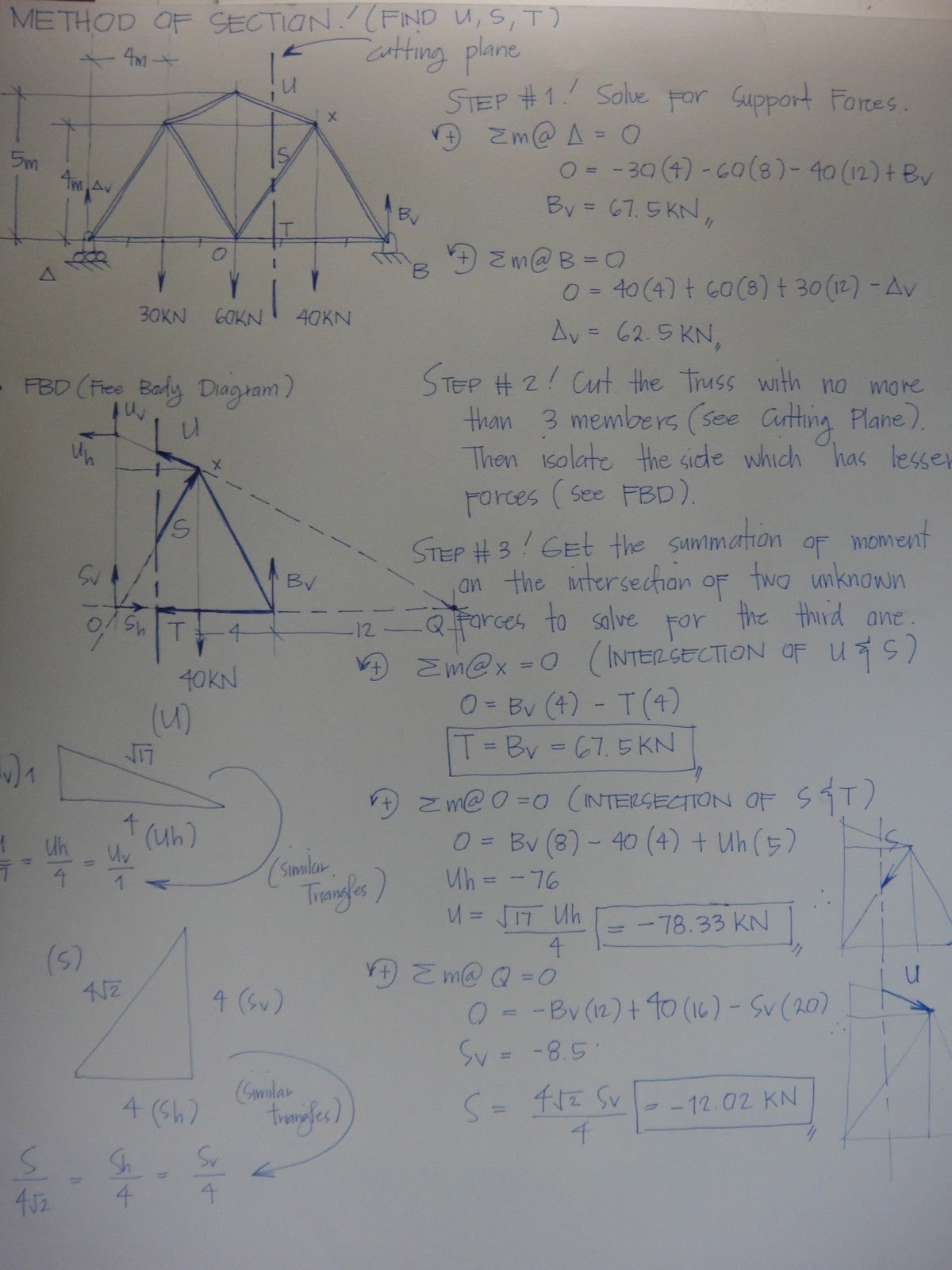

Me A 2013 Mechanics Method Of Section Truss Using method of sections, determine the force in members identified (cd, ci, ei and hi) for the trusses shown. Method of joints vs method of sections use method of joints when you need to know element forces throughout the structure. two equations of equilibrium per joint. The method of sections involves analytically cutting the truss into sections and solving for static equilibrium for each section. The cremona diagram is a graphical method for determining bar forces in a truss. applying the cremona diagram requires that the support forces and the external forces are known or that they have been determined beforehand using the method of joints.
